Service Manual_AVA1_ENG-20220922_I 77

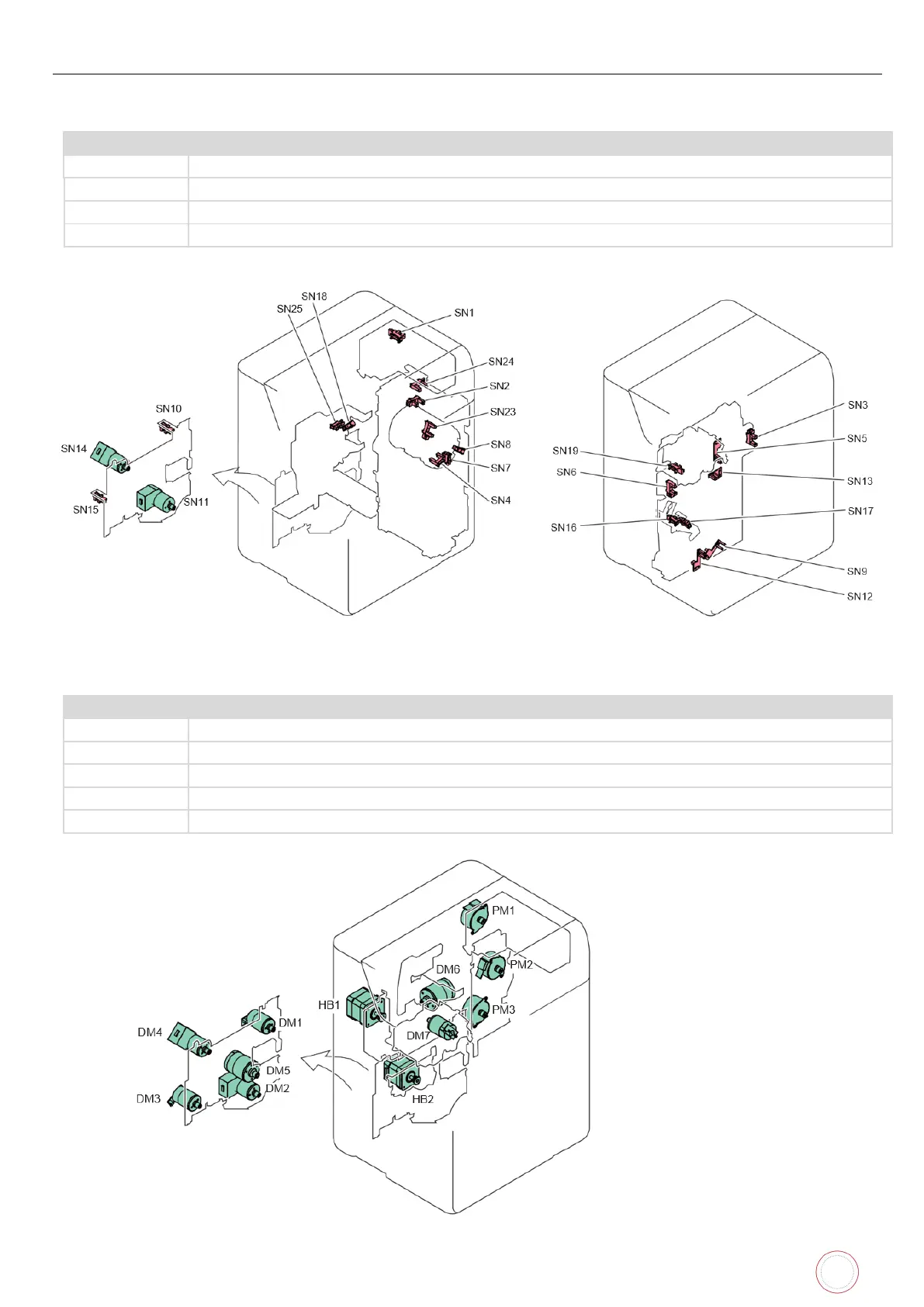

SENSORS-MOTORS LOCATION DRAWINGS
Sensors
Product code
Product description
CP011848
PCB ASSY SHORT SENSOR (SN13)
CP011854
OPTICAL SENSOR 2 (SN2 SN3 SN4 SN6 SN23 SN24)
CP011855
OPTICAL SENSOR 3(SN1, SN7, SN8, SN10, SN15, SN16, SN17, SN18, SN19, SN25)
CP011847
OPTICAL SENSOR (SN5 SN9 SN12)
Motors
Product code
Product description
CP011849
PULSE MOTOR (HB1 HB2)
CP011850
DC MOTOR (DM1 DM3 DM7)
CP011851
DC MOTOR 2 (DM2 DM4)
CP011852
DC MOTOR 3 (DM5 DM6)
CP011853
PULSE MOTOR 2 (PM1 PM2 PM3)
