Service Manual_AVA1_ENG-20220922_I 243

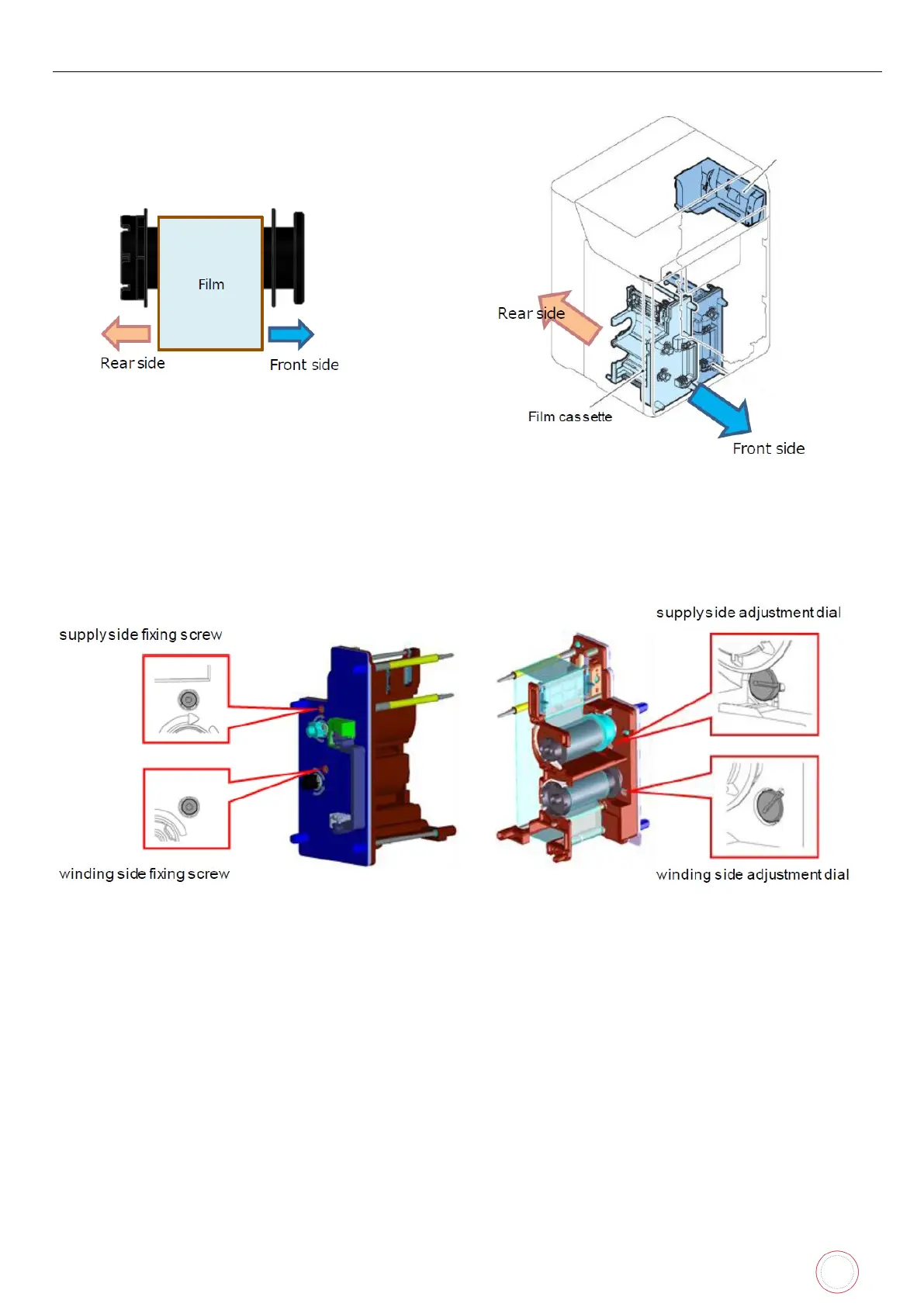

Film cassette film tilt adjustment method
1. After printing about 20 sheets, remove the film cassette from the printer.
Check the direction of the film.
2. Loosen the fixing screw one turn, and then turn the adjustment dial to adjust.
Before adjustment, be sure to loosen the fixing screws.
If the adjustment dial is turned without loosening the screws, the internal parts may be
damaged. Do not loosen the fixing screw too much.
To Next Page
