Service Manual_AVA1_ENG-20220922_I 132

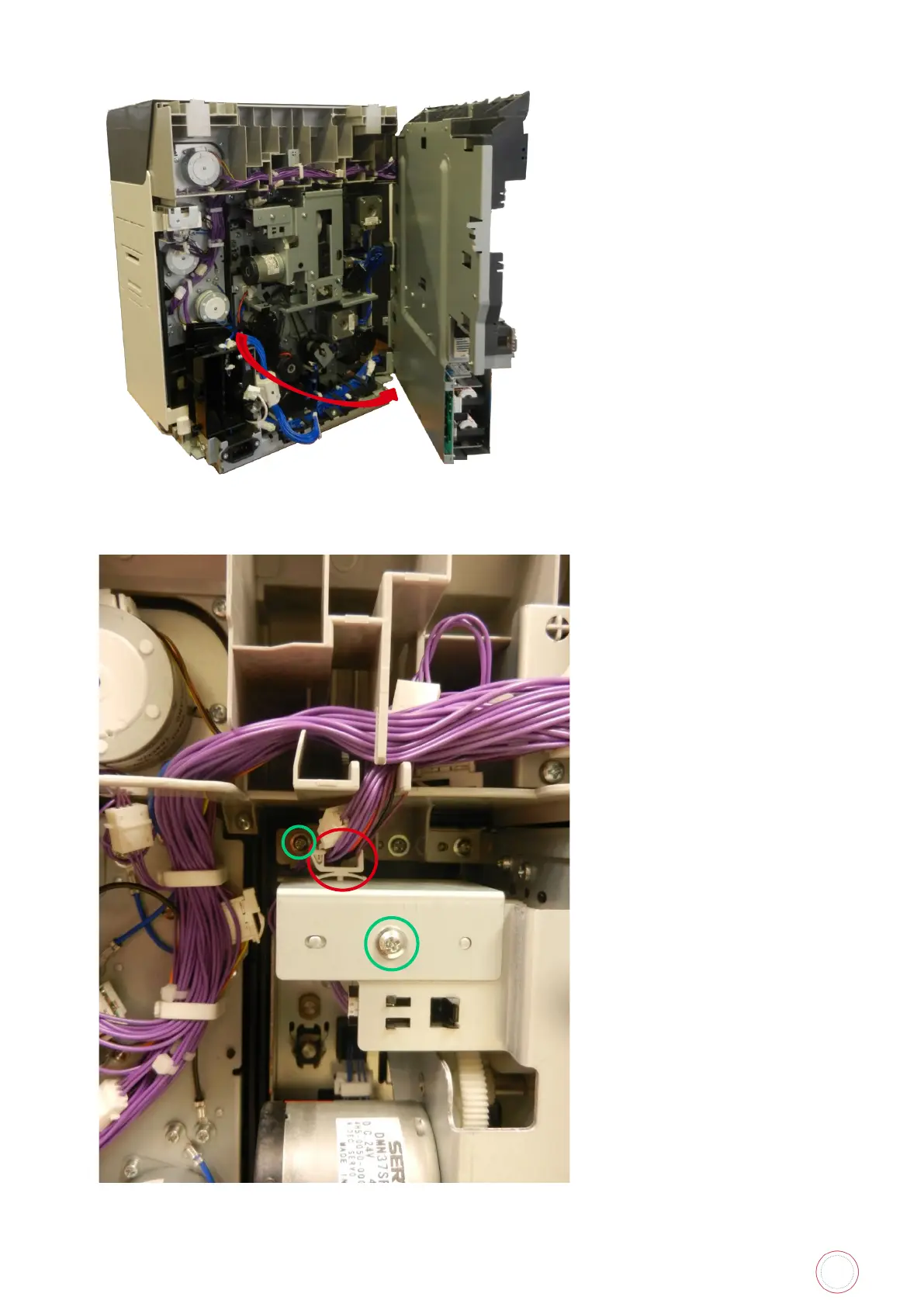

6. Open the rear door.

7. Undo the cables from the cable holder. Remove the two screws.
