Service Manual_AVA1_ENG-20220922_I 151

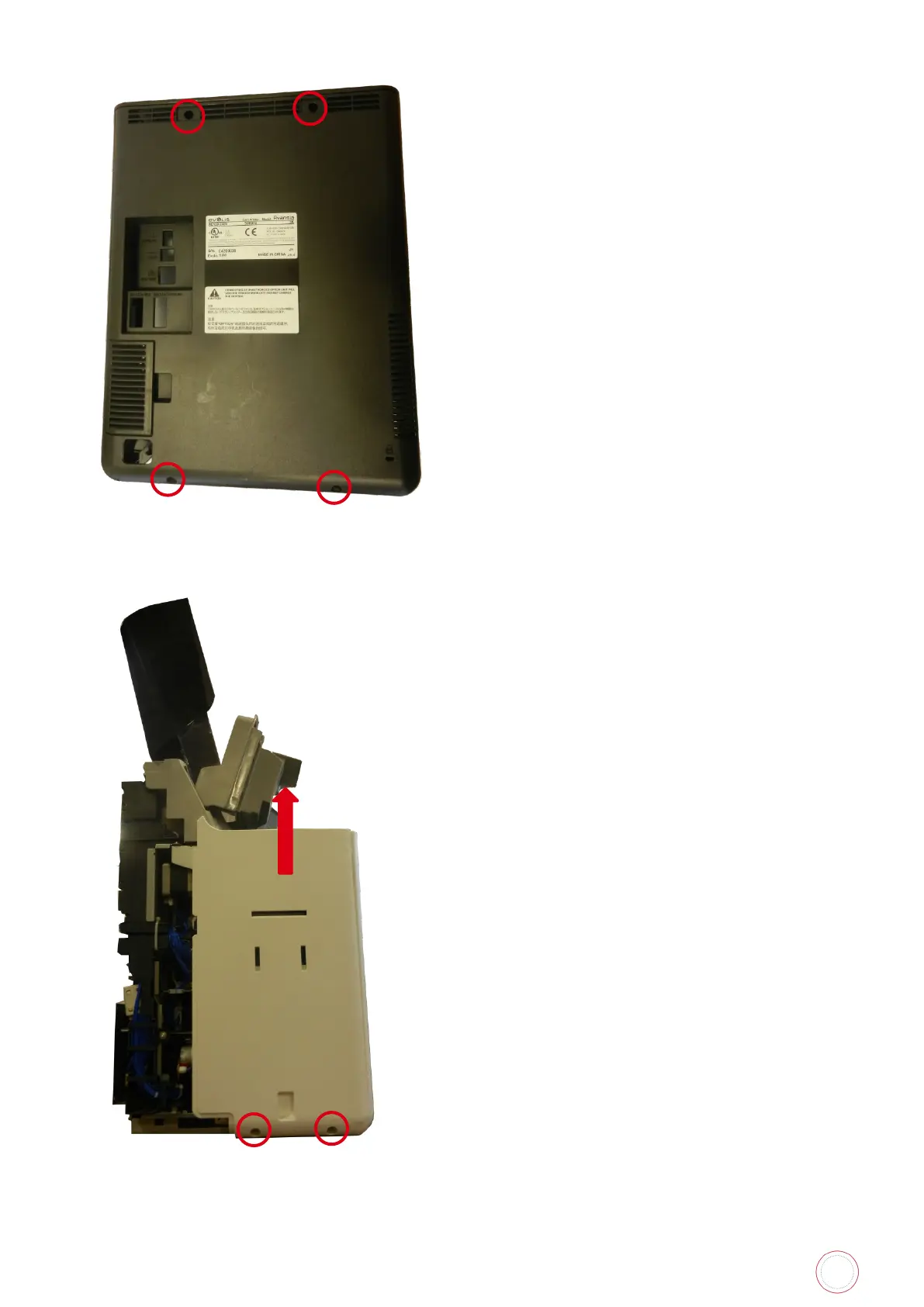

3. Remove the four screws.

4. Remove the two screws and lift the left front side cover to remove it.
