Evolis Avansia - Page 175

To Next Page

To Previous Page

Service Manual_AVA1_ENG-20220922_I 175

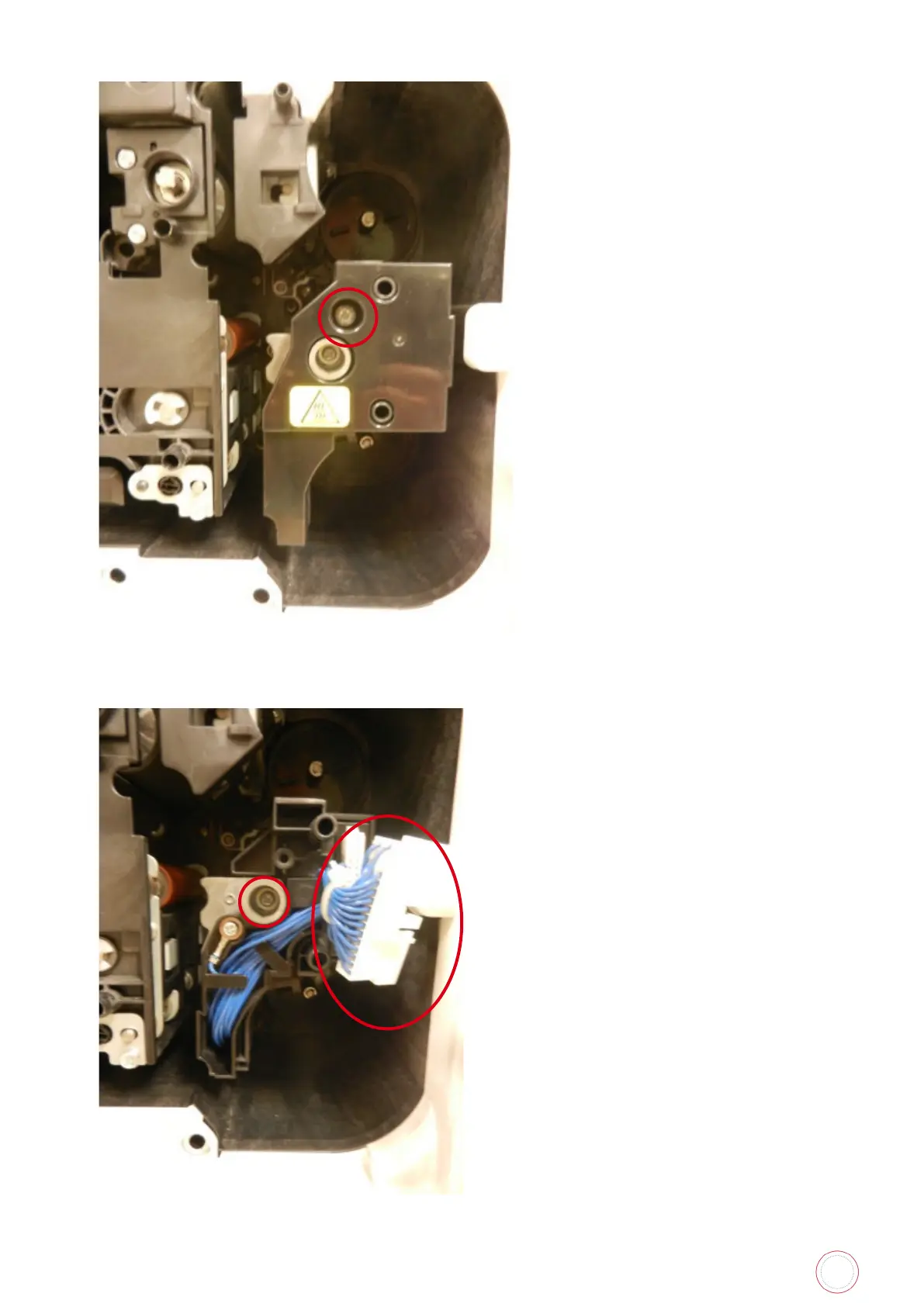

2. Remove the screw of the print head cover.

3. Unplug the connector and remove the screw securing the print head. Then, remove the print head.
