Evolis Avansia Service Manual

Service Manual_AVA1_ENG-20220922_I 235
Same settings exist for both card side Adjustment >> Position >> Color Shift HRZ >> Shift HRZ
Back >> Print Test D-B. Each side should be set by application of the following steps.

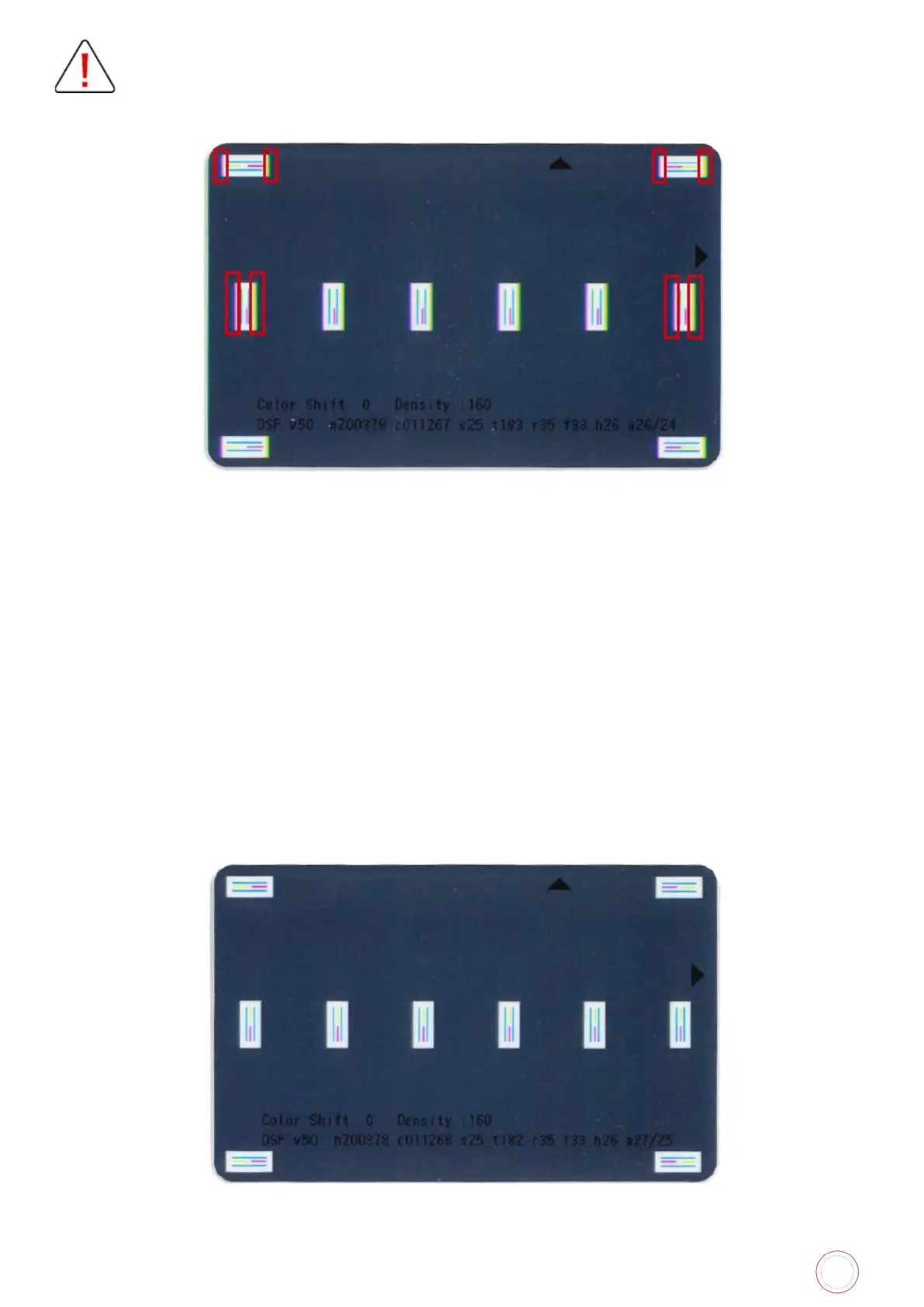

On this example, we can notice magenta on left hand side of the areas and yellow on right hand side of
the areas. Also, the 2 Yellow and Magenta short lines are not lined up as it is supposed to.
On this example:
- Magenta panel shift towards right hand side => decrease M Shift Hrz value
- Yellow panel shifts towards left hand side => increase Y Shift Hrz value.
As same settings are available for both card sides, possible settings are the following:
- Y Shift Hrz-F: sets Yellow panel position for card front
- M Shift Hrz-F: sets Magenta panel position for card front
- C Shift Hrz-F: sets Cyan panel position for card front
- Y Shift Hrz-B: sets Yellow panel position for card back
- M Shift Hrz-B: sets Magenta panel position for card back
- C Shift Hrz-B: sets Cyan panel position for card back
Once fixed, Test card should be as following:

Evolis Avansia Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Polycarbonate, PVC, PVC Composite
Print technology	Dye-sublimation/Resin Thermal transfer
Print speed (color)	144 card/h
Card thickness (min)	0.76 mm
Duplex print speed (color)	96 card/h
Display	LCD
Lamination	-
Certification	CE, FCC, UL, IEC RoHS
Product color	Black, White
Internal memory	64 MB
Cable lock slot type	Kensington
Total input capacity	250 sheets
Wi-Fi	No
Security algorithms	IPSEC
Ethernet interface type	Fast Ethernet
Bundled software	cardPresso XXS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	297 mm
Width	340 mm
Height	436 mm
Weight	20000 g
