Evolis Avansia Service Manual

Service Manual_AVA1_ENG-20220922_I 234

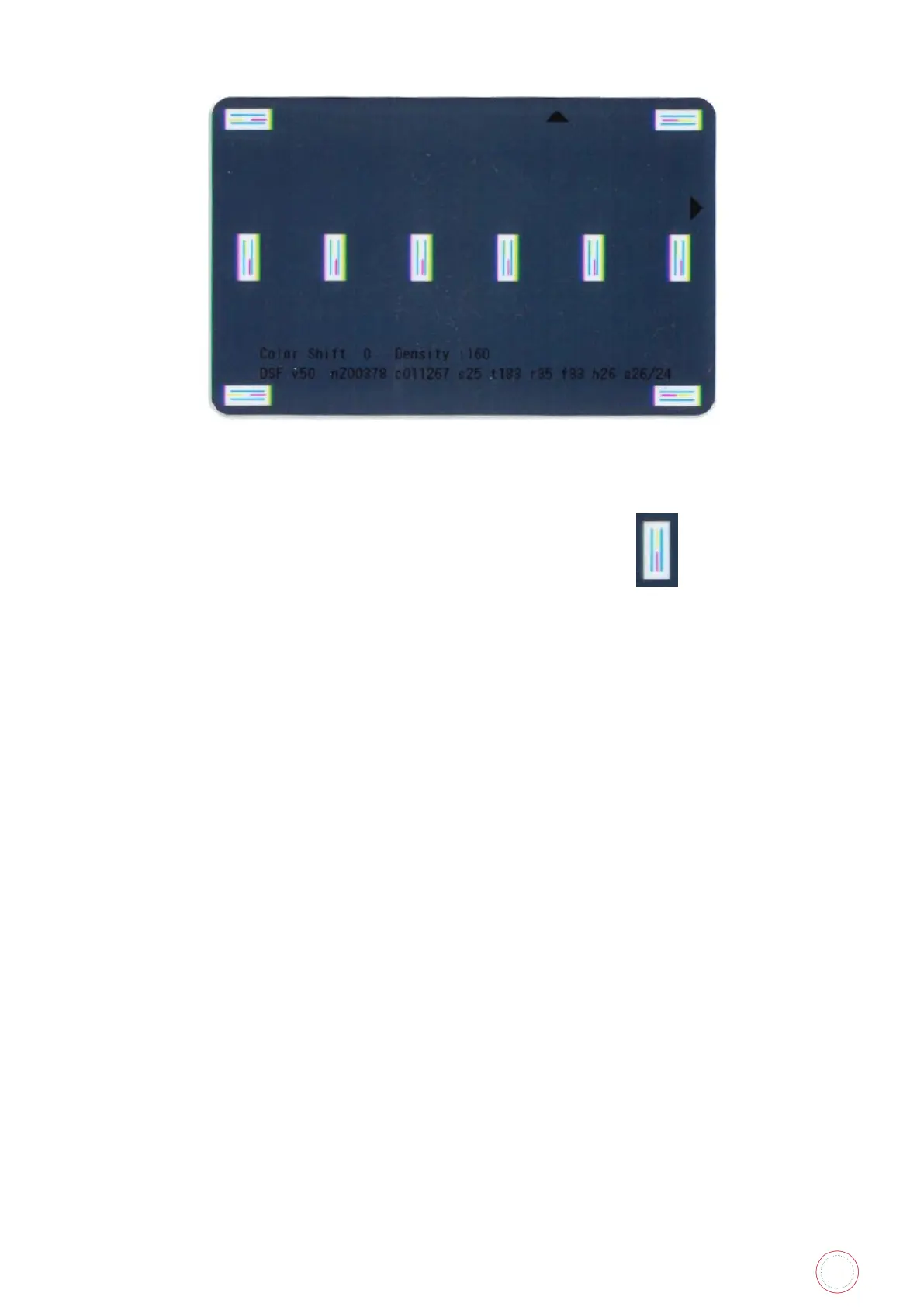

This card is used to check horizontal color shifting. Here is how to use it.
Goal of this card is to check the 6 areas with parallel lines printed in different colors (hence with different
panels). Each rectangle area should be perfect white and contain from left to right:
- 1 long blue line (C panel)
- 1 short yellow line (Y panel) and 1 short magenta line (M panel).
These 2 short lines should be printed with same alignment.
- 1 long blue line (C panel)

Evolis Avansia Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Polycarbonate, PVC, PVC Composite
Print technology	Dye-sublimation/Resin Thermal transfer
Print speed (color)	144 card/h
Card thickness (min)	0.76 mm
Duplex print speed (color)	96 card/h
Display	LCD
Lamination	-
Certification	CE, FCC, UL, IEC RoHS
Product color	Black, White
Internal memory	64 MB
Cable lock slot type	Kensington
Total input capacity	250 sheets
Wi-Fi	No
Security algorithms	IPSEC
Ethernet interface type	Fast Ethernet
Bundled software	cardPresso XXS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	297 mm
Width	340 mm
Height	436 mm
Weight	20000 g
