Physical Interfaces and LEDs
36 FTBx-88000 Series
FTBx-88800
FTBx-88800

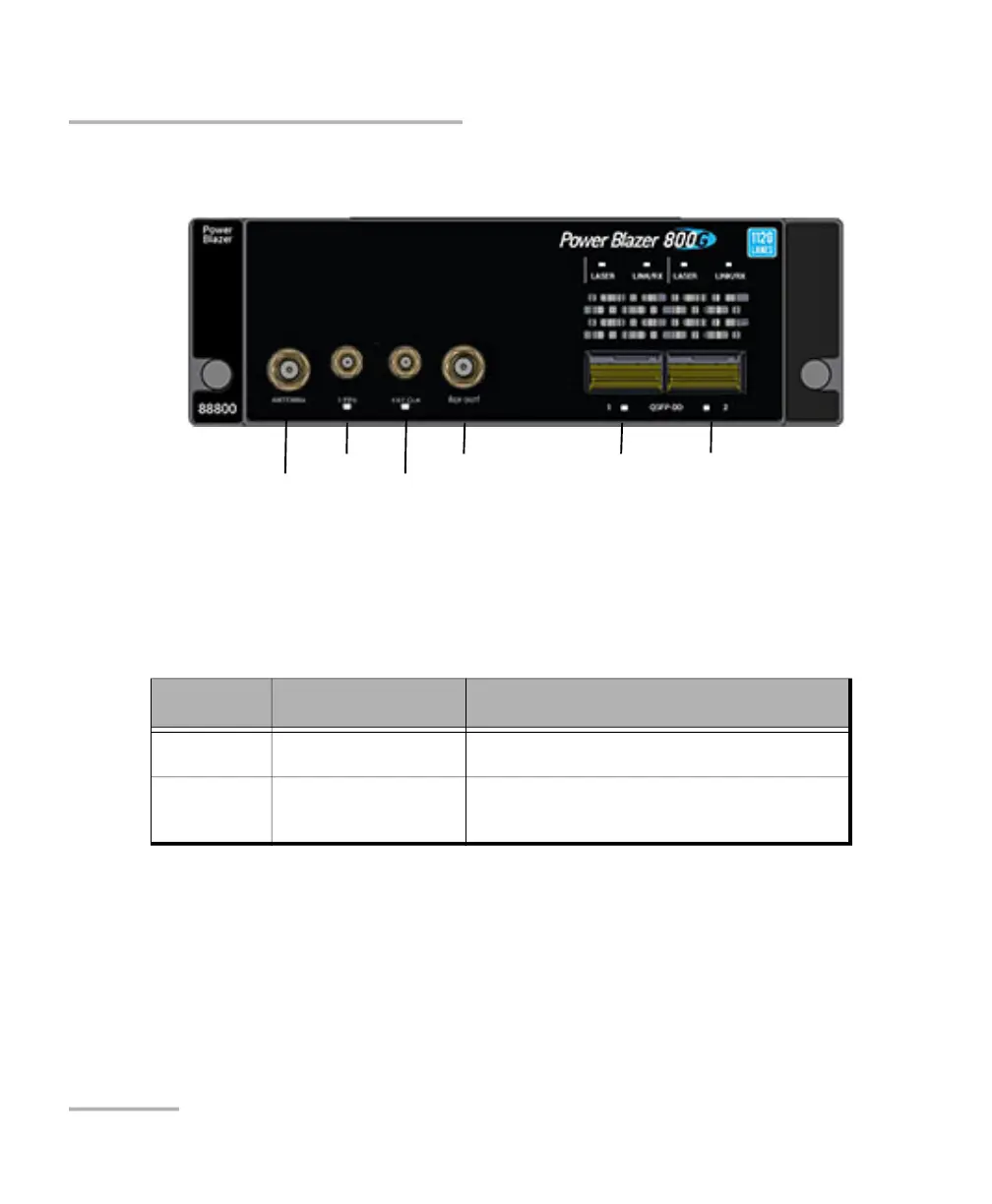

The following table shows the list of available ports and the supported
signals on the module.
Port
Labelled
Description Supported Signal(s)
QSFP-DD 1 Optical IN/OUT port
QSFP-DD, and DAC
2x400 Gbit/s Ethernet
REF OUT Electrical port SMA for
eye diagram clock signal
generation
QSFP-DD
1
Port 1
QSFP-DD
1, 3
Port 2
1. Laser radiation is emitted from this port when LASER LED is on.
2. Reserved, not used.
3. Future use.
ANTENNA
2
1 PPS
2
EXT CLK
2
REF OUT
