From the test menu, tap Setup, Test Configurator, and the Cable Test
block.
Global Options

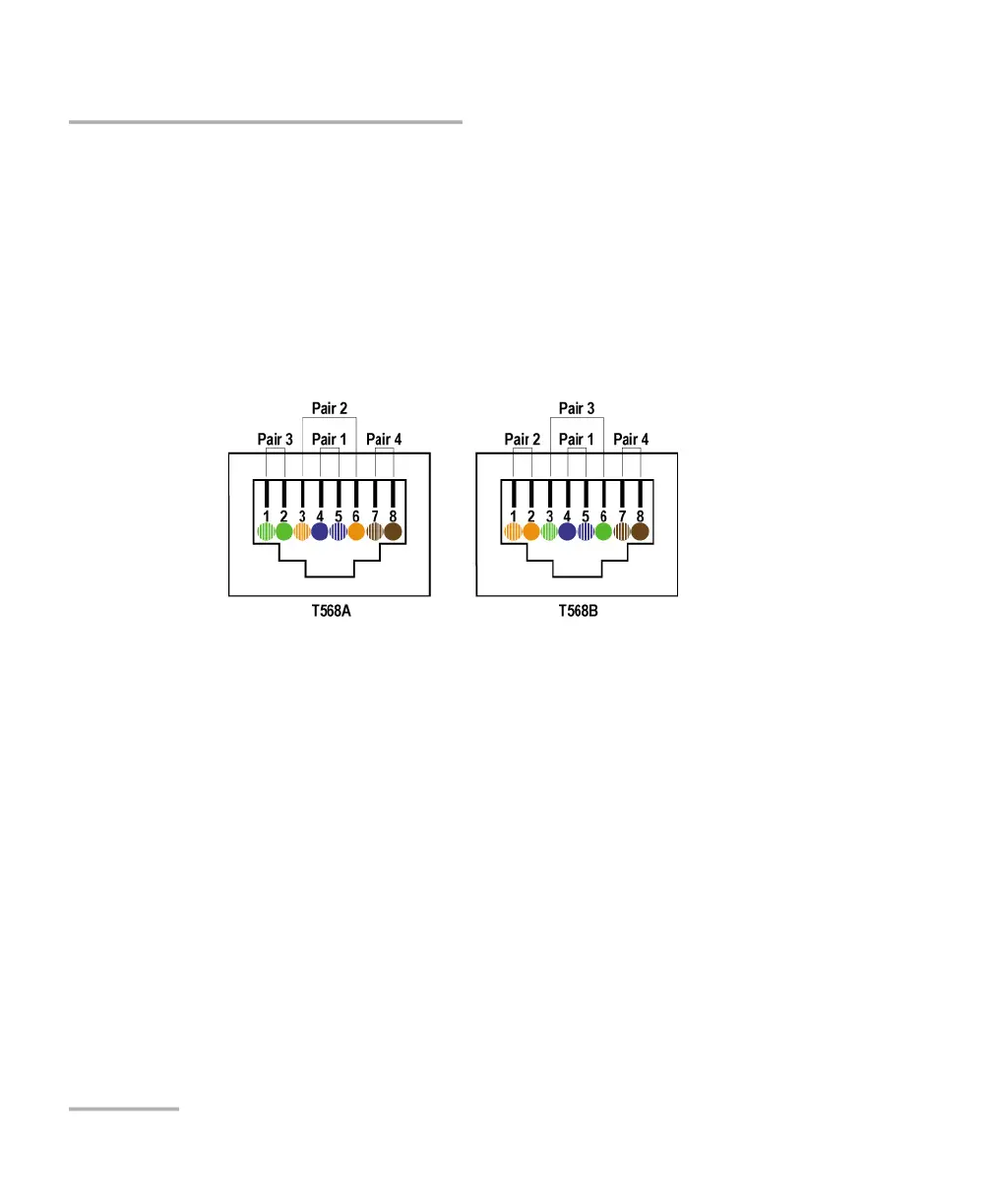

Wiring Standard is the pin-to-pair assignment corresponding to the
UTP cable used: T568A (default) or T568B.
Length Unit is the unit used for cable length and distance to fault
results: Meter (default) or Feet.
PoE check box when selected (cleared by default) allows verifying that
the Power Sourcing Equipment (PSE) is capable to deliver appropriate
power (PoE) to the Powered Device (PD). The PoE test is performed
after the cable test is executed confirming that the cable is ready to
carry data and power: either the Wire Map test reported No fault,
Straight pair, Crossed Pair, or Noise (link up). Only available on
8870/8880 module up to revision B.
