Power Blazer 21
4 Physical Interfaces and LEDs
This section describes all connectors (ports) and LEDs available on the
FTBx-88000 Series.

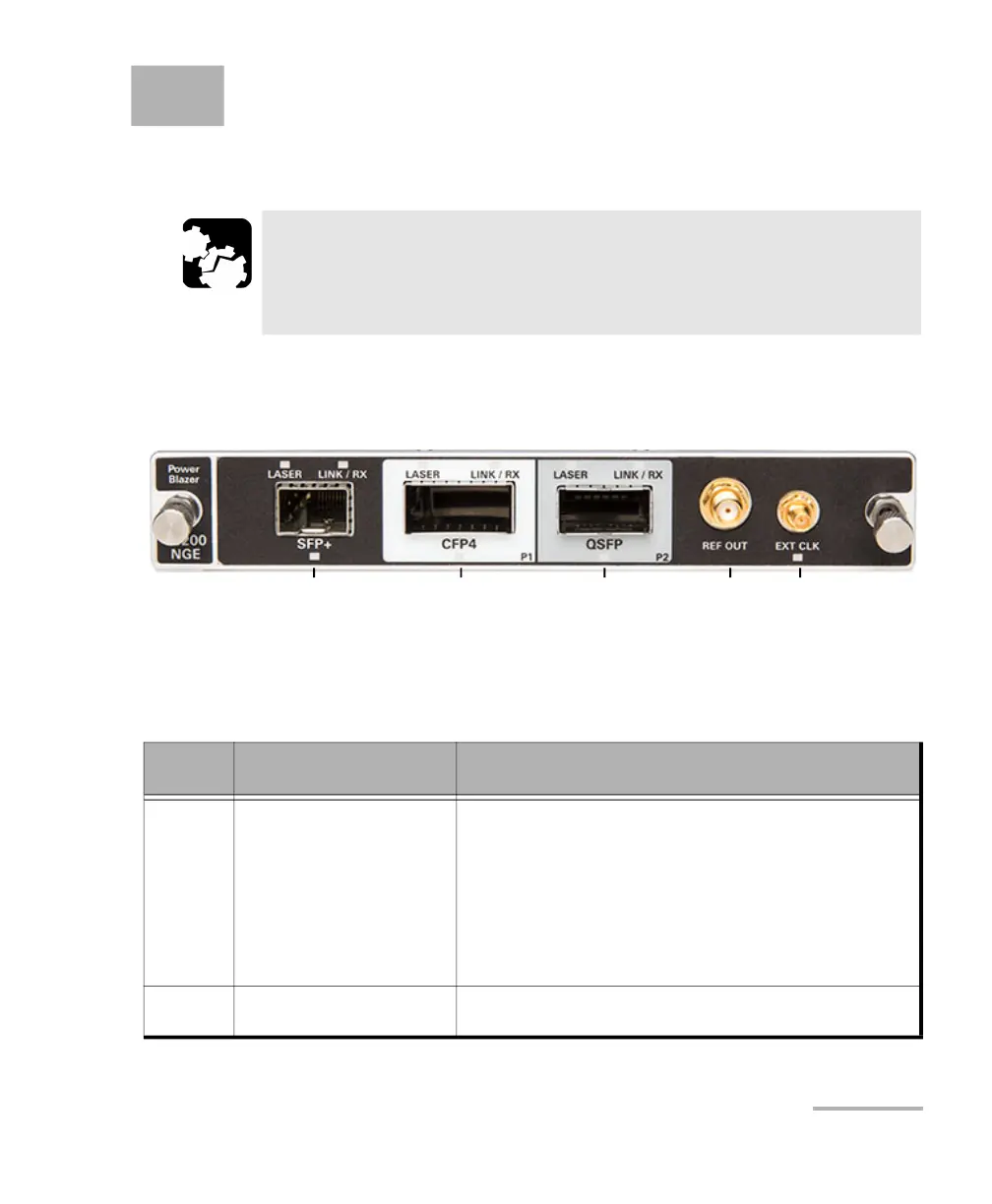

FTBx-88200NGE
The following table shows the list of available ports as well as a description
and the signals supported on the module.
CAUTION
To prevent exceeding the maximum input/output power level,
please refer to this product’s technical specifications at
www.exfo.com.
Port
Labelled
Description Supported Signal(s)
SFP+ Optical IN/OUT port SFP/SFP+
transceiver
Ethernet 100/1000 Mbit/s, 10 Gbit/s optical
Ethernet 10/100/1000 Mbit/s electrical (using active copper SFP)
Fibre Channel 1X, 2X, 4X, 8X, 10X, 16X
eCPRI 10 Gbit/s
CPRI 1.2, 2.4, 3.1, 4.9, 6.1, 9.8, 10.1 Gbit/s
OBSAI 1.5, 3.1, 6.1 Gbit/s
OC-1/STM-0, OC-3/STM-1, OC-12/STM-4, OC-48/STM-16,
OC-192/STM-64
OTU1, OTU2, OTU1e, OTU2e, OTU1f, OTU2f.
CFP4 Optical IN/OUT port CFP4
transceiver
a
Ethernet 100 Gbit/s
OTU4
CFP4
1
QSFP
1
EXT LCK REF OUT SFP+
1
1. Laser radiation is emitted from this port when LASER LED is on.
