986 FTBx-88000 Series
Modify DS0/E0
Modify DS0/E0
Note: For DS0, the framing structure has 24 timeslots. For E0, the framing
structures PCM-30 and PCM30 CRC-4 have 30 channel timeslots (1 to 15
and 17 to 31) while PCM-31 and PCM-31 CRC-4 have 31 channel timeslots
(1 to 31).
 DS0/E0 Size sets the channel timeslot data rate for the pattern payload
content to either 56K or 64K (default); forced to respectively 56K for
DS0 and 64K for E0 when TX Signaling is enabled. A timeslot data rate
of 56 Kbit/s uses 7 bits while 64 Kbit/s uses 8 bits to carry the payload
information.
 Zero Code Suppression allows the selection of the Zero Code
Suppression (ZCS) method used to replace the all-zero bytes of the Idle
and Tone payload contents. The ZCS mechanism is a global parameter
meaning that all channel timeslots configured with Tone/Idle data, use
the same ZCS method. Choices are:

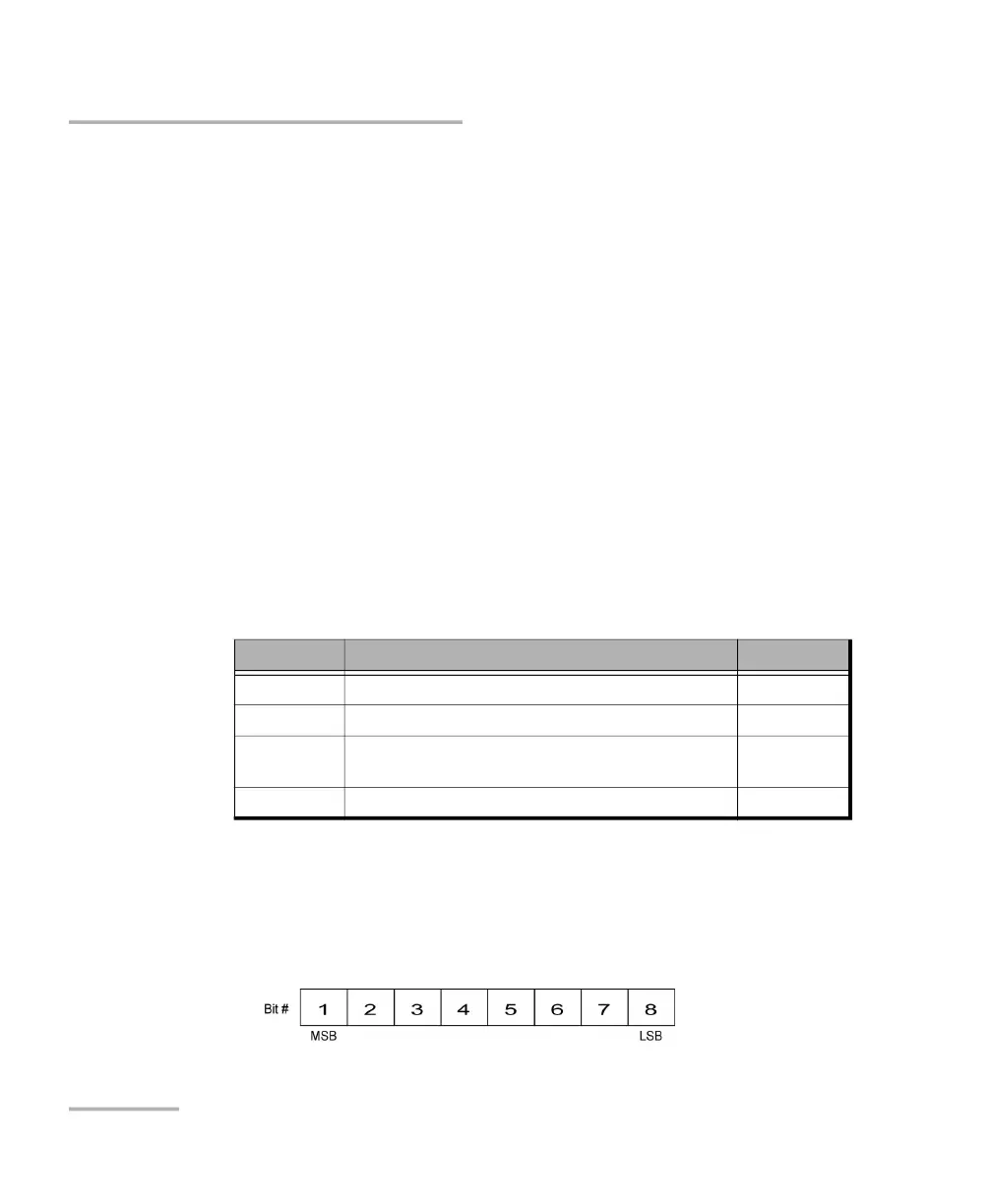

Note: Bit 8 is the Least-Significant Bit (LSB) and bit 1 is the Most-Significant Bit
(MSB).
ZCS Description Availability
None
a
a. Default value.
No Zero Code Suppression DS0 and E0
Jammed Bit 8 Every 8th (LSB) bit is forced to 1. DS0 and E0
GTE Bit 8 of an all zero channel byte is replaced by 1,
except in signaling frames where bit 7 is forced to 1.
DS0
Bell Bit 7 of an all zero channel byte is replaced by 1. DS0
