CHAPTER 23
PAGE 4
PAGE DATE: 7. July 2010
MAINTENANCE MANUAL EXTRA 300LT
23-10-01 VHF Whip Antenna
The VHF whip antenna is installed in the rear fuselage and is
towered with the whip into the rudder fin (refer to figure 1).
A "RG 50" coaxial cable is guided along the steel tube frame
and connects this whip antenna directly to the respective
transceiver.
Removal/Installation
1 Assure the BATTERY switch is OFF
2 Remove the main fuselage cover and the tail fairing (Re-
fer to chapter 05-00-01).
3 Disconnect the antenna to the coaxial cable.
4 Remove the nut holding the antenna to the grounding
plate.
5 Pull the antenna carefully out of the rudder fin.
6 Install in reverse sequence of removal.

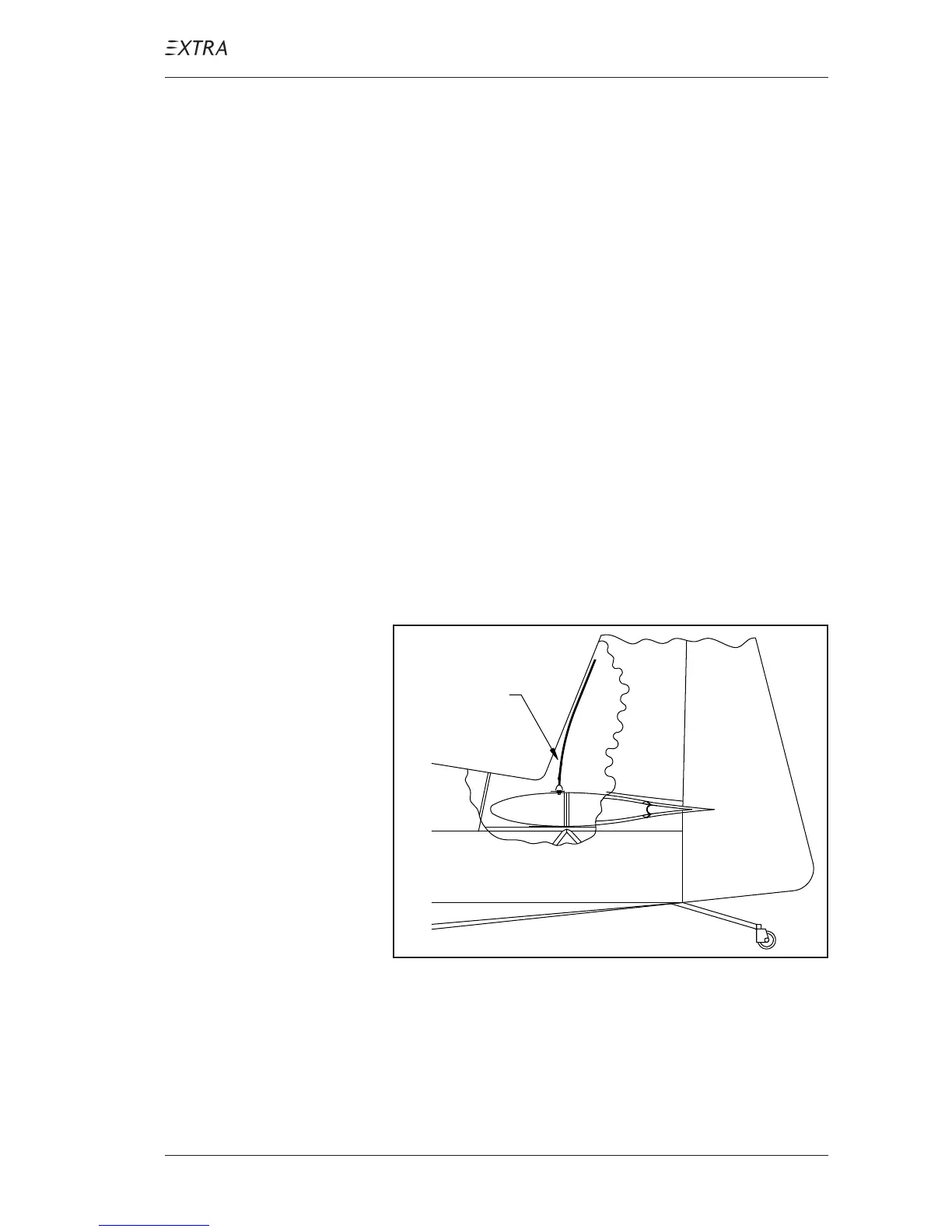

Figure 1 Whip Antenna
whip antenna
