CHAPTER 73
PAGE 3
MAINTENANCE MANUAL EXTRA 300LT
PAGE DATE: 12. June 2015
73-20-00 CONTROLLING
73-20-10 Throttle
Refer to Figure 1. The throttle is controlled by means of the
throttle control levers located on the left side of the cockpit.
These levers are interconnected by the throttle control
linkage. The throttle control levers transfer their movements
to the throttle by means of the throttle control cable. This
cable is routed on the left side of the fuselage, penetrates the
firewall and is then routed centrally below the exhaust
muffler to the throttle. In the engine compartment this cable
is covered with a 690 mm fire sleeve. The cable is attached
to the fuselage using clamp blocks at its ends, cable ties in
the cockpit area, and a cushioned clamp at the exhaust
muffler. Rod ends at both terminals of the control cable
serve as a means for rigging. The fire wall penetration is
sealed with PRC-812 (Products Research & Chemical Corp.,
USA) firewall sealant and covered with clamp sheets.
Front throttle control lever
Rear throttle control lever
Throttle control linkage
Throttle control cable
Side View

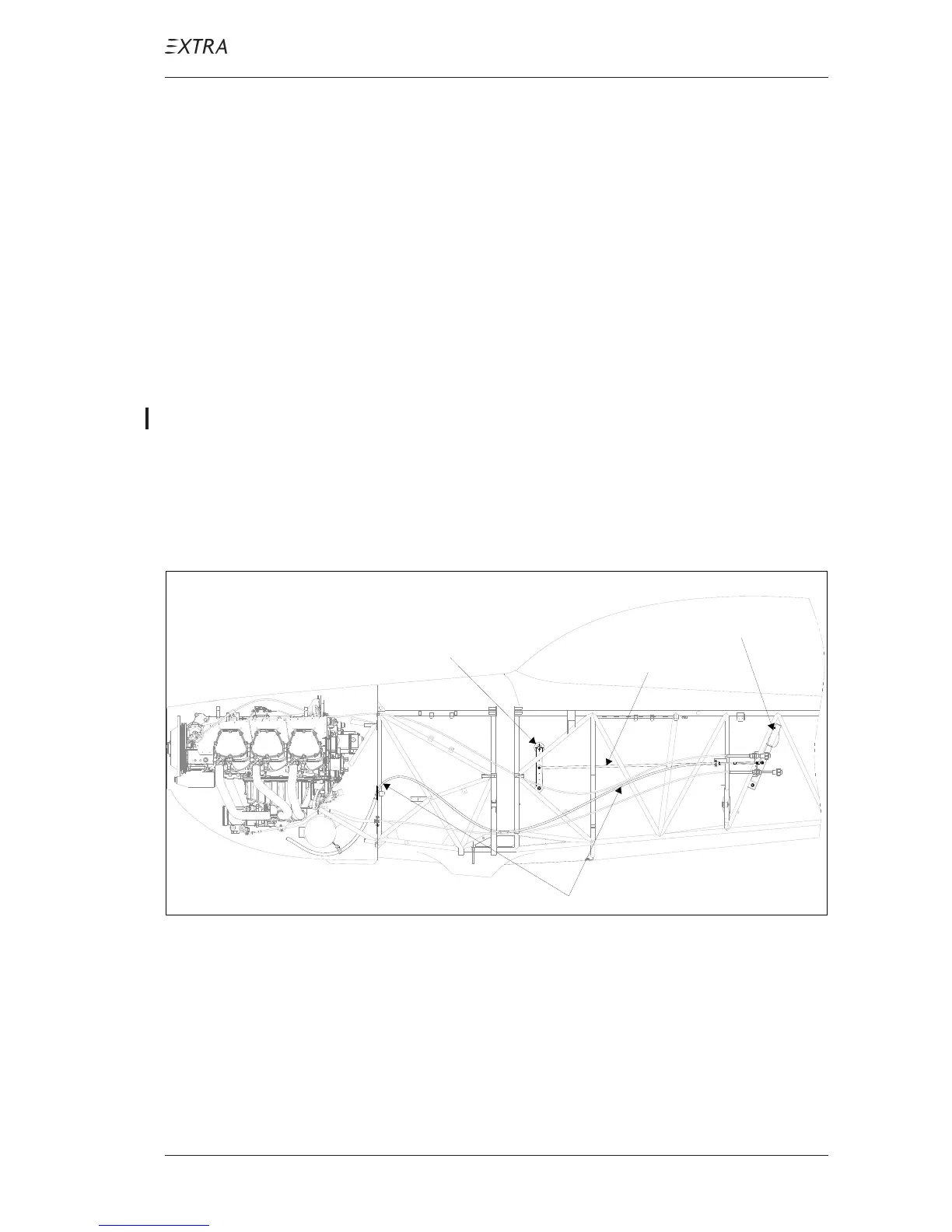

Figure 1 Throttle Control
