CHAPTER 24
PAGE 4
PAGE DATE: 21. March 2014
MAINTENANCE MANUAL EXTRA 300LT
7
6
2
5
3
4
fwd

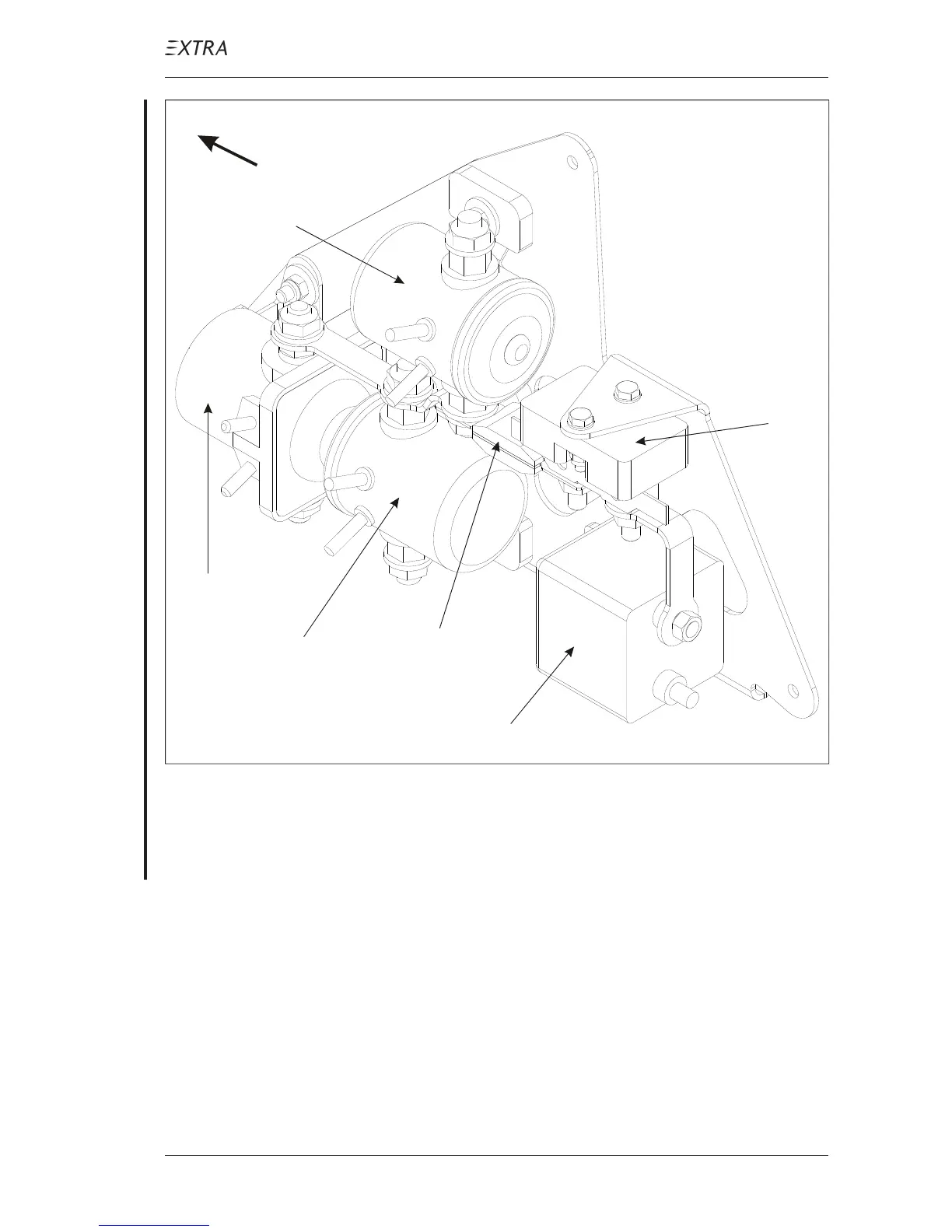

Legend:
1 Spare
2 Alternator relay
3 External power relay
4 Starter relay
5 Battery fuse
6 Shunt
7 Battery relay
Figure 1, Sheet 2 Electrical Main Board
A functional schematic of the complete electrical system is
shown on Figure 2, Sheet 1 (up to SN LT004). Sheet 2
applies from SN LT005.
