Extra 300LT - Elevator and Trim Tab Control; Figure 17

CHAPTER 27
PAGE 26
PAGE DATE: 21. March 2014
MAINTENANCE MANUAL EXTRA 300LT

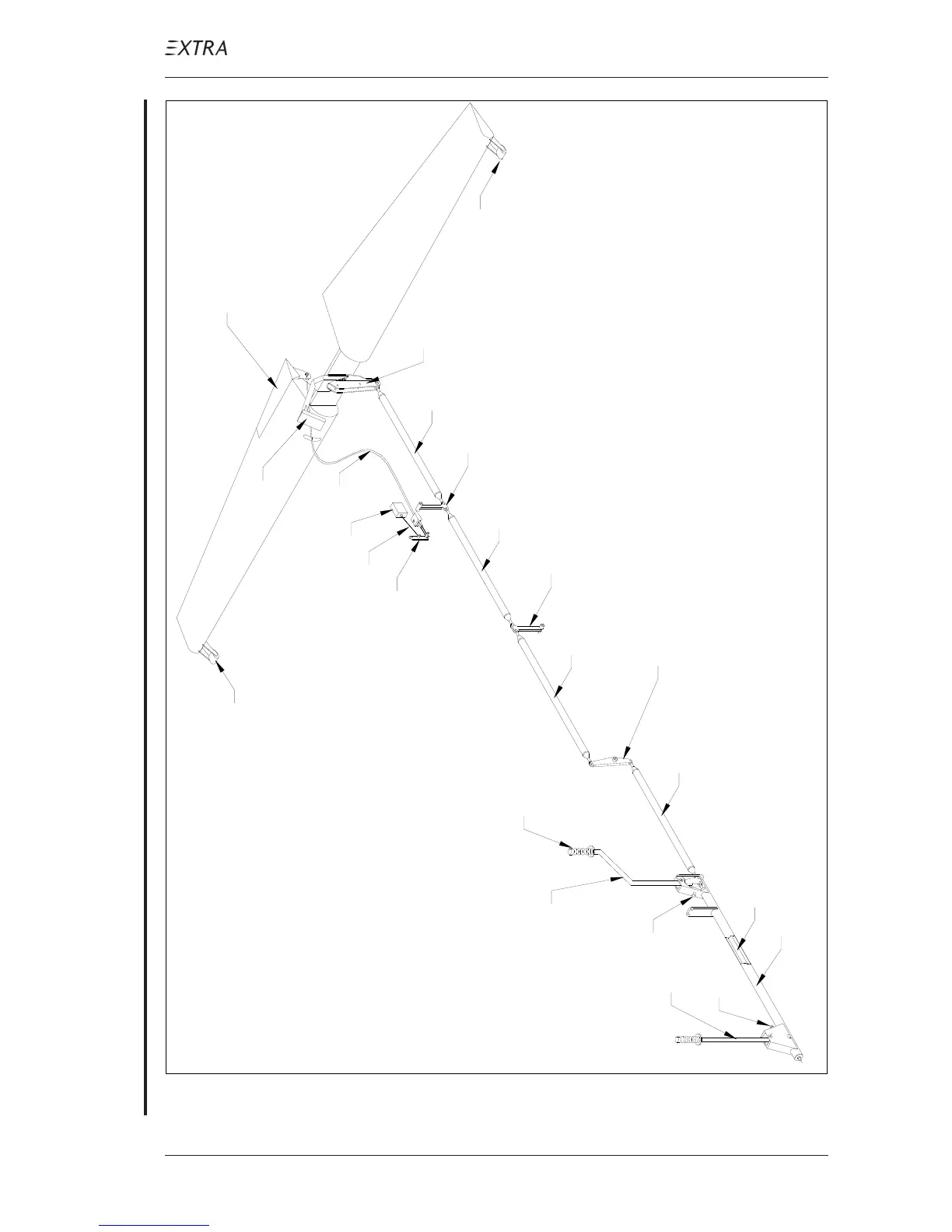

Figure 17 Elevator and Trim Tab Control
14
1
2
15
3
4
4a
15
3
3
12
5
Legend:
1 control stick front seat
2 torque tube
3 push-pull rod
4 control stick rear seat 4a handle incl. trim control switch
5 trim lever 6 trim servo rod 7 trim servo 8 trim control bowden cable (dual)
9 mass balance weight (standard) 9a additional mass balance weight (optional)
10 trim tab 11 elevator 12 elevator actuation arm 13 bellcrank 14 rocker type bellcrank 15 travel stops
3
3
13
13
9
10
6
9
9a
7
8
11
