CHAPTER 31
PAGE 7
PAGE DATE: 24. February 2017
MAINTENANCE MANUAL EXTRA 300LT
31-10-02 Rear Instrument Cover
Removal/Installation
1 Remove the screws located at the top of the front seat back
rest (1, Figure 3).
2 Remove the outer screws (2) of the rear instrument panel
(The two inner screws connect the panel to the steelframe).
3 Remove the cockpit corner cover screws (3).
4 Remove the instrument and the cockpit corner covers.
5 Install in reverse sequence of removal.

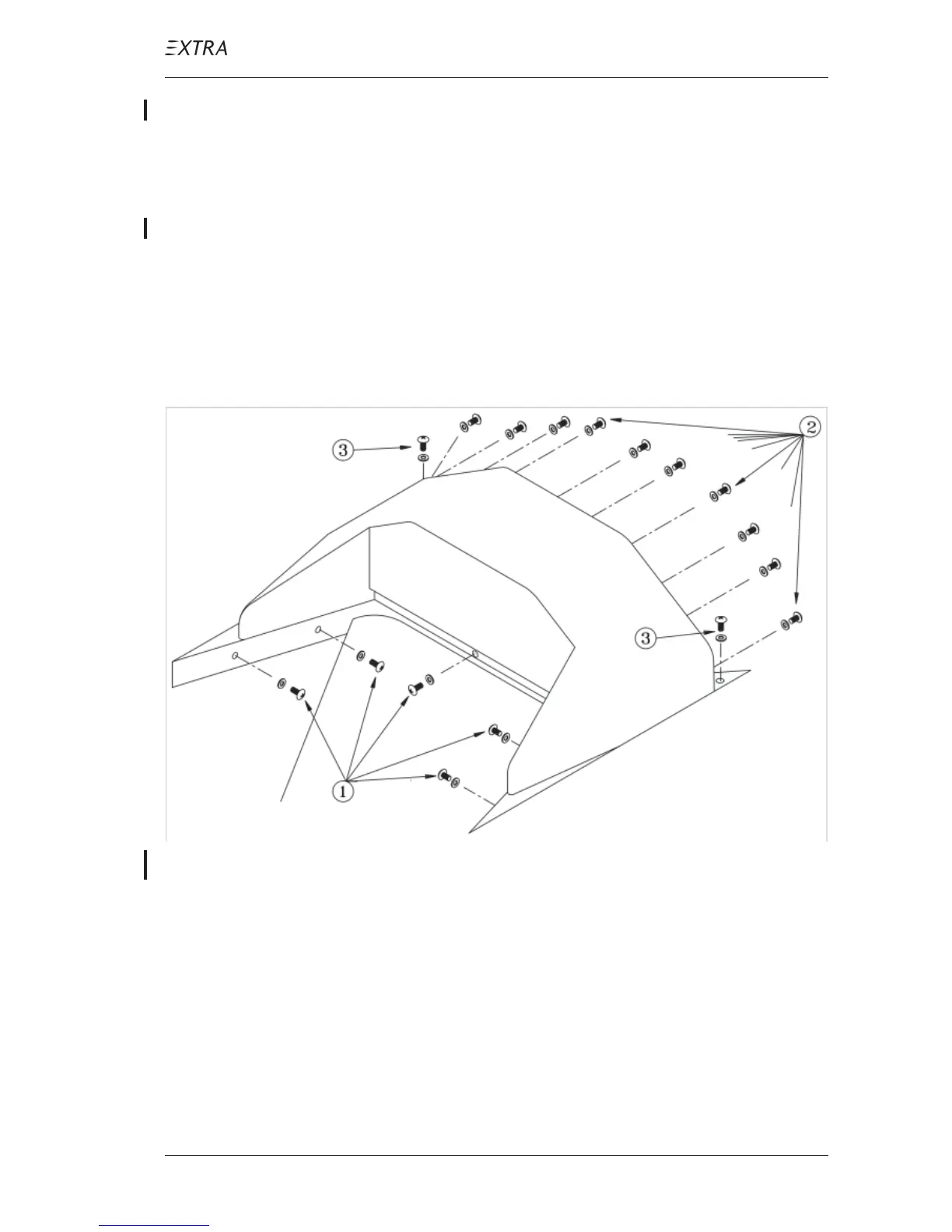

Figure 3 Rear Instrument Cover
Removal/Installation
