CHAPTER 51
PAGE 26
PAGE DATE: 7. July 2010
MAINTENANCE MANUAL EXTRA 300LT

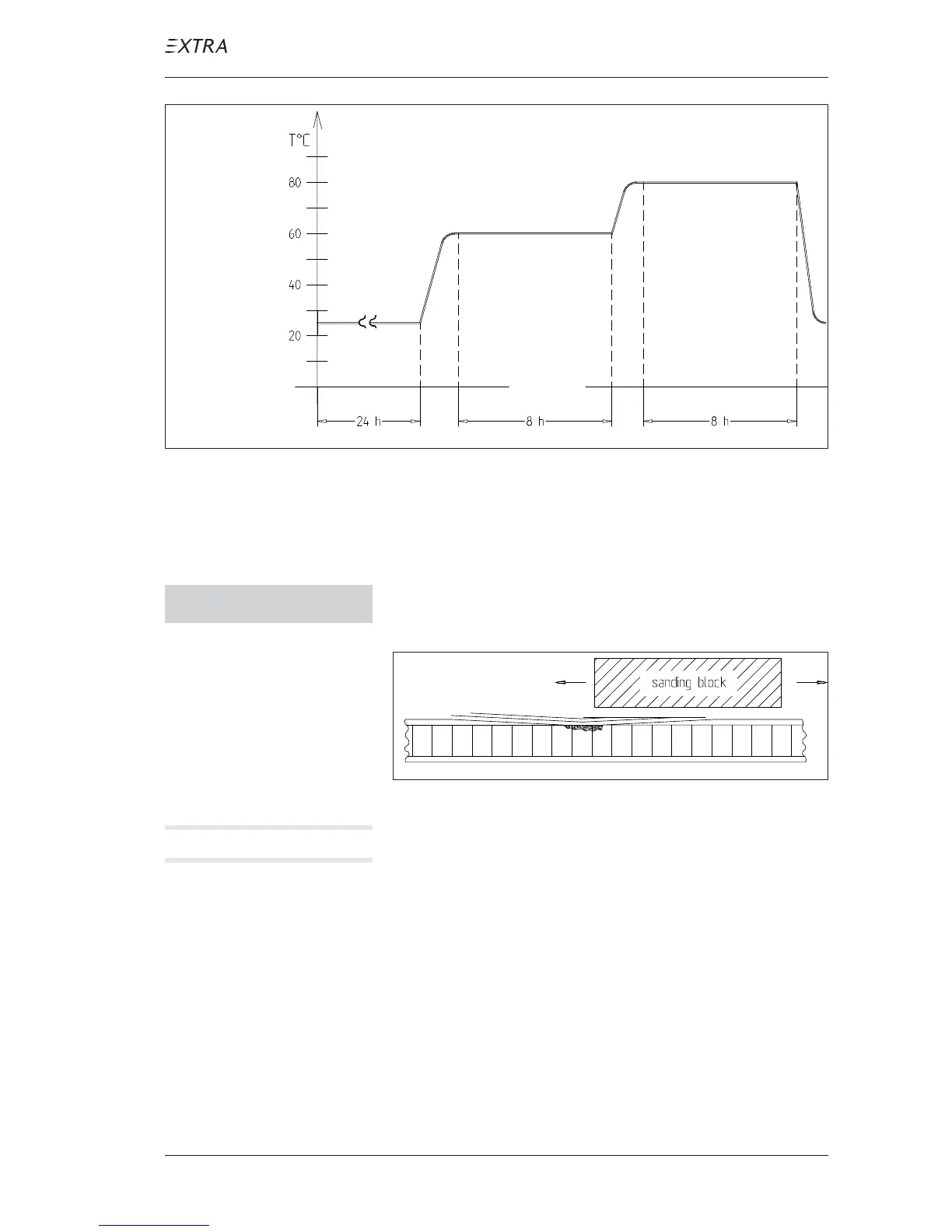

Figure 6 Curing cycle resin L20/SL
After the curing process is completed, the repair area can be
sanded level to the surrounding area.
N O T I C E Sand only the edge thickness of repair laminate (refer
to figure 7)!
Figure 7 Level Sanding of Surrounding Area
N O T E For painting of the repair area refer to chapter 51-70-
06.
b) Damage of complete sandwich
If the inner laminate is also damaged, first remove the upper
laminate within the area, where no secure bond connection
to the core material is suspected. Trim out the complete
damaged portion of core material to a circular or elliptical
shape.
