11 Push the mixture actuator (3, Figure 8) to the full forward
position.
N O T E It is essential that the rod end is screwed onto the
threaded terminal until the inspection hole of the rod
end is completely filled with thread (minimum 8 turns).
12 Screw the rod end onto the threaded terminal to match the
full forward travel stop mixture actuator position. Tighten
the counternut.
13 Install rod end to mixture actuator with bolt, washers, castle
nut and cotter pin. Tighten the castle nut slightly. Ensure
movability of actuator.
14 Install the firewall forward cable ties on positions as marked
before.
15 Perform Mixture Vernier Control Cable Rigging.
Rigging
1 Move mixture control knob to the foremost position.
2 Check that the travel stop at the mixture control lever is
reached, and the over-travel of 5mm [3/16"] (tolerance +/-1
mm [1/32"]) is ensured at the mixture control knob (see
Figure 7).

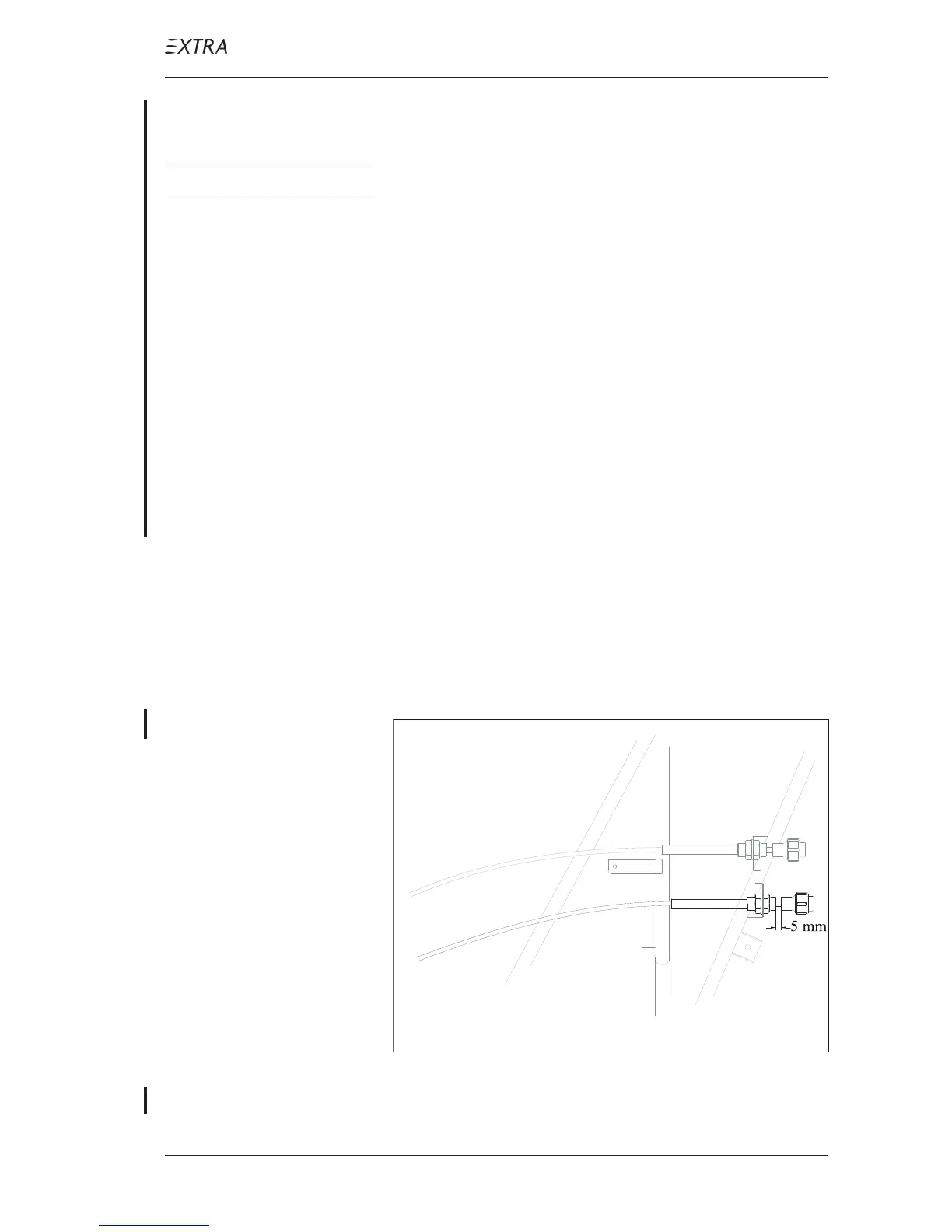

Figure 7 Over-travel at Mixture Control Unit,
3 Check full travel.
