CHAPTER 73
PAGE 15
MAINTENANCE MANUAL EXTRA 300LT
PAGE DATE: 12. June 2015
4 If necessary adjust rod end (2, Figure 8) by the following
steps:
a Remove cotter pin, castle nut, washers and bolt from the
rod end (2) to mixer control actuator (3) attachment.
b Loosen the counter nut and adjust rod end (2) by turning.
Ensure thread is visible in the inspection hole when
fastening. Apply inspection lacquer on the counter nut.
c Reconnect the rod end (2) to the mixture control actuator
(3).
or
1
23

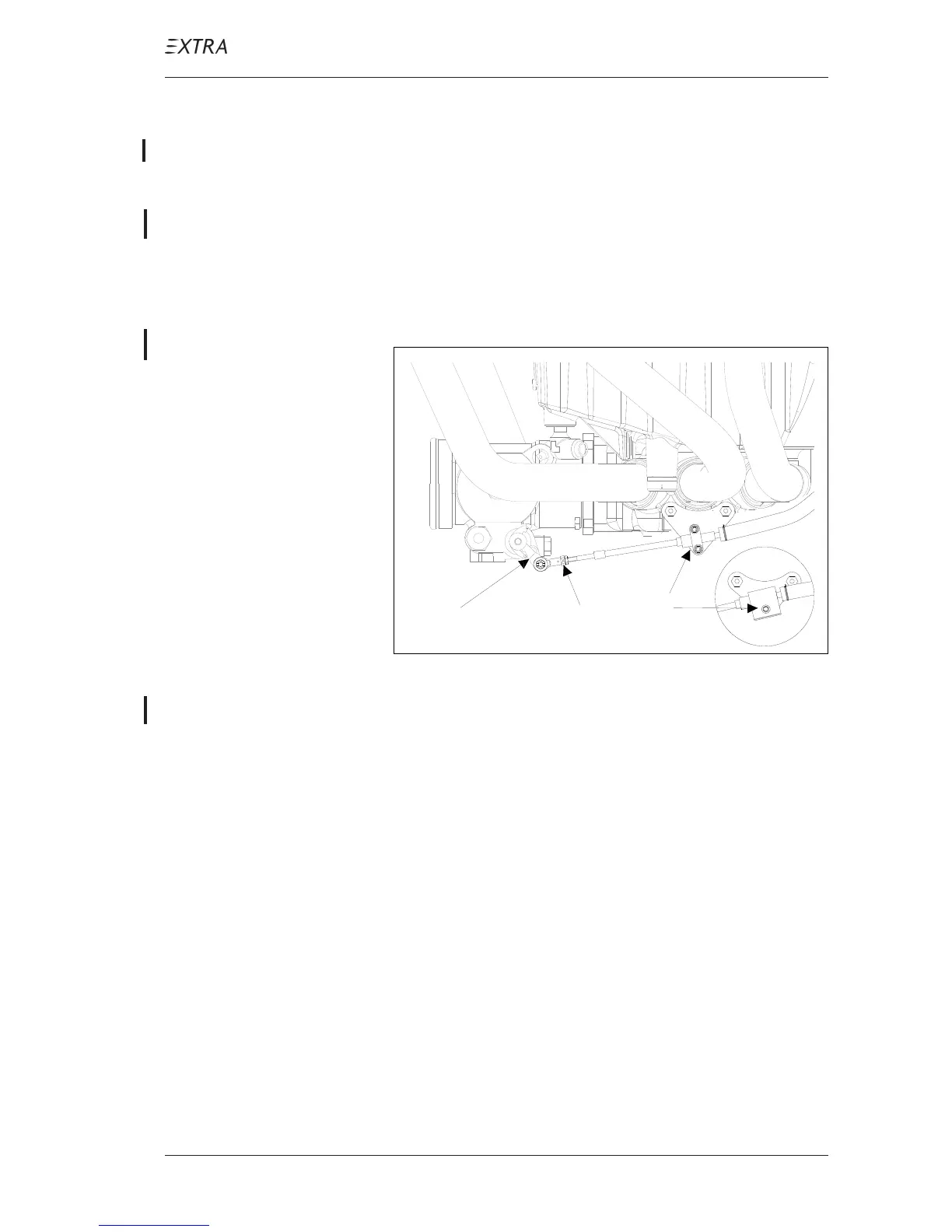

Figure 8 Mixture Vernier Control Cable Rigging
