CHAPTER 25
PAGE 6
PAGE DATE: 21. March 2014
MAINTENANCE MANUAL EXTRA 300LT

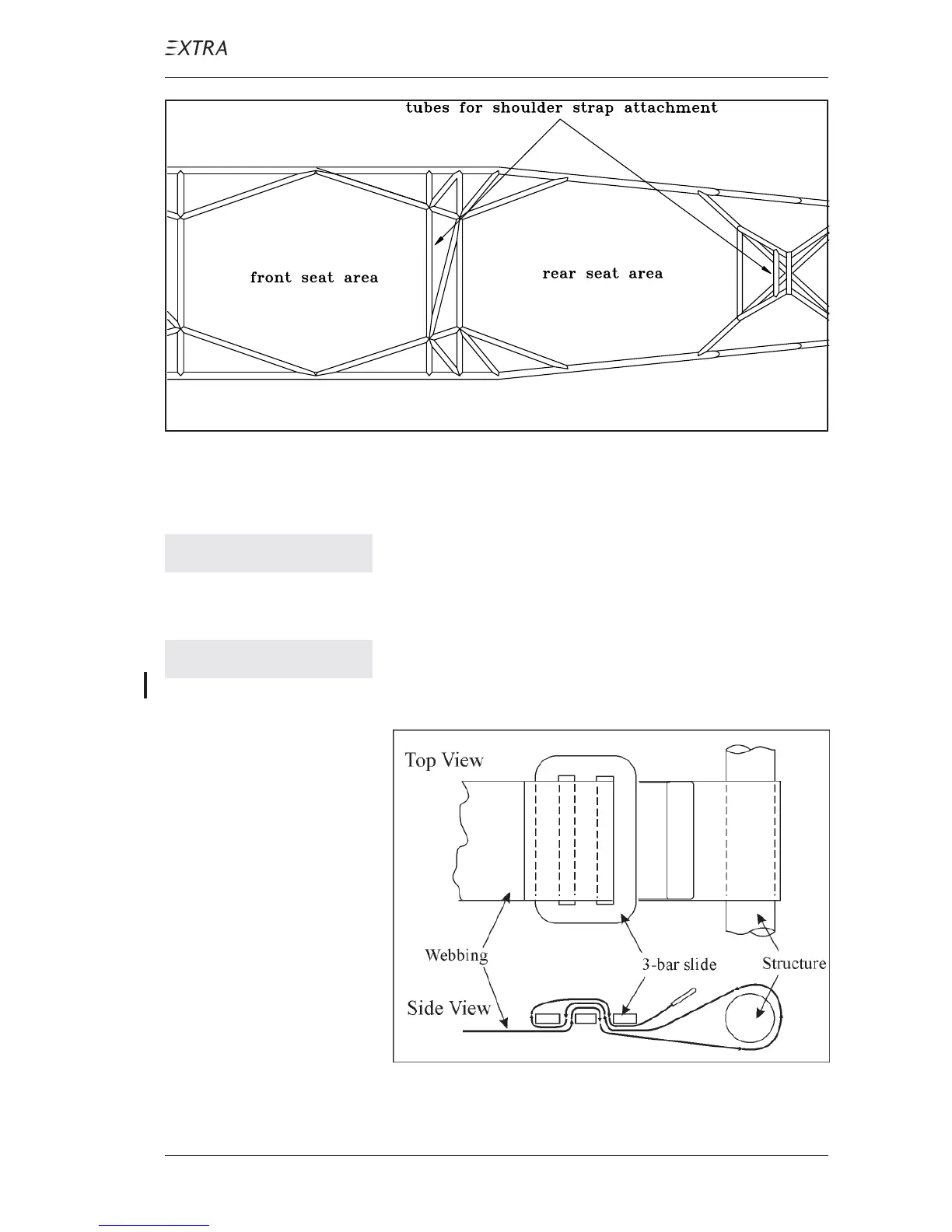

Figure 2 Tubes for Shoulder Strap Attachment
The shoulder harness shall be installed using the 3-bar slide
as shown in figure 3.
IMPORTANT Tuck excess webbing through the 3-bar slide. Failure
to make this third pass through the 3-bar slide will
cause the belt to slip under load.
IMPORTANT Make shure that after the proper length is determined
the 3-bar slide is positioned as close to the structure as
possible.
Figure 3 Shoulder Strap Attachment
