Extra 300LT - Figure 8; Fuel Selector Valve and Control Rod

To Next Page

To Previous Page

CHAPTER 28

PAGE 17

PAGE DATE: 7. July 2010

MAINTENANCE MANUAL EXTRA 300LT

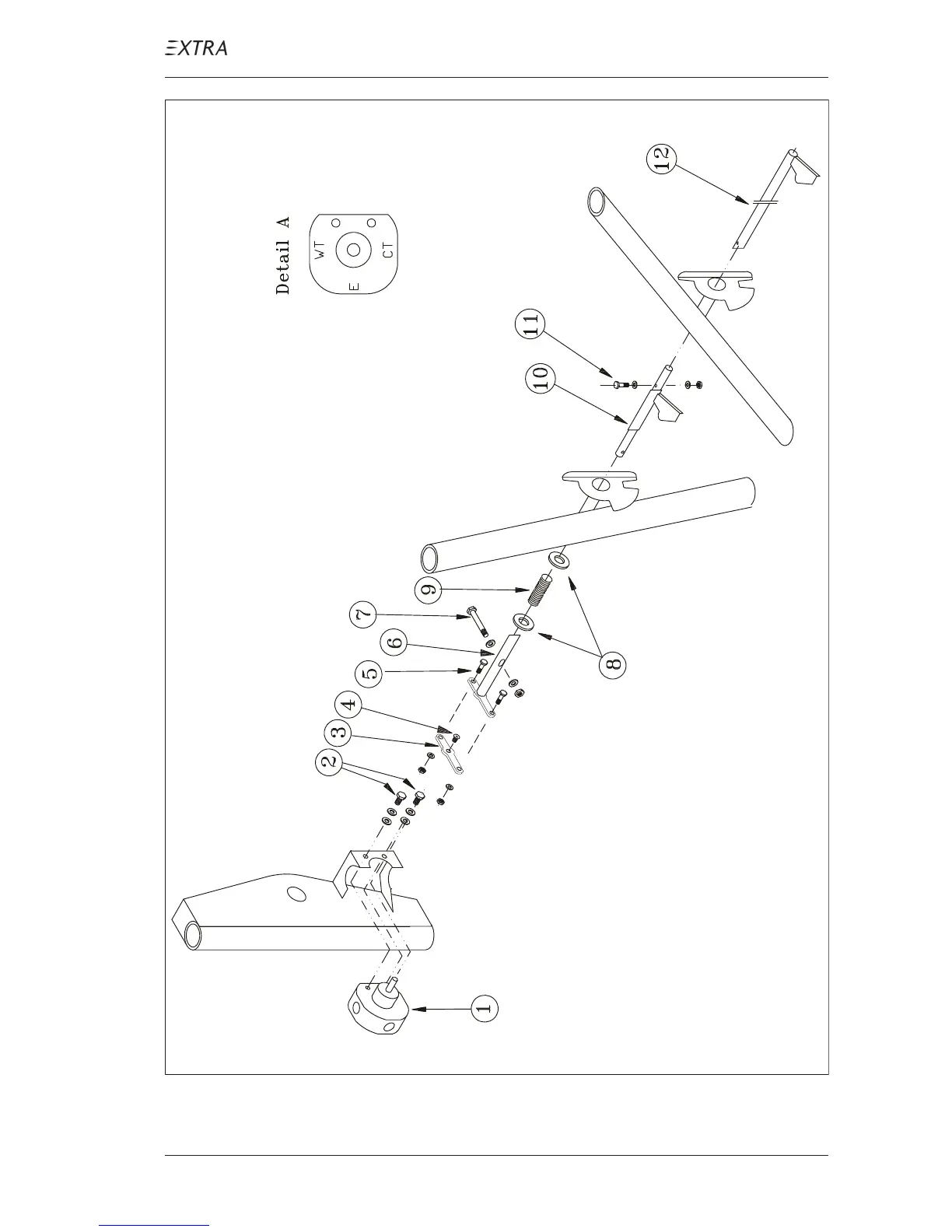

Figure 8 Fuel Selector Valve and Control Rod

Legend:

1 Selector valve

2 Selector valve attachment bolts

3 Control bracket

4 Attachment screw

5 Control rod attachment bolts

6 Front control rod

7 Front control rod connection bolt

8 Washers

9 Spring

10 Middle control rod with handle

11 Rear control rod connection bolt

12 Rear control rod with handle
