CHAPTER 79
PAGE 10
MAINTENANCE MANUAL EXTRA 300LT
PAGE DATE: 7. July 2010

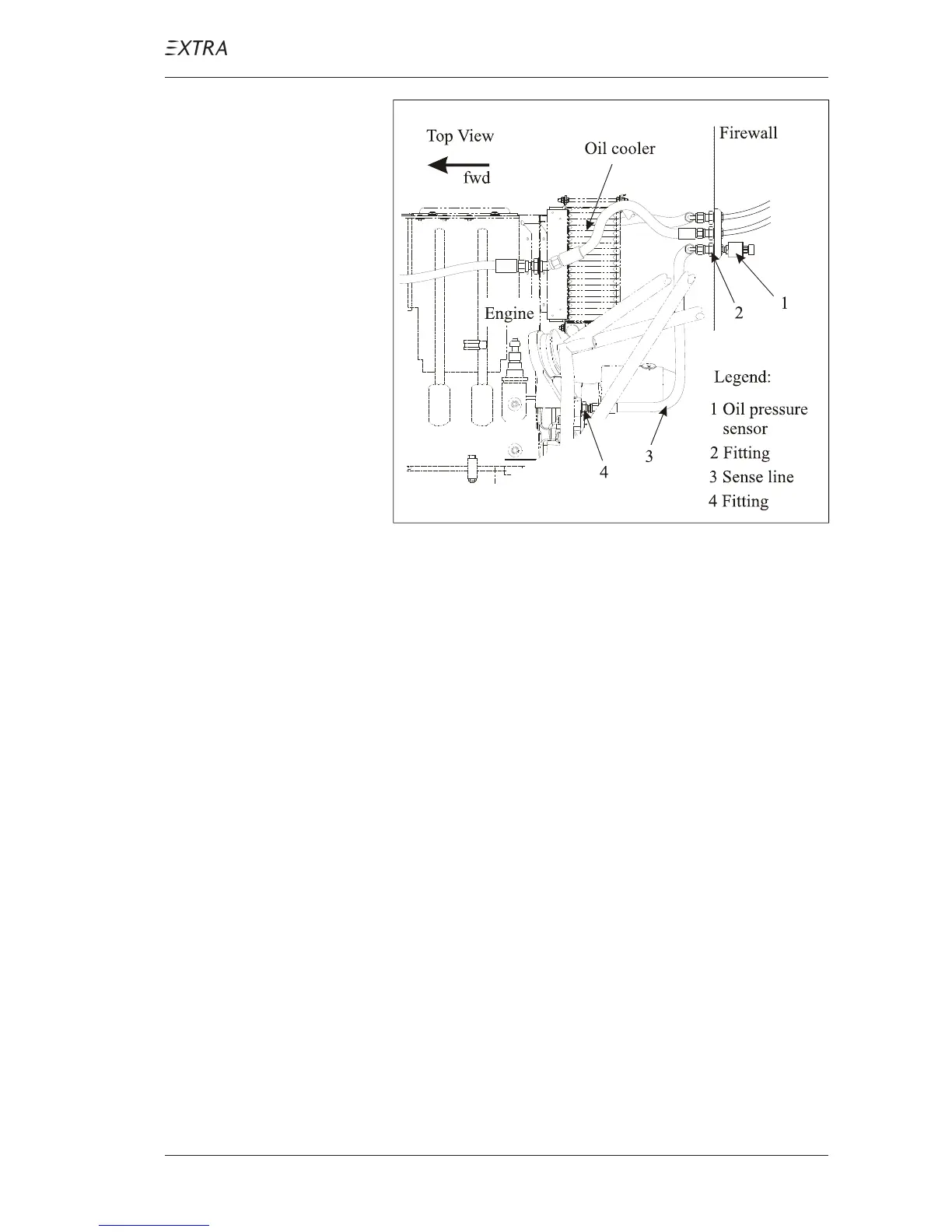

Figure 4 Oil Pressure Sensor & Wet Line
79-30-11 Oil Pressure Gauge
Oil pressure indication is combined with the oil temperature
indication in a single unit.
Removal/Installation
Refer to chapter 31.
79-30-12 Oil Pressure Wet Line
Removal/Installation
1 Remove upper cowling per chapter 71
2 Disconnect the sense wet line at firewall bulkhead fitting
and at engine fitting (refer to figure 4).
3 Install in reverse sequence of removal. Torque sense line
fittings with 15.3 to 16.9Nm (135 to 150 in.lbs.) and apply
inspection lacquer.
