Extra 300LT - Main Data; Main Dimensions; Wing

CHAPTER 6
PAGE 4
PAGE DATE: 7. July 2010
MAINTENANCE MANUAL EXTRA 300LT
06-10-00 MAIN DATA
06-10-01 Main Dimensions
(Refer to figure 2 on page 6)
Length: 7.01 m (23.00 ft)
Height 1: 2.62 m (8.60 ft)
Height 2
: 2.59 m (8.45 ft)
Span: 8.00 m (26.25 ft)
Wheel base: 5.07 m (16.63 ft)
Wheel track: 1.80 m (5.91 ft)
MTOW: Normal category &
Acro III category 950 kg (2095 lbs)
Acro II category 870 kg(1918 lbs)
Acro I category 820 kg(1808 lbs)
06-10-02 Wing
Span: 8.0 m (26.25 ft)
Area: 10.84 m² (116.68 ft²)
Airfoil: Root: NACA23015 (mod.)
Tip: NACA23012 (mod.)
Chord: Root: 1.88 m (6.17 ft)
Tip: 0.843 m (2.77 ft)
MAC: 1.427 m ( 4.682 ft)
Aileron area: 2 x 0.757 m² (2 x 8.15 ft²)
Aileron deflection: up 30°, down 20°, tolerance ± 2°

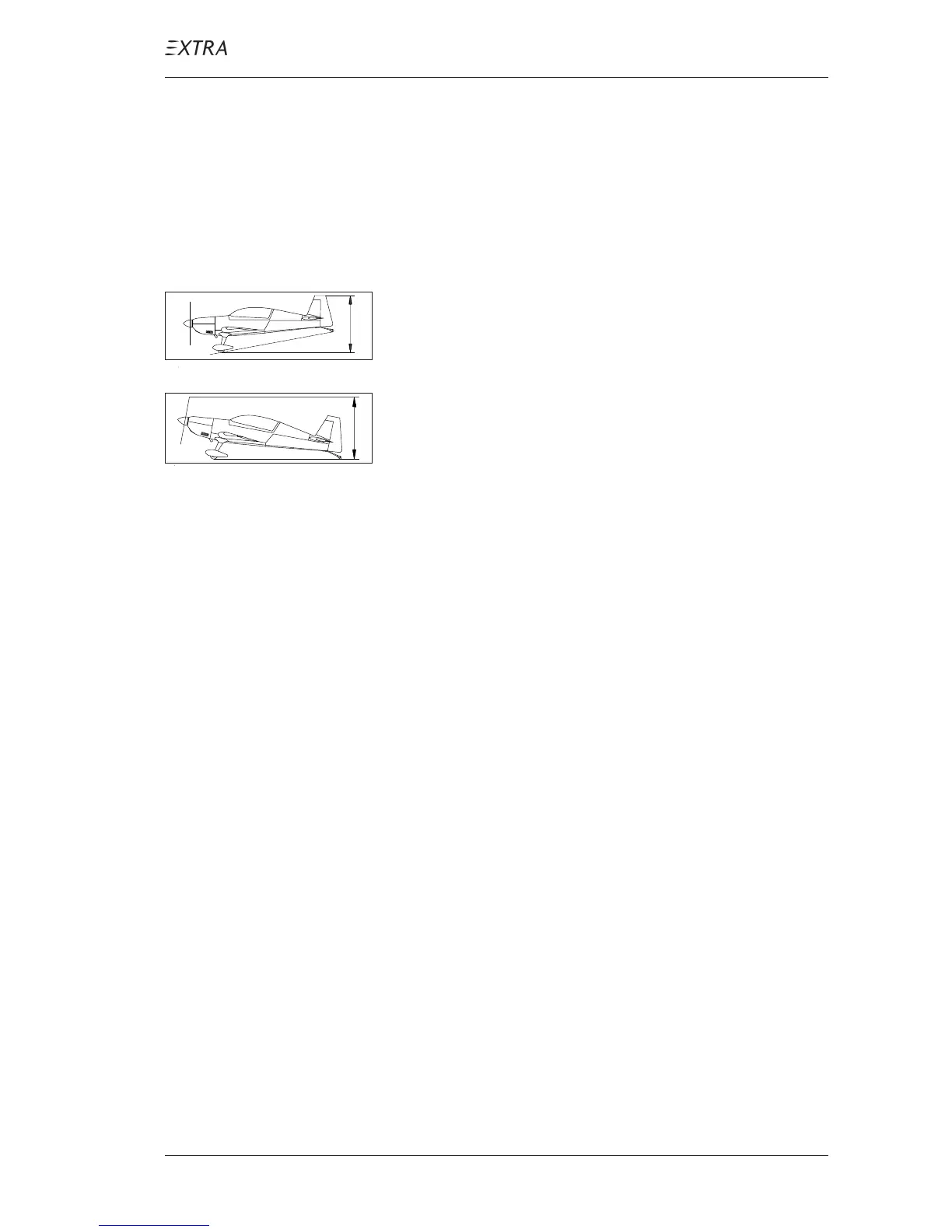

Height 1
Height 2
