Extra 300LT - Clamp Sheet to Clamp Block Distance

CHAPTER 73
PAGE 5
MAINTENANCE MANUAL EXTRA 300LT
PAGE DATE: 12. June 2015
Installation
Refer to Figure 3 and Figure 4.
1 Install the throttle control cable according to the prior
marked routing. Ensure distance between clamp sheet at the
firewall and clamp block is 705 mm (refer to Figure 2).

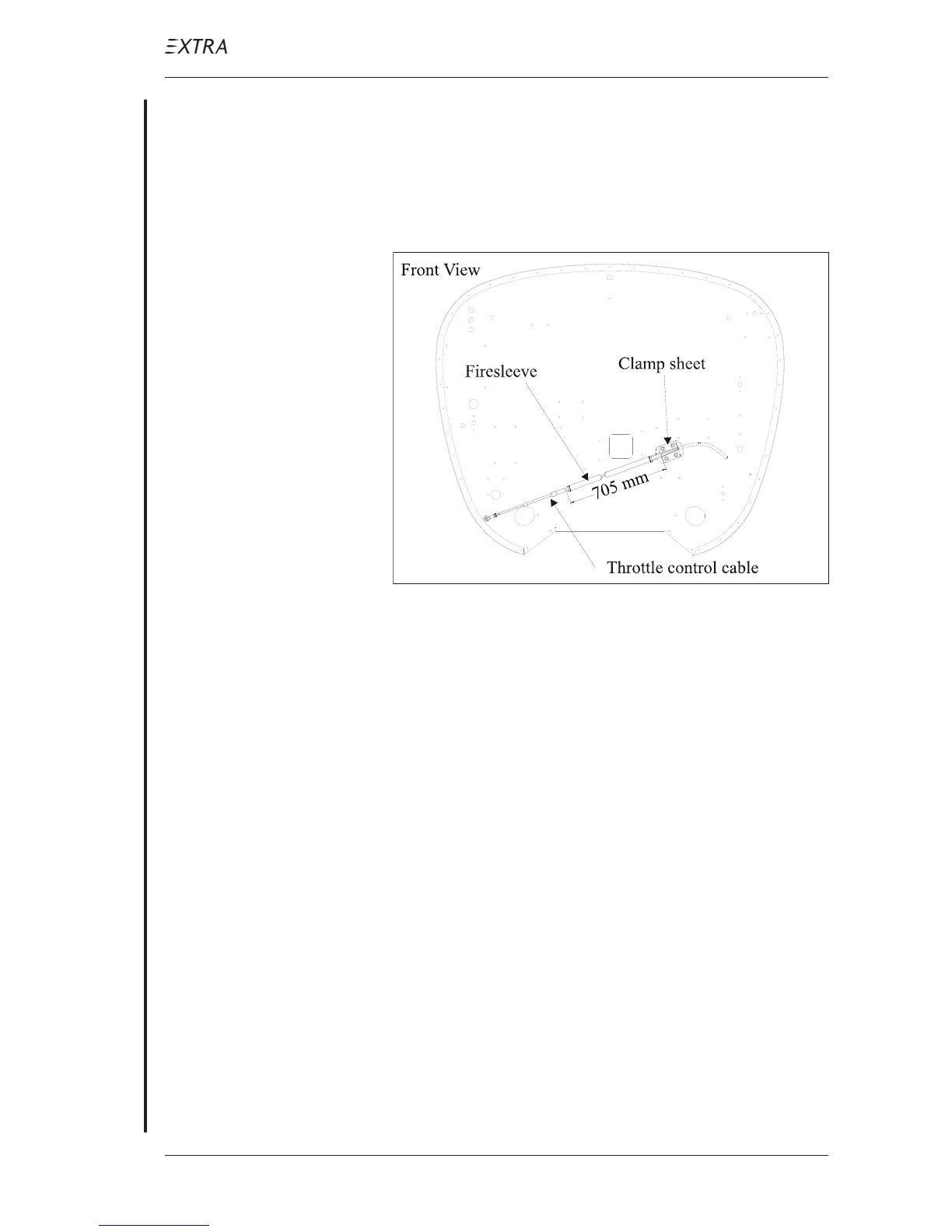

Figure 2 Clamp Sheet to Clamp Block Distance
2 Renew the sealing of the firewall breakthrough at the en-
gine side of the firewall. Use PR-812 (Products Research
& Chemical Corp., USA) firewall sealant as outlined in
Chapter 20-10-10.
3 Let the sealant slightly cure before thightening the clamp
sheet attachment bolts. This will strengthen the clamping.
4 Install the clamp sheets.
5 Install the cable ties in the cockpit area on positions as
marked before.
6 Install the 690 mm firesleeve to the throttle control cable
and secure with safety wire at both ends (refer to Figure 2).
7 Install the cushioned clamp (4, Figure 4).
8 Install the throttle control cable to the respective bracket
by installing the clamp block (3, Figure 4) to the conduit
fitting of the control cable.
9 Push the throttle actuator (1, Figure 4) to the full idle travel
stop position.
