CHAPTER 55

PAGE 4

PAGE DATE: 12. June 2015

MAINTENANCE MANUAL EXTRA 300LT

55-10-00 HORIZONTAL STABILIZER

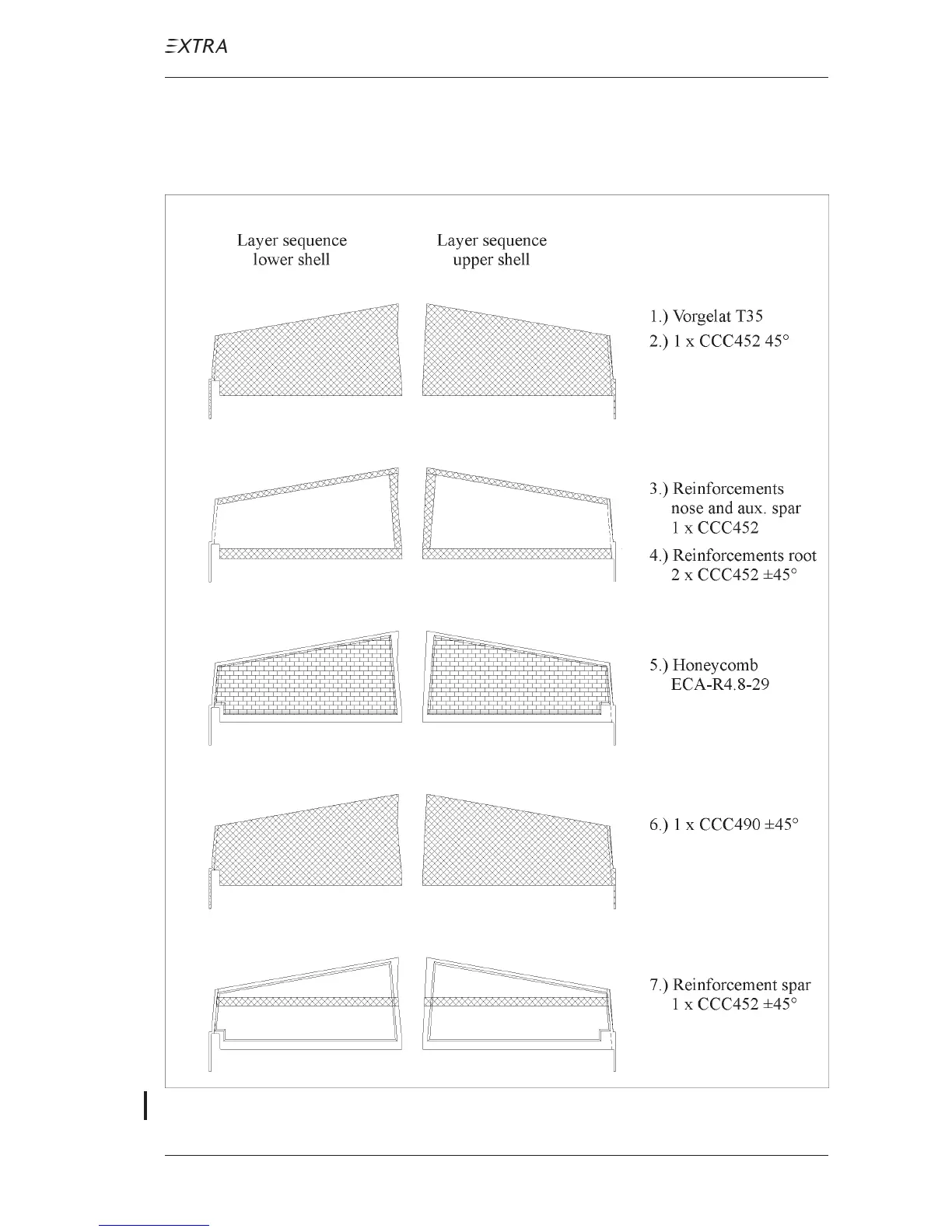

Figure 1, Sheet 1 Layer Sequence Horizontal Stabilizer (up to S/N LT020)
