CHAPTER 77
PAGE 15
MAINTENANCE MANUAL EXTRA 300LT
PAGE DATE: 24. February 2017
77-41-05 Fuel Flow Transducer
Removal/Installation
C A U T I O N Spilling fuel could inflame. Ensure exhaust is cool.
1 BATTERY switch off.
2 Remove engine cowlings as per Chapter 71.
3 Remove the fire sleeve (6, Figure 6).
4 Disconnect the fuel hoses (3) from the transducer (4).
5 Disconnect the electrical wiring (1) from the transducer.
6 Remove the attachment bolts (2) and remove the transducer
from the mounting sheet (5).
7 Reverse procedure for installation.

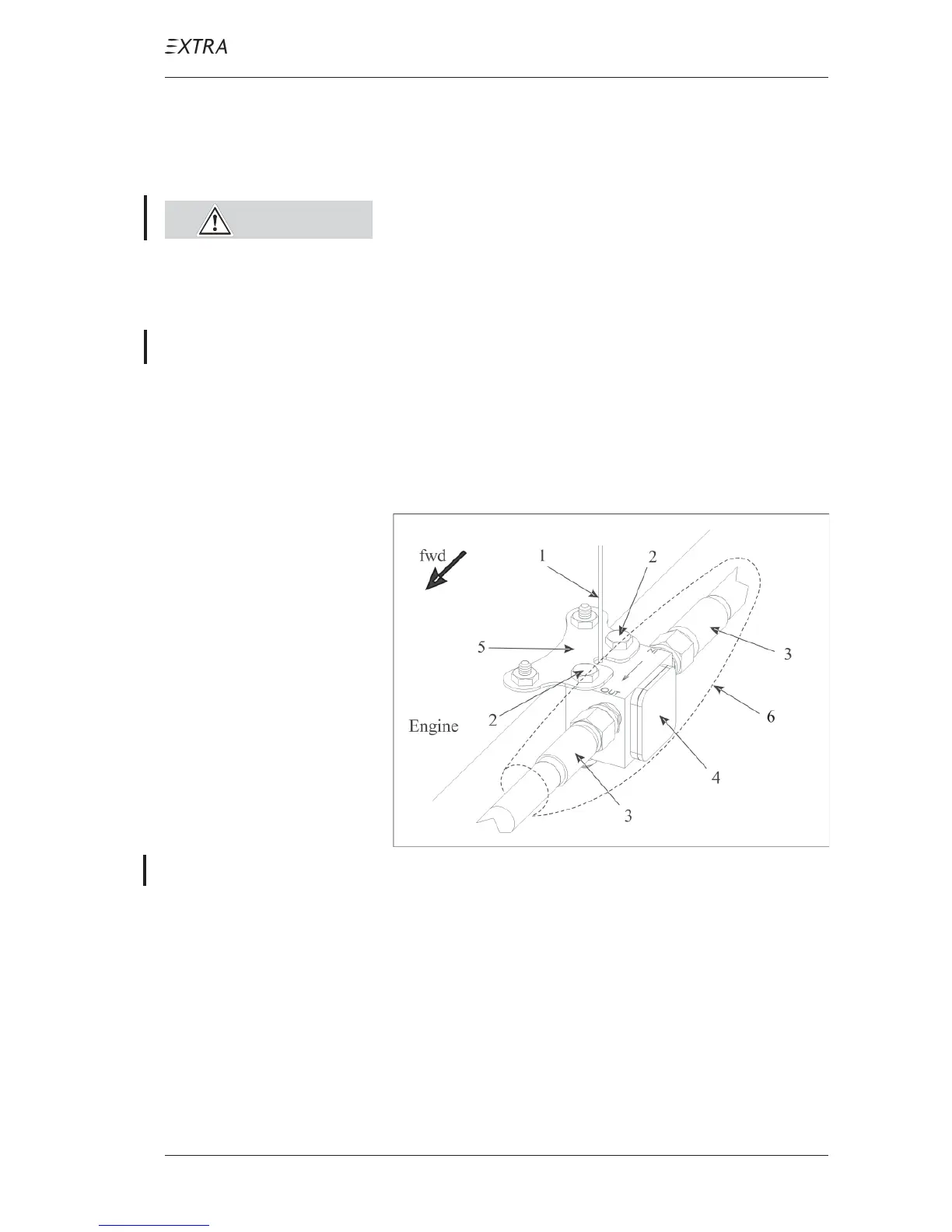

Figure 6 Fuel Flow Transduver
