6 Clean sealing surfaces mechanically and with Acetone.
7 Install in reverse sequence of removal after applying 3M
Brand Fuel Resistant Coating 776 (3M, St. Paul, USA) for
sealing to both sides of the sealing ring.
28-40-04 Fuel Quantity Transducer (Wing Tank)
Removal/Installation
(refer to figure 12)
1 Disconnect the electrical wiring.
2 Remove inspection door as per chapter 28-10-04
3 Remove tank unit bolts (1).
4 Remove the retainer ring (3) the tank unit (4) and the seal-
ing ring (2).

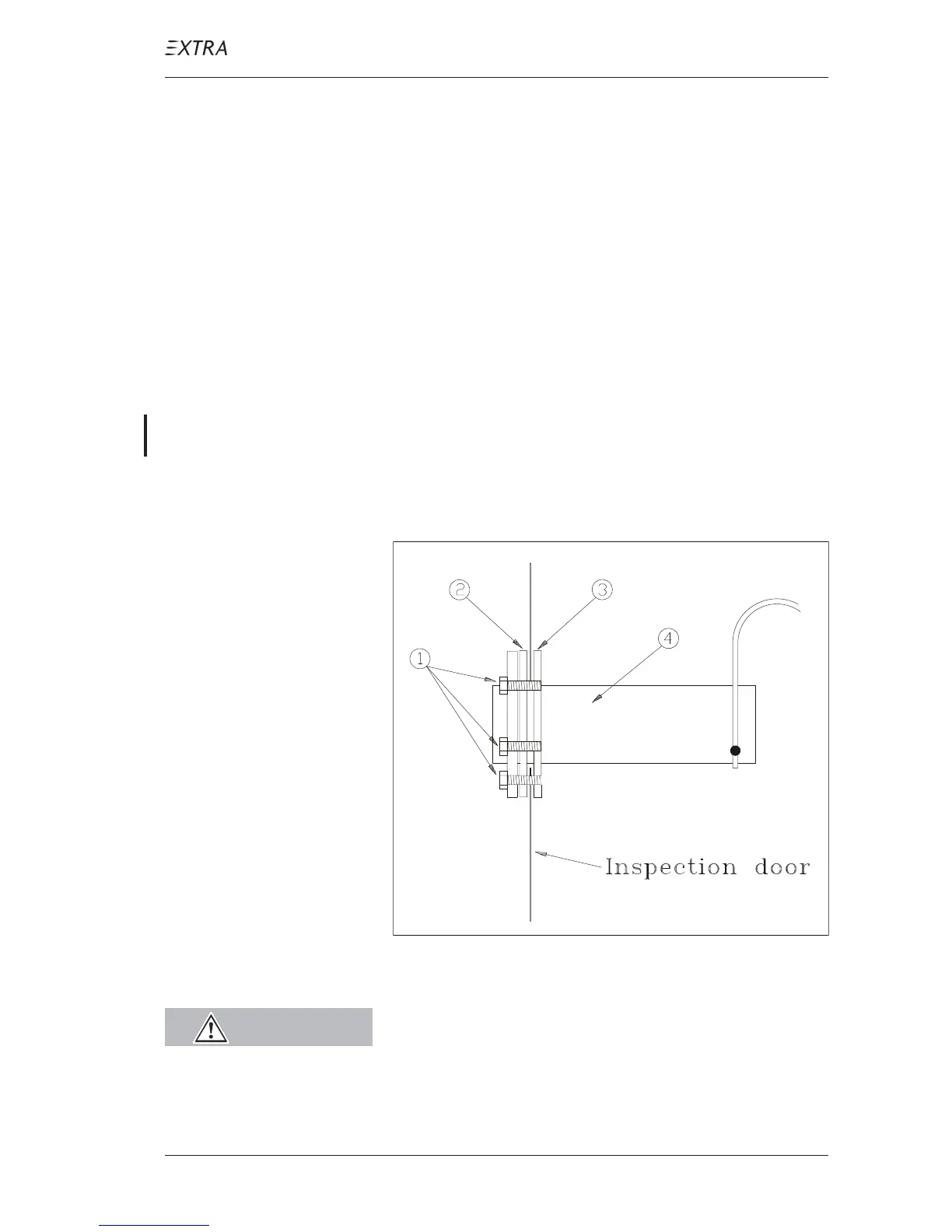

Figure 12 Fuel Quantity Transducer (Wing Tank)
Removal/Installation
W A R N I N G Stripping solvents can be toxic and volatile. Use only
in well ventilated areas. Avoid physical contact with
solvent and do not inhale vapors. Keep solvent
containers covered when not in use.
