CHAPTER 27
PAGE 16
PAGE DATE: 12. June 2015
MAINTENANCE MANUAL EXTRA 300LT
b Check if control rod 1 (Figure 6) has several degrees radial
play when control stick is in extreme positions.
c Check if the control stick travel is symmetrically to each
side.
14 Contact the manufacturer when detecting faulty results.
15 Reinstall wing access panels.
27-10-02 Spades
Rigging
For roll trim the spade rigging angle of incidence has to be
changed. Insert washer(s) between the spade and the mount-
ing plate (refer to Figure 13). For example: When the
aircraft rolls to the left, insert washer(s) at the front attach-
ment bolt of the right spade.

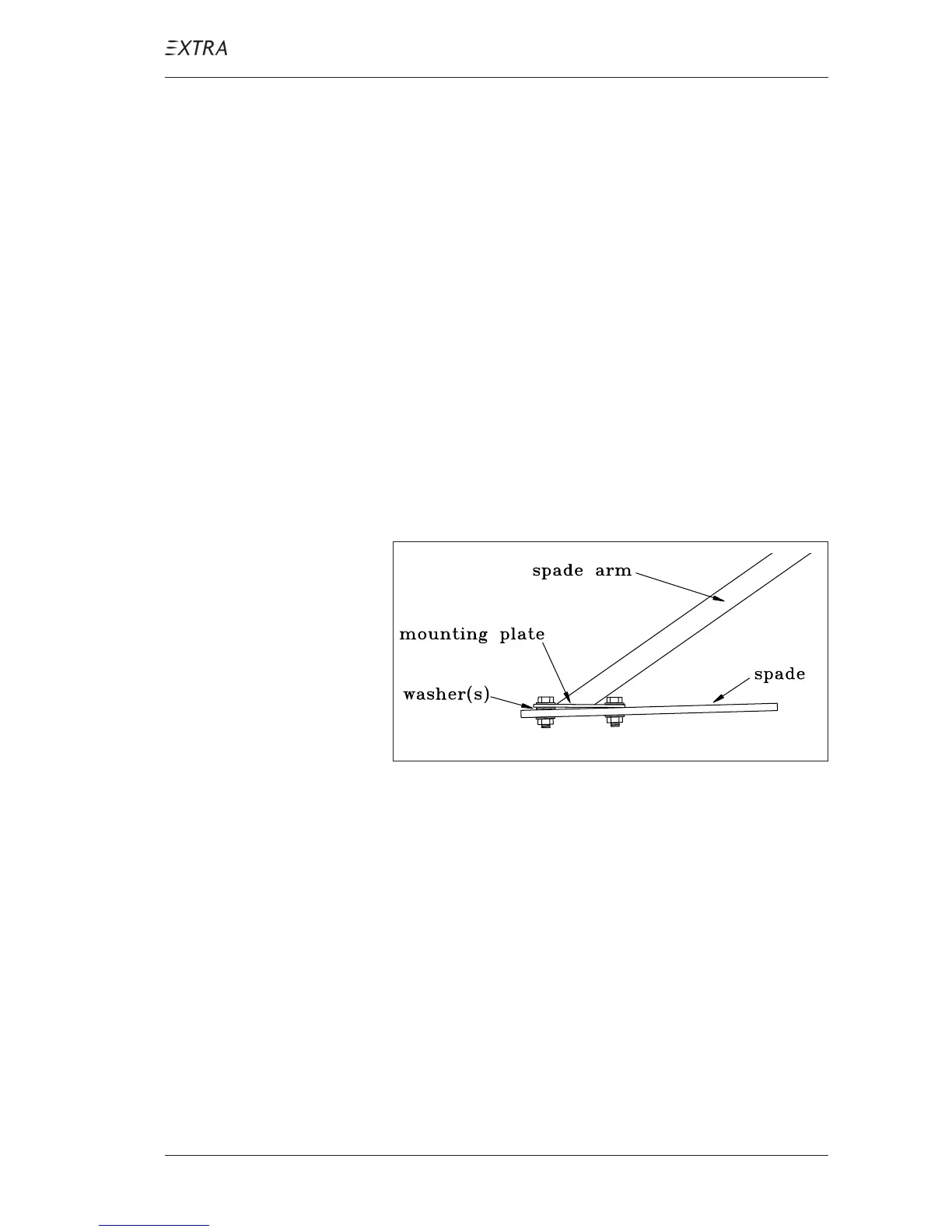

Figure 13 Spade Rigging
