CHAPTER 27
PAGE 21
PAGE DATE: 21. March 2014
MAINTENANCE MANUAL EXTRA 300LT
1 Remove the respective access panels as per Chapter 51.
2 Secure the rudder (4, Figure 14) in 0°-position.
3 Mount the pre-assembled eye end of the longer control ca-
ble to the LH cable fastening (8).
4 Check that the 550 mm teflon protective hose is on the pre-
assembled control cable.
5 Thread the cable through the "S"-shaped tube at the pedal
and the pulley (7).
6 Adjust rear rudder pedals (1) in rearmost position.
7 Let the front end of the protective hose extend to 20 mm in
front of the pedal "S"-tube.
8 Slip 2 NICOPRESS (National Telephone Supply Co., Cleve-
land Ohio) 18-3-M or 28-3-M sleeves (5) and 100 mm
771095 shrinking sleeve on the control cable.
9 Thread the free end of the control cable through the rear
fairleads (6) and the hole in the fabric to the tail.
10 Slip 80 mm 771095 shrinking sleeve and 850 mm teflon
protective hose on the control cable end. The protective hose
should extend 120 mm beyond the first fairlead inside the
fuselage.
11 Adjust rear pedals 78 mm aft of the foremost position.
12 Fix rear pedals in almost vertical position (81° relative to
the footrest). Use a template as shown in Figure 15.
7
8
m
m
2
3
0
m
m
81°
Template Rear pedal

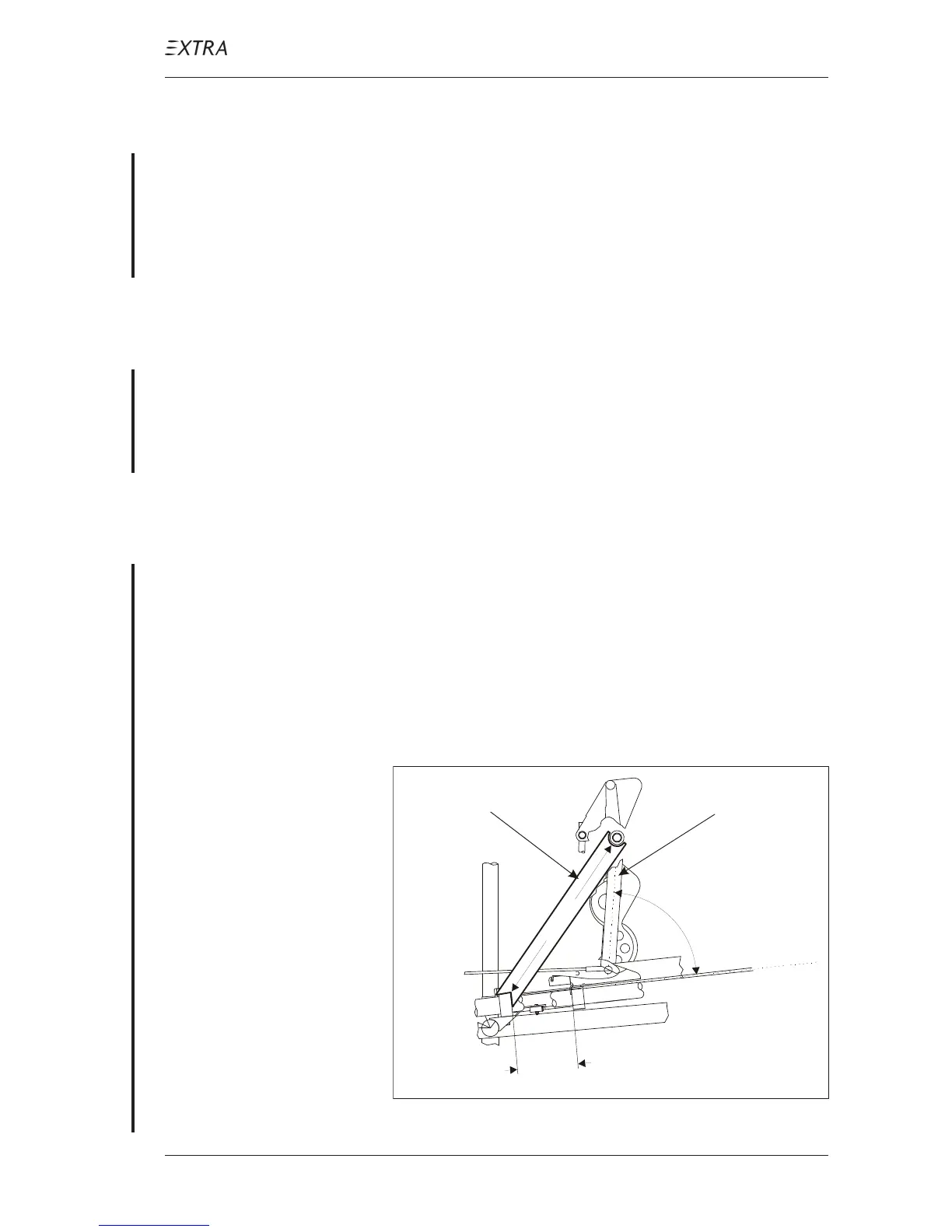

Figure 15 Rear Pedal Position and Template
