Extra 300LT - Layer Sequence Bottom Half of the Engine Cowling; Up to SN LT040

To Next Page

To Previous Page

CHAPTER 53

PAGE 18

PAGE DATE: 24. February 2017

MAINTENANCE MANUAL EXTRA 300LT

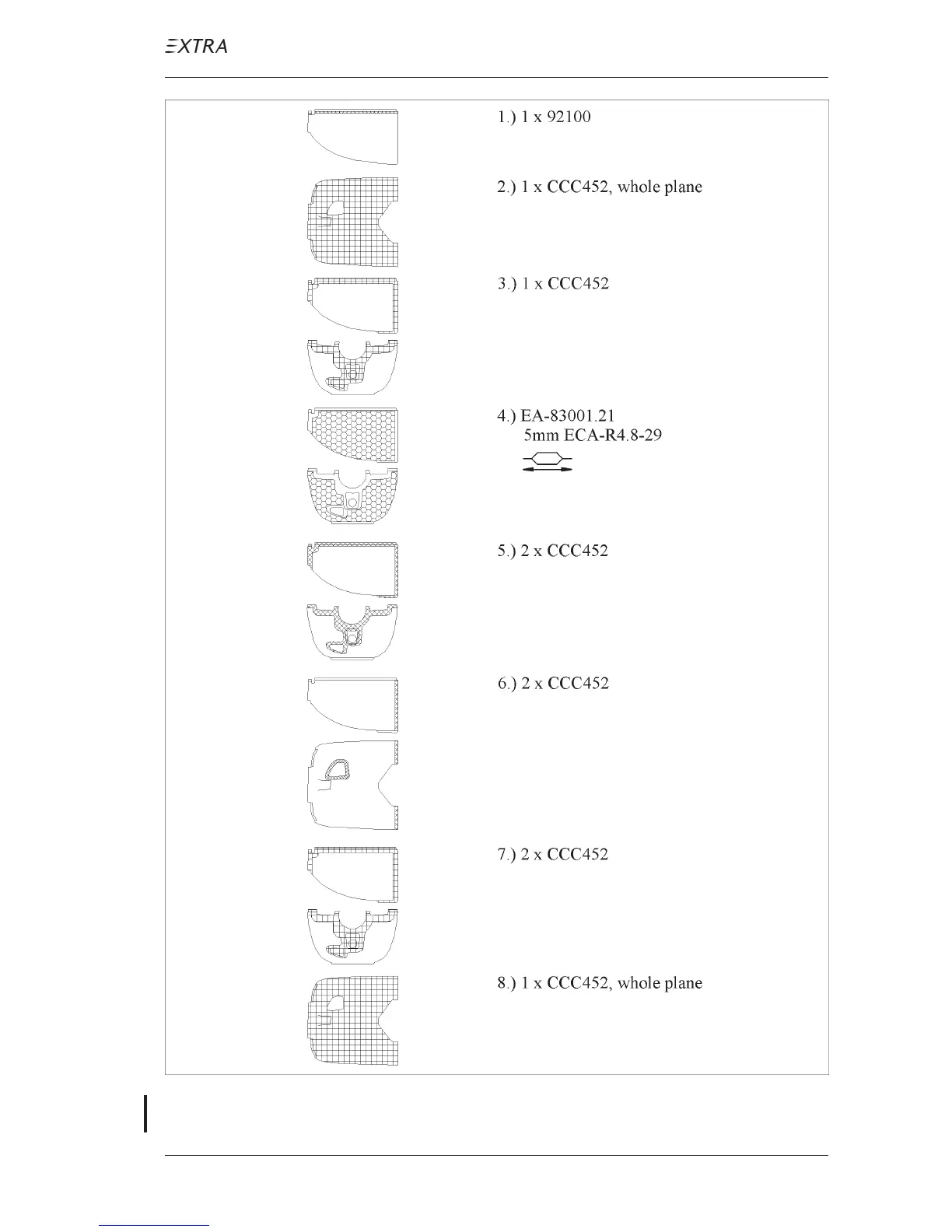

Figure 13 Layer Sequence Bottom Half of the Engine Cowling

up to SN LT040
