Extra 300LT - Fuel Quantity Transducer (Center Tank)

CHAPTER 28
PAGE 25
PAGE DATE: 7. July 2010
MAINTENANCE MANUAL EXTRA 300LT

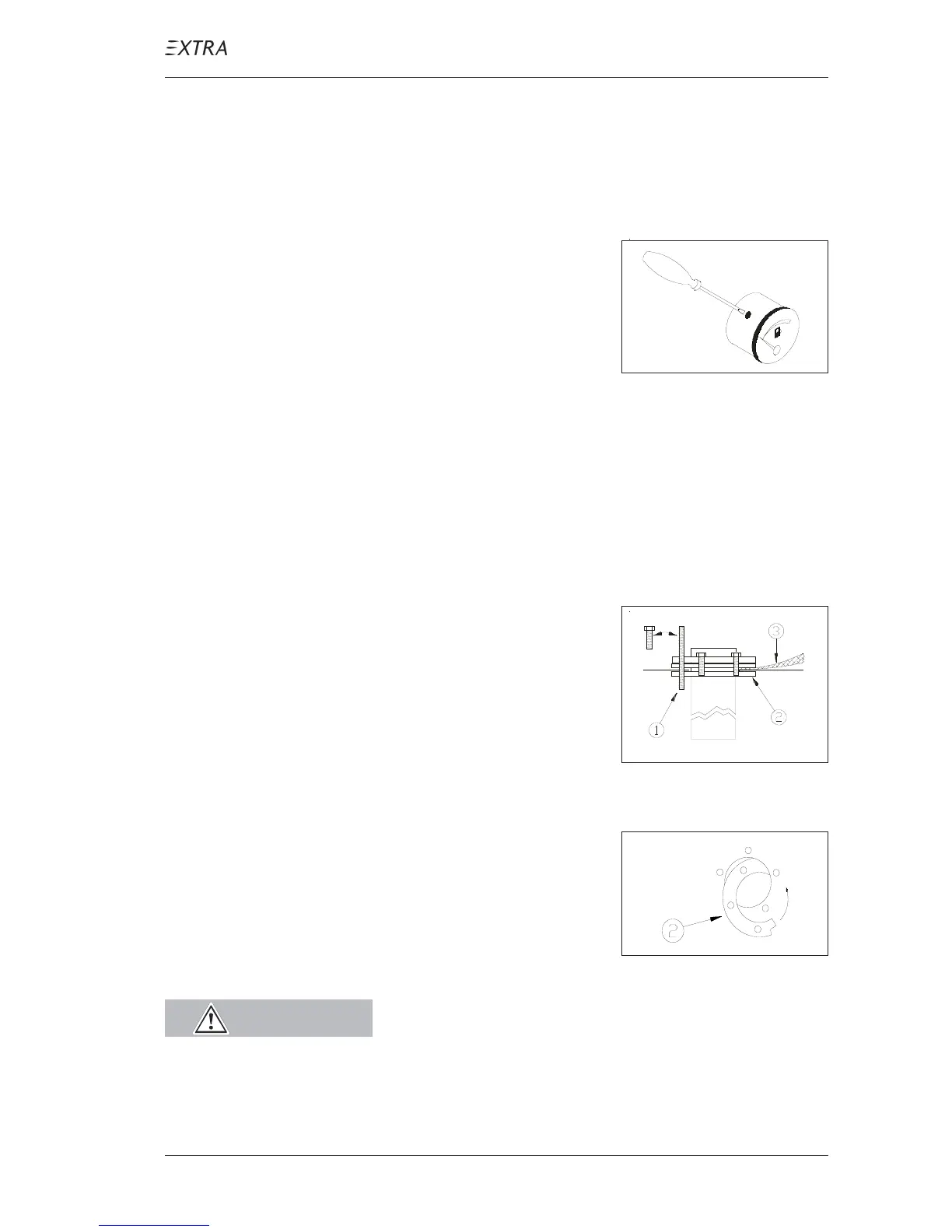

Calibration (Center Tank)
1 Drain the fuel system (refer to chapter 12-10-02).
2 Remove the fuel quantity indicator following step 2 of chap-
ter 28-40-01.
3 Bring indicator to „0“-posi-
tion by turning the adjust-
ment screw.
4 Reinstall the fuel quantity indicator.
28-40-03 Fuel Quantity Transducer (Center Tank)
Removal/Installation
1 Drain the fuel system as per chapter 12-10-02.
2 Loosen one bolt and replace
by a M5 threaded rod (1) for
securing the slotted retainer
ring (2).
3 Remove the other bolts and
the ground bonding lead (3).
4 Remove the transducer and
the sealing ring while holding the threaded rod.
5 Remove the threaded rod and
turn out the slotted retainer
ring (2).
W A R N I N G Stripping solvents can be toxic and volatile. Use only
in well ventilated areas. Avoid physical contact with
solvent and do not inhale vapors. Keep solvent
containers covered when not in use.
