CHAPTER 31
PAGE 8
PAGE DATE: 24. February 2017
MAINTENANCE MANUAL EXTRA 300LT
31-10-03 Front Instrument Panel

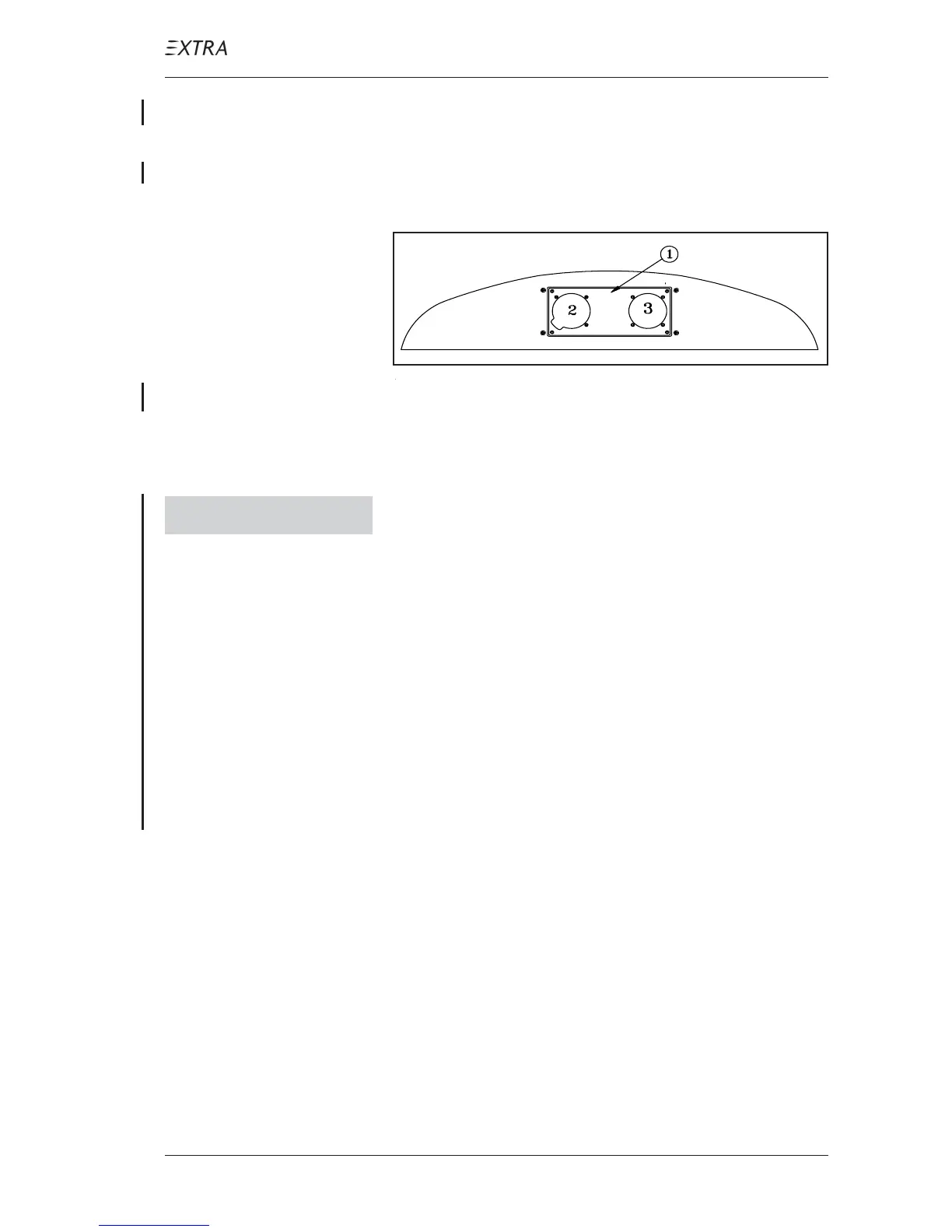

An altimeter and airspeed indicator (2, 3, Figure 4) are
installed on a separate removable instrument panel (1) in the
main fuselage cover in front of the front pilot.
Figure 4 Front Instrument Panel
Removal/Installation
N O T I C E Hold instruments and panel by hand to prevent from
falling down when removing the instrument panel at-
tachment bolts.
1 Remove DIN 912 M4x5 bolts (2, Figure 5) and shock mounts
(1) with LN 9348 M4 stop nuts.
2 Pull the front instrument panel with instruments aft some
centimeter.
3 Disconnect the Pitot resp. static lines from the instruments
(7). Mark lines for later identification.
4 Remove instrument panel (5).
5 Reverse procedure for installation.
