CHAPTER 28
PAGE 19
PAGE DATE: 7. July 2010
MAINTENANCE MANUAL EXTRA 300LT
28-20-03 Gascolator
Removal/Installation
1 Drain the fuel system per chapter 12-10-02.
2 Disconnect the fuel lines from the gascolator.
3 Loosen the knurled nut (1, figure 9).
4 Remove the mounting bracket (2).
5 Remove the fuel reservoir (3) and the sealing ring (4).
6 Remove the strainer (5) and the gascolator cover (6).
7 Install in reverse sequence of removal.

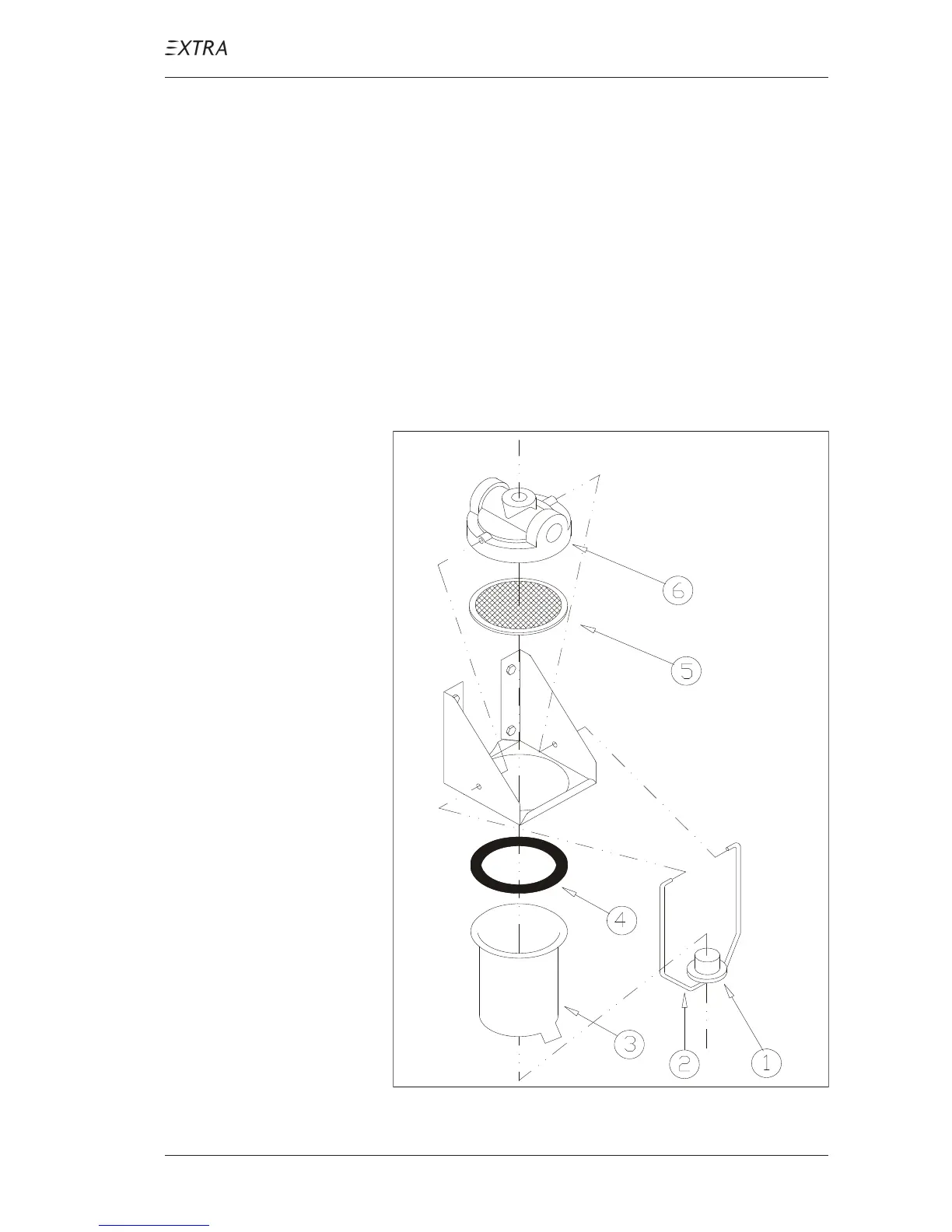

Figure 9 Gascolator Removal/Installation
