CHAPTER 28
PAGE 20
PAGE DATE: 7. July 2010
MAINTENANCE MANUAL EXTRA 300LT
28-20-04 Electrical Boost Pump
Removal/Installation
1 Drain the fuel system as per chapter 12-10-02.
2 Disconnect the plug and the fuel lines from the boost pump.
3 Loosen the screw clamps (1, figure 10).
4 Remove the boost pump (2).
5 Install in reverse sequence of removal.

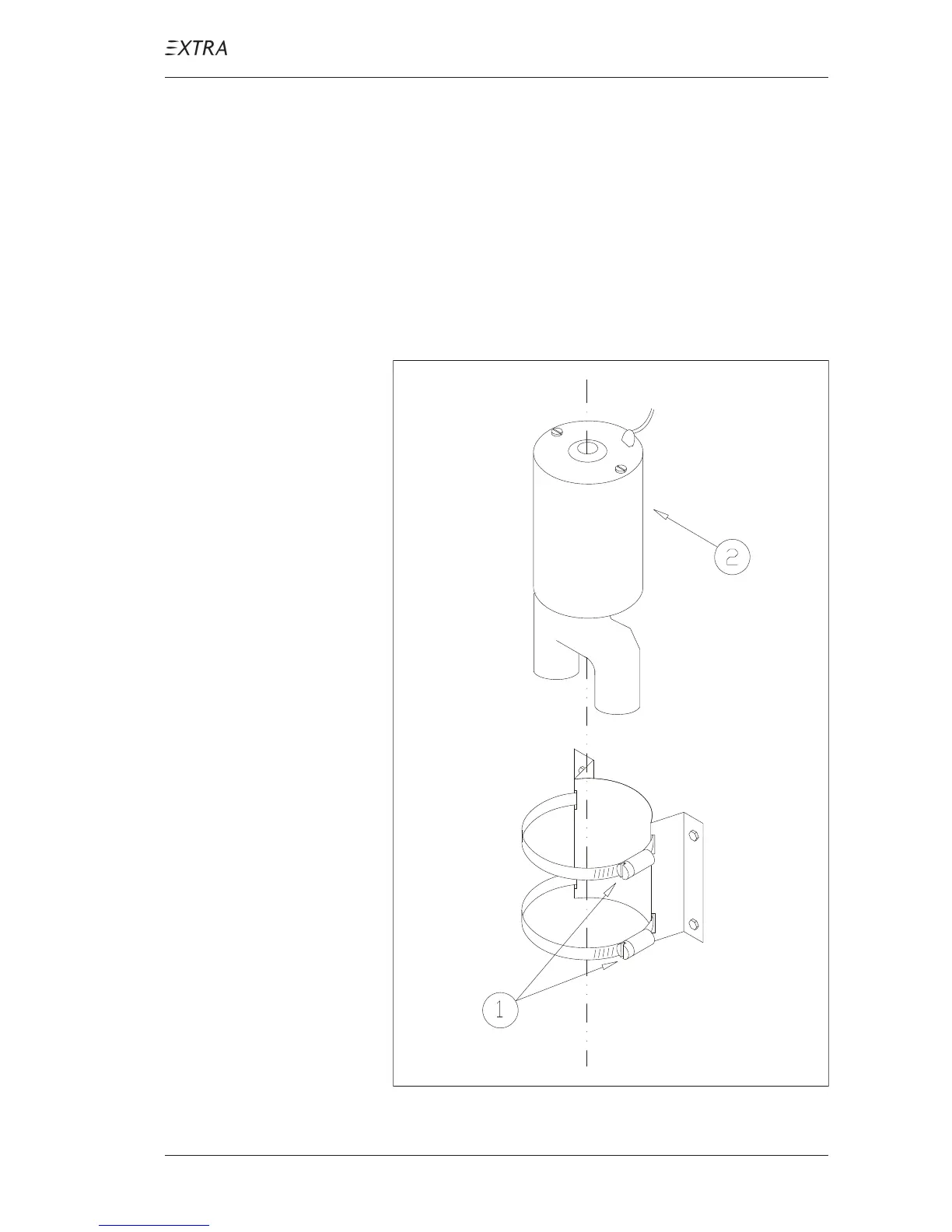

Figure 10 Boost Pump Removal/Installation
