Extra 300LT - Drain and Vent Holes

CHAPTER 5
PAGE 8
PAGE DATE: 21. March 2014
MAINTENANCE MANUAL EXTRA 300LT

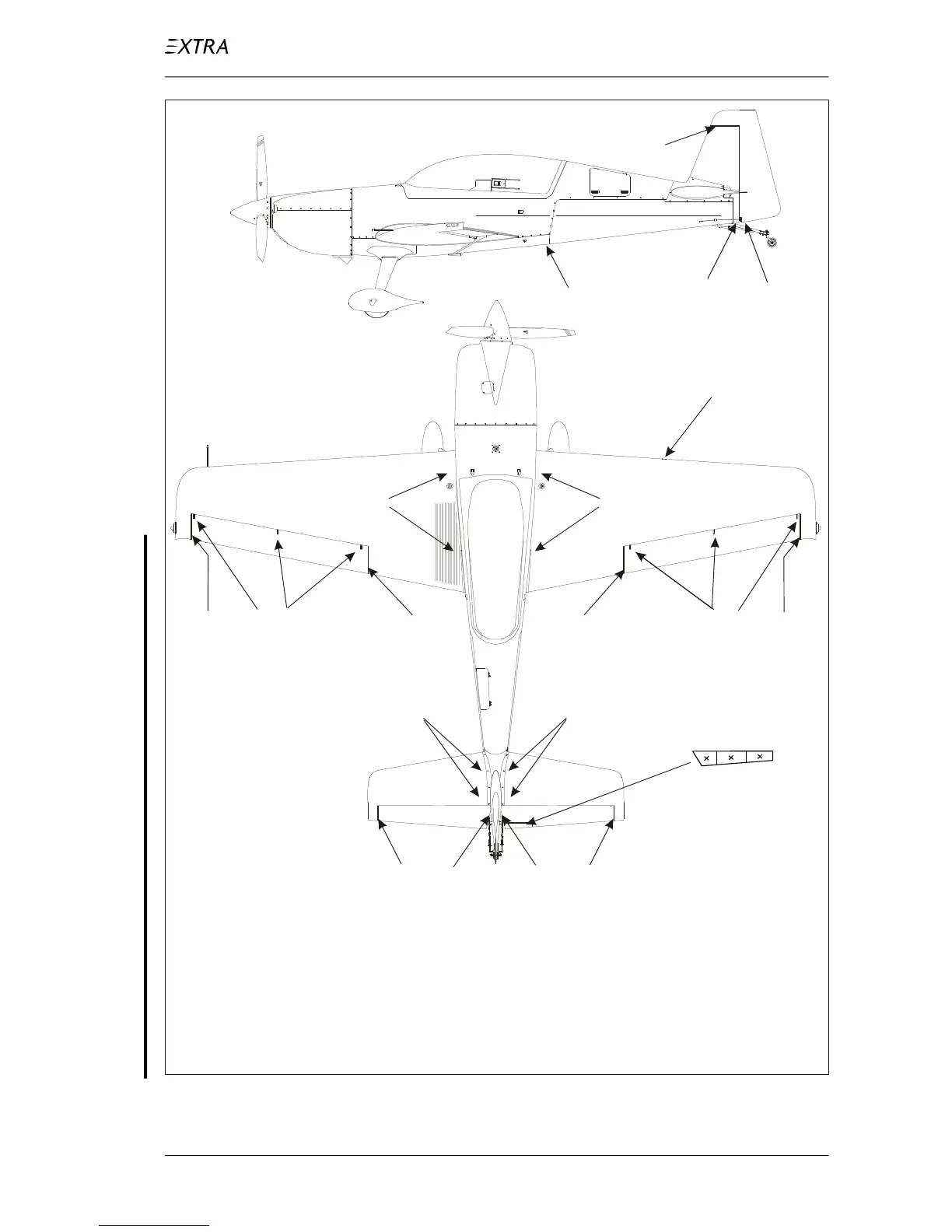

Figure 1 Drain and Vent Holes
SCHEDULED MAINTENANCE CHECKS
1
2
3
4
5
10
10
11
11
12
12
13
14
13
Legend:
1. Rudder horn root rib web
2. Rudder root rib web
3. Tail (two holes)
4. Bottom fuselage cover (central hole)
5. Lower wing shell at
stall warn transducer station
in front of the main spar
6. Lower wing shell at root section
7. Wing tip trailing edge at aileron cutout
6
6
7
8
9
7
8
9
8. Nose rib web of aileron
(hinge gaps, 1 hole each)
9. Nose rib web of aileron
(hinge gaps, 2 holes each)
10. Aileron root rib at trailing edge
11. Horizontal stabilizer root rib web
12. Root rib of elevator
13. Stabilizer tip
14. Lower shell of trim tab (3 holes)
