CHAPTER 27
PAGE 23
PAGE DATE: 21. March 2014
MAINTENANCE MANUAL EXTRA 300LT

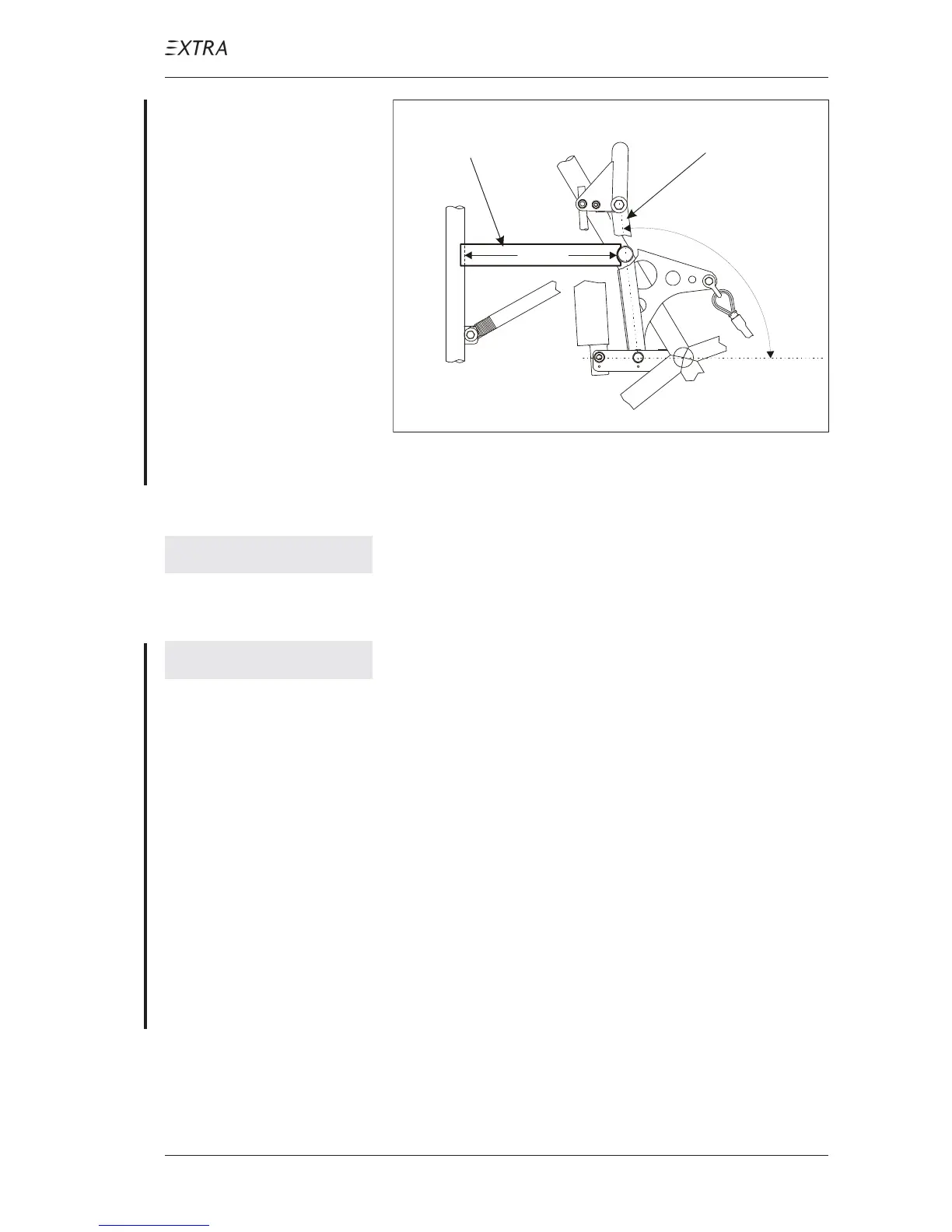

Template
Front pedal
169 mm
97°
Figure 16 Front Pedal Position and Template
24 Stretch the shorter control cable with a force that is equiva-
lent to the tractive effort of the front pedal retracting spring.
I M P O R T A N T Clamping has to be performed in accordance with the
Service Bulletin 300-1-93 and the Instruction No. 32 of
the National Telephone Supply Co., Cleveland Ohio.
I M P O R T A N T To prevent the cables from twisting, clamp the sleeves
in the same plane.
25 Consider that the clamping area shall be 195 mm aft of the
rear pulley and clamp the sleeves.
26 Cut the free end of the cable (20 mm behind the sleeve).
27 Slip the shrinking sleeve on the rear sleeve and heat up with
a heat gun (the front sleeve can be left free for visual control
of the cable-to-cable connection).
28 Remove the front pedal securing device.
29 Follow the steps 3 to 28 for the RH control cable.
30 Remove rudder securing devices.
31 Check free travel of rudder.
