CHAPTER 28
PAGE 9
PAGE DATE: 7. July 2010
MAINTENANCE MANUAL EXTRA 300LT
28-10-03 Acro Tank Flop Tube
Removal/Installation
1 Drain the fuel system as per chapter 12-10-02.
2 Disconnect the hose (5, figure 3) and the elbow fitting (4).
3 Remove the acro tank as per chapter 28-11-02.
4 Loosen the flop tube fitting (3) and take the flop tube as-
sembly (2) out of the acro tank (1).
W A R N I N G Stripping solvents can be toxic and volatile. Use only
in well ventilated areas. Avoid physical contact with
solvent and do not inhale vapors. Keep solvent
containers covered when not in use.
5 Clean the sealing surfaces mechanically and with Acetone.
N O T E If the flop tube assembly has to be replaced install a
complete new assembly.
6 Install in reverse sequence of removal after applying Loctite
577 to the flop tube fitting thread.

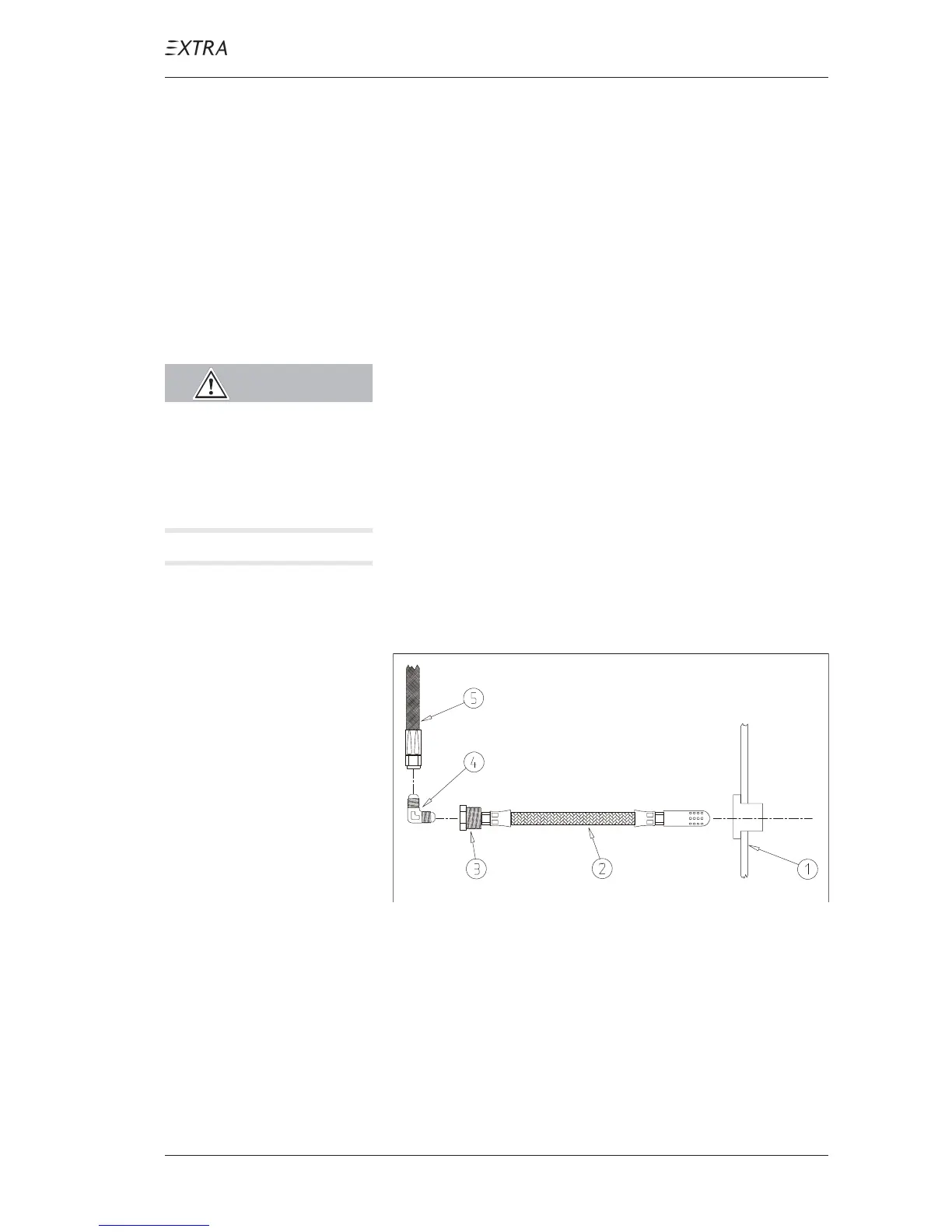

Figure 3 Flop Tube Removal/Installation
