MAINTENANCE MANUAL EXTRA 300LT
32-40-02 Wheel Fairing
The wheel fairings are made from carbon fiber with honey-
comb. Each wheel fairing consists of the fairing body, a
brake inspection panel on the inboard side and a tire inflation
access cap on the outboard side.

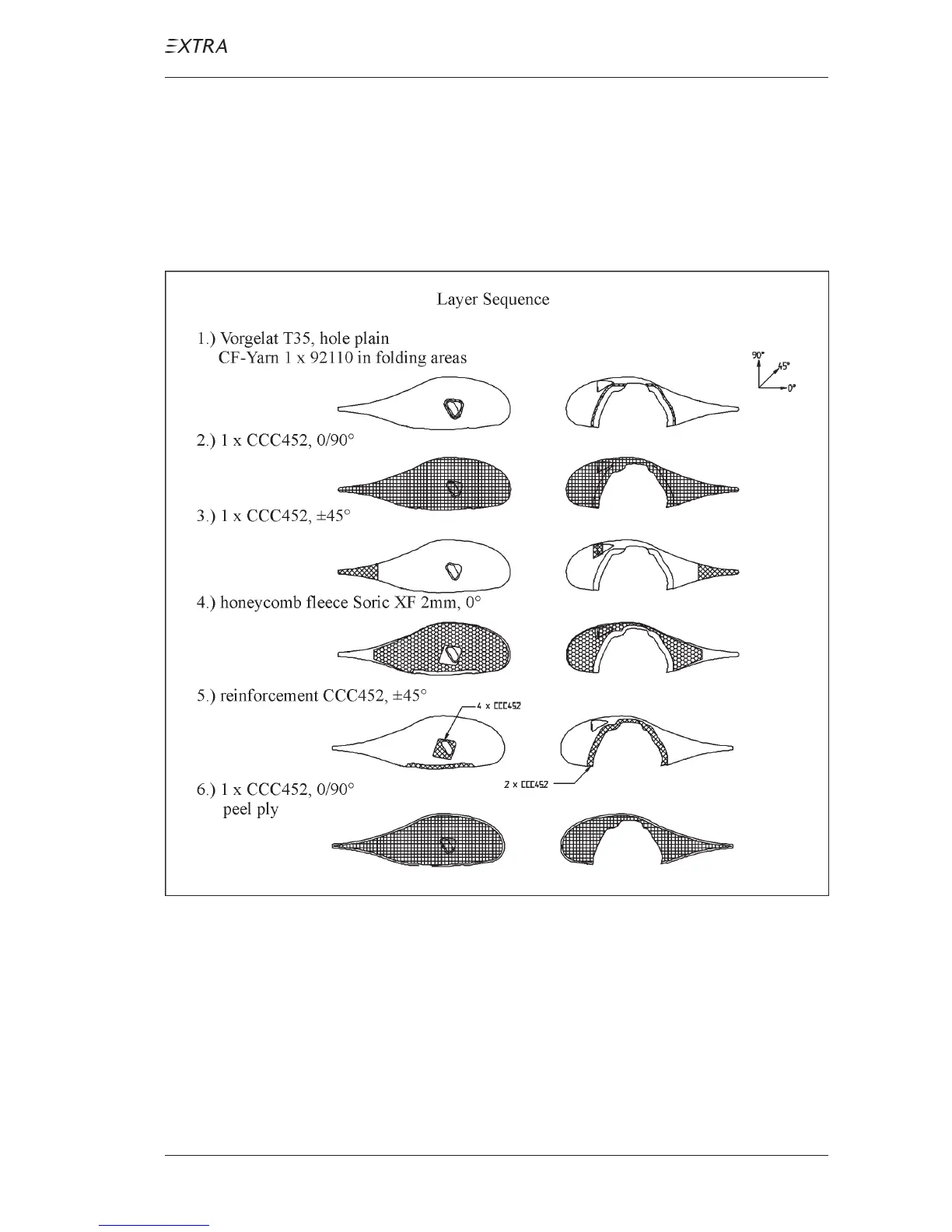

Figure 5 Layer Sequence Wheel Fairing
Removal/Installation
The wheel fairings are screwed.
When installing the wheel fairing ensure a gap of minimum
1.5 mm from the fairing surface to the landing gear spring.
Correct position if necessary prior to fastening the fairings.
