5 Clean sealing surfaces mechanically and with Acetone.
6 Install in reverse sequence of removal after applying 3M
Brand Fuel Resistant Coating 776 (3M, St. Paul, USA) for
sealing to both sides of the sealing ring and the grooves in-
side the tank.
7 Check proper shape and installation of float wire as per para-
graph 28-40-05.
28-40-05 Float Wire
Adjustment
1 Remove the lever-type tank unit as per chapter 28-40-04.
N O T E Figures 13 and 14 are mirror inverted also valid for
the float wire in the RH wing tank if the optional MVP-
50P is installed.
2 Remove the float wire and bend it in form like shown in the
following figure 13:

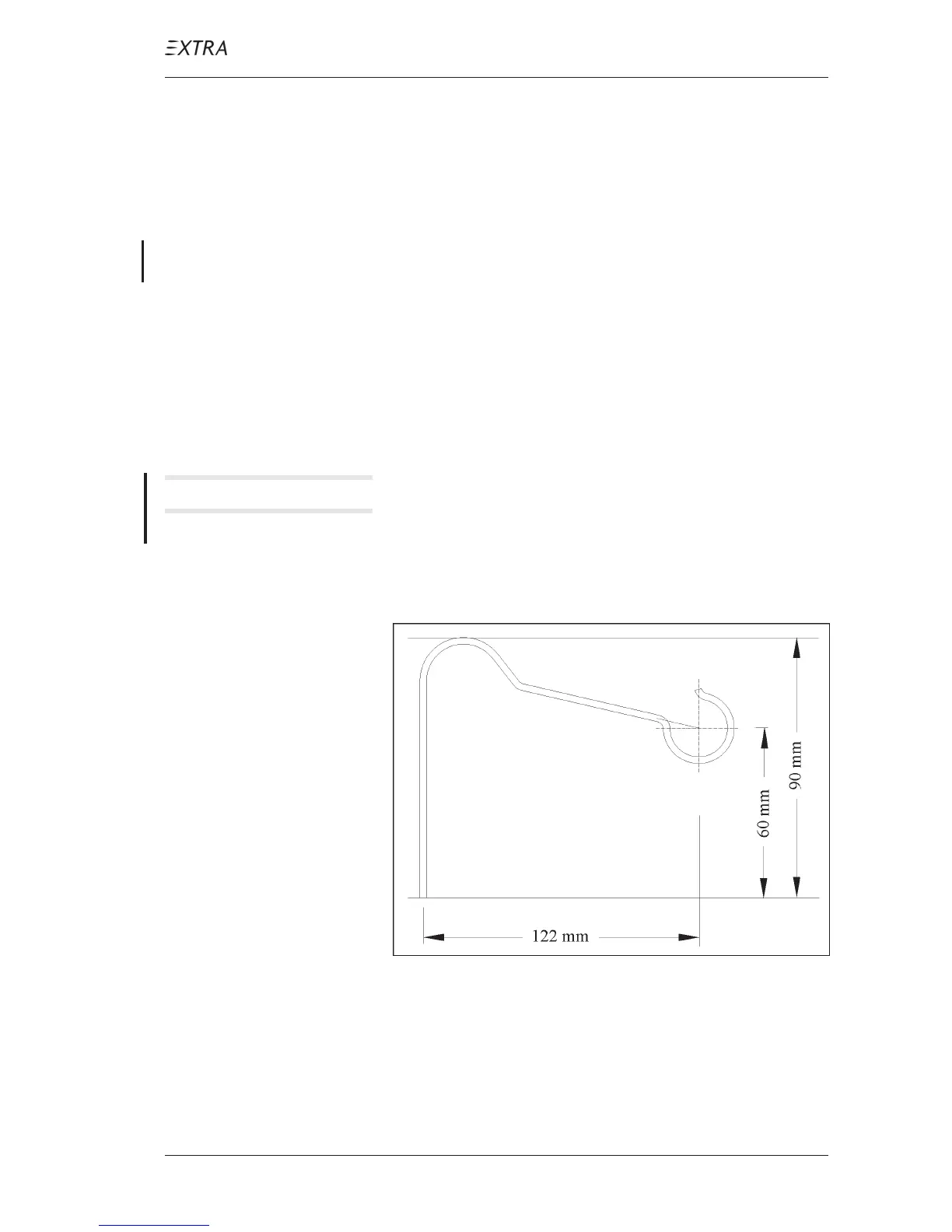

Figure 13 Float Wire Adjustment
3 Reinstall the float wire observing the dimensions shown in
figure 14, pay attention to a proper alignment and tighten
well the attachment bolt.
