Extra 300LT - Lubrication Chart 100 Hours

To Next Page

To Previous Page

CHAPTER 5

PAGE 11

PAGE DATE: 12. June 2015

MAINTENANCE MANUAL EXTRA 300LT

SCHEDULED MAINTENANCE CHECKS

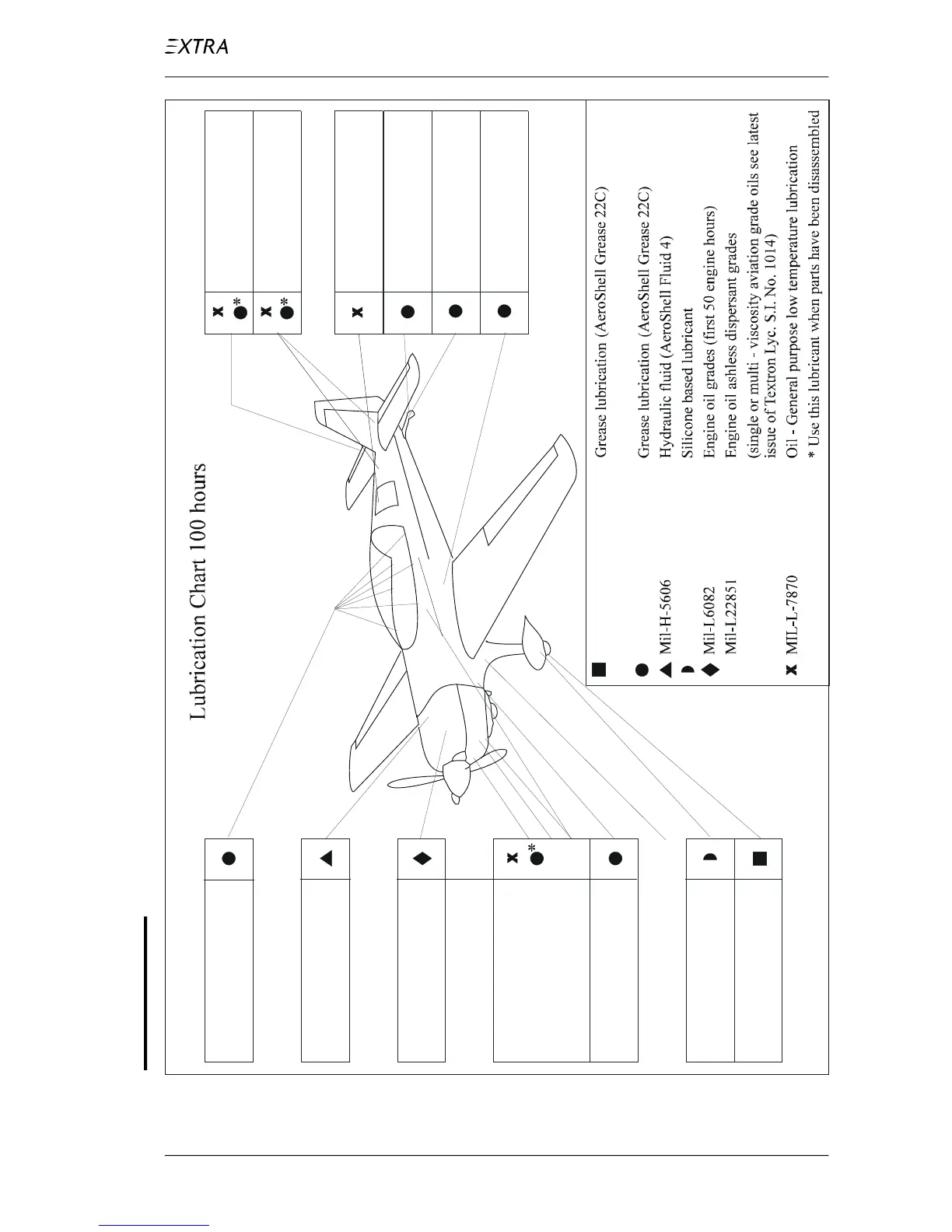

Figure 4 Lubrication Chart 100 hours

Baggage door hinges

Tail wheel

(6” soft type)

Brake fluid

reservoir

Engine oil

Engine controls:

Governor

Mixer

Throttle

Landing gear

centering pin

Main wheel

bearings

Trim flap hinges

Trim actuation

lever bolts

Tail wheel steering

Torque tube

bearing

Canopy hinges and

latching mechanism

Brake anchor bolts

MIL-PRF-81322F o

r later

MIL-PRF-81322F or

later

Mobil Aviation Grea

se SHC 100
