CHAPTER 24
PAGE 3
PAGE DATE: 21. March 2014
MAINTENANCE MANUAL EXTRA 300LT
24-00-00 GENERAL
This chapter describes the electrical power system and its
operation. This covers the battery system and the alternator
system.
The electrical installations on the firewall are shown on
Figure 1, Sheet 1 (up to SN LT004). From SN LT005 these
installations are combined in the electrical main board
(Figure 1, Sheet 2), which is attached to the lower left
fuselage structure just behind the firewall.

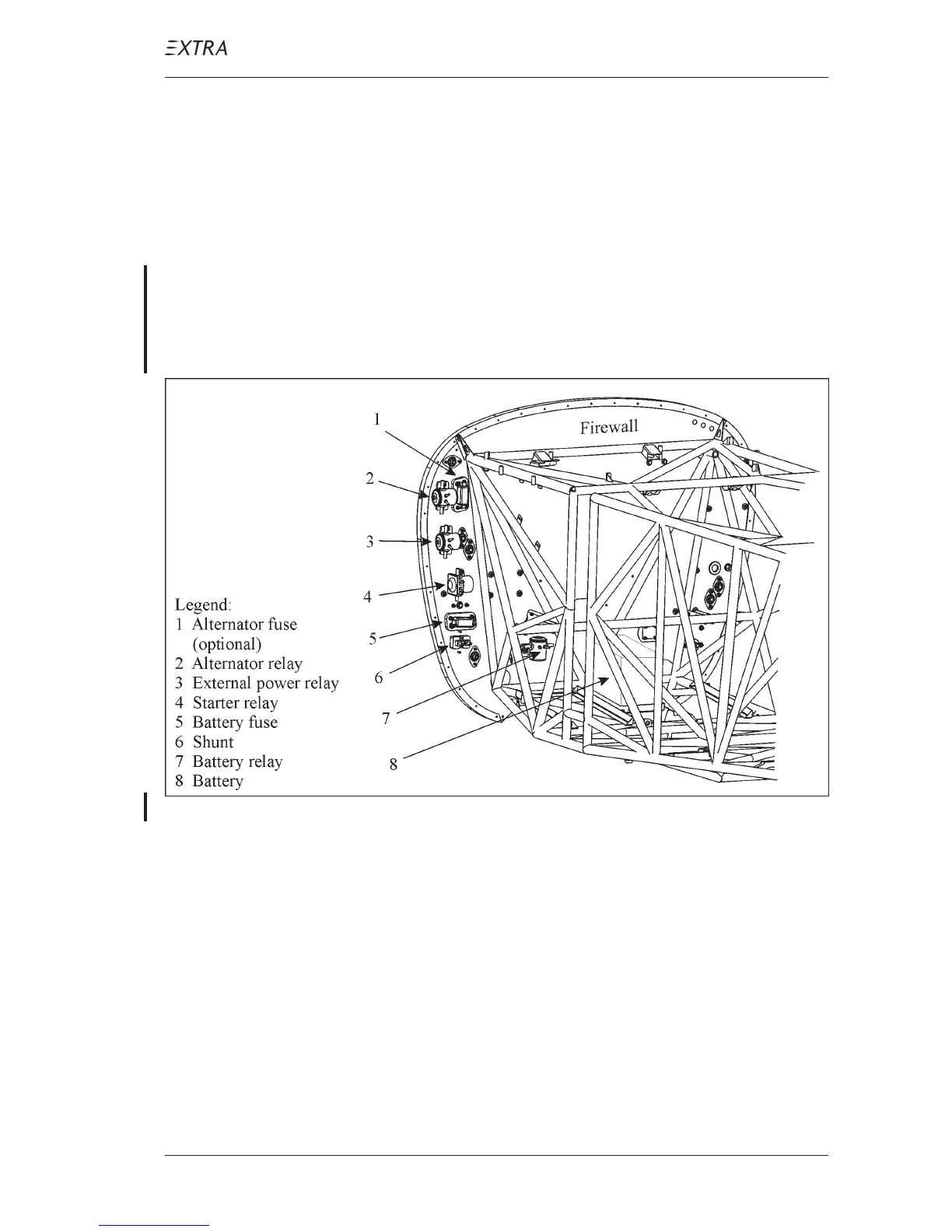

Figure 1, Sheet 1 Electrical Installations in Firewall Area
