CHAPTER 31
PAGE 11
PAGE DATE: 24. February 2017
MAINTENANCE MANUAL EXTRA 300LT
31-10-05 Front Instrument Panel with Garmin G5
As an option the front instrument panel (1, Figure 6) can be
equipped with a Garmin G5 electronic flight instrument (2)
and further instruments (3 & 4).
1
2
3
4

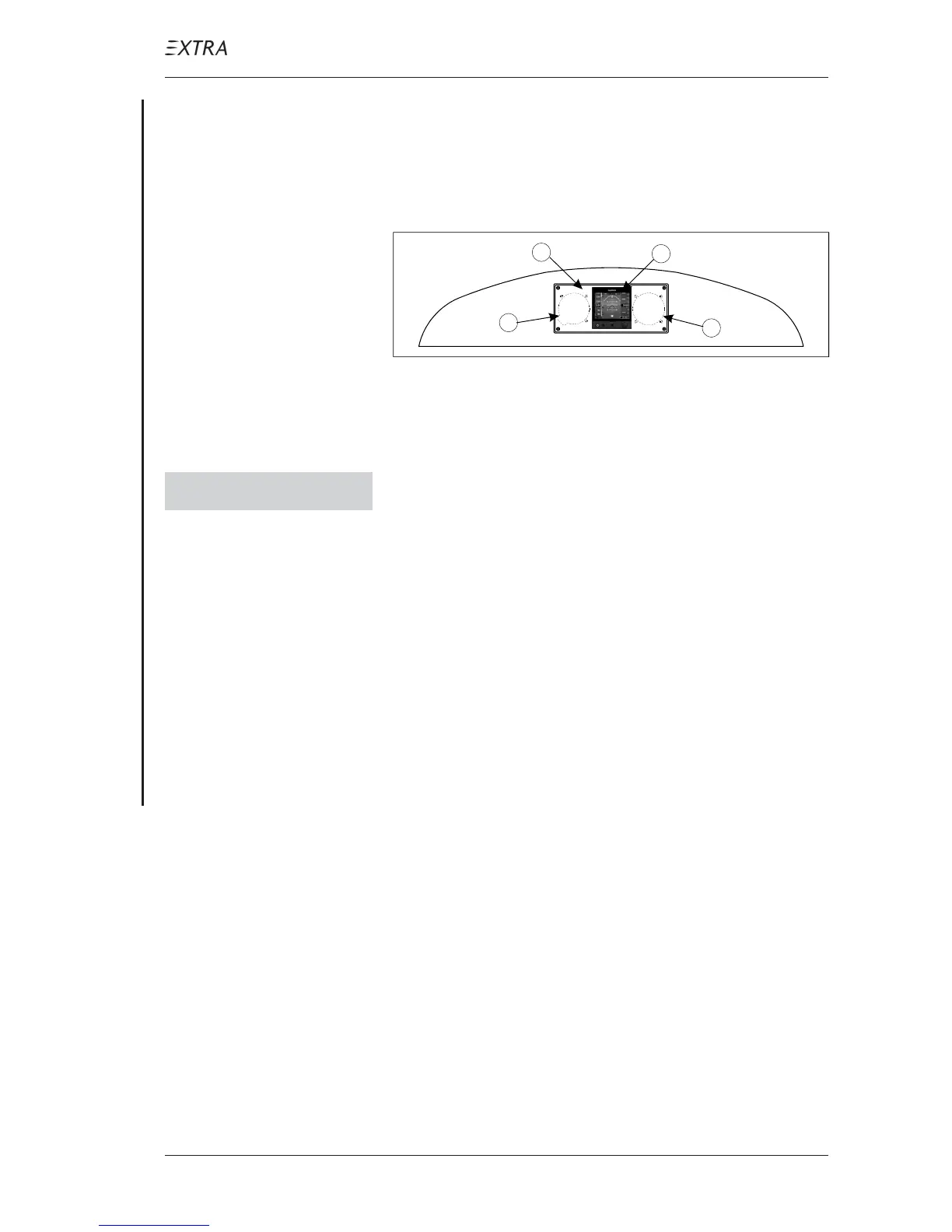

Figure 6 Front Instrument Panel with Garmin G5
Removal/Installation
N O T I C E Hold Garmin G5 and panel by hand to prevent from
falling down when removing the instrument panel at-
tachment screws.
1 Remove the AN526 C-1032-R6 instrument panel attachment
screws (3, Figure 7).
2 Pull the front instrument panel with instruments aft some
centimeter.
3 Disconnect the pitot resp. static lines from the Garmin G5
(4). Mark lines for later identification.
4 Remove instrument panel (2).
5 Reverse procedure for installation.
