CHAPTER 77
PAGE 3
MAINTENANCE MANUAL EXTRA 300LT
PAGE DATE: 7. July 2010
77-00-00 GENERAL
See also sub-Chapter 77-40 when MVP-50P is installed.
The following engine instruments are installed in the EXTRA
300LT:
1 tachometer
2 manifold pressure gauge
3 cylinder head temperature gauge
4 exhaust gas temperature gauge
Generally engine data is routed electrically from the engine
sensors (refer to Figure 1) to the instruments. However, the
manifold pressure line is routed through the firewall and
directly fitted to the instrument. The engine data are indicated
to the pilot in command.

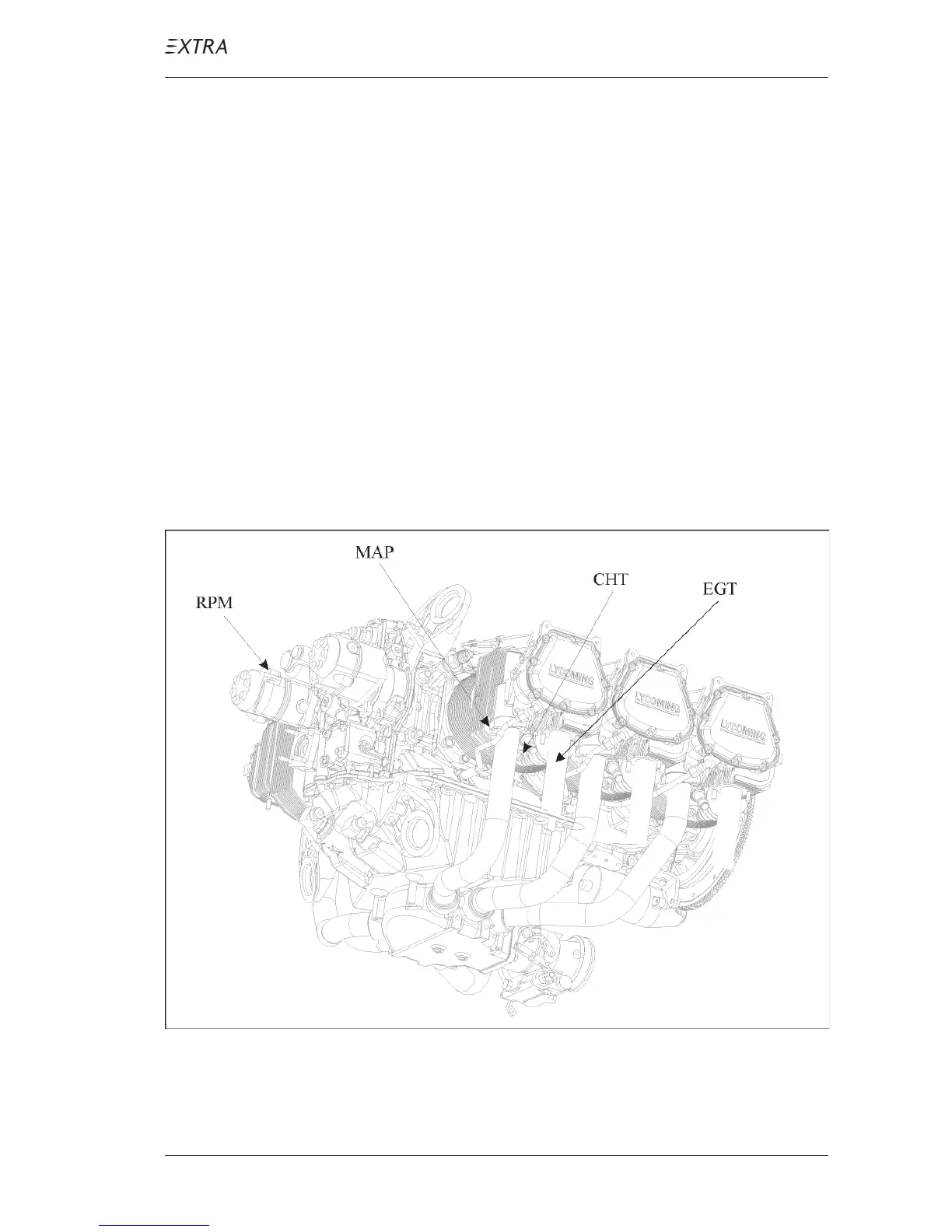

Figure 1 Engine Sensor Locations
