77-41-01 Main Engine Screen
The MVP-50P Main Engine Screen (see Figure 4) displays
the primary engine and aircraft instruments. This screen is
displayed on power-up and is the screen that should be
monitored for most of the flight.

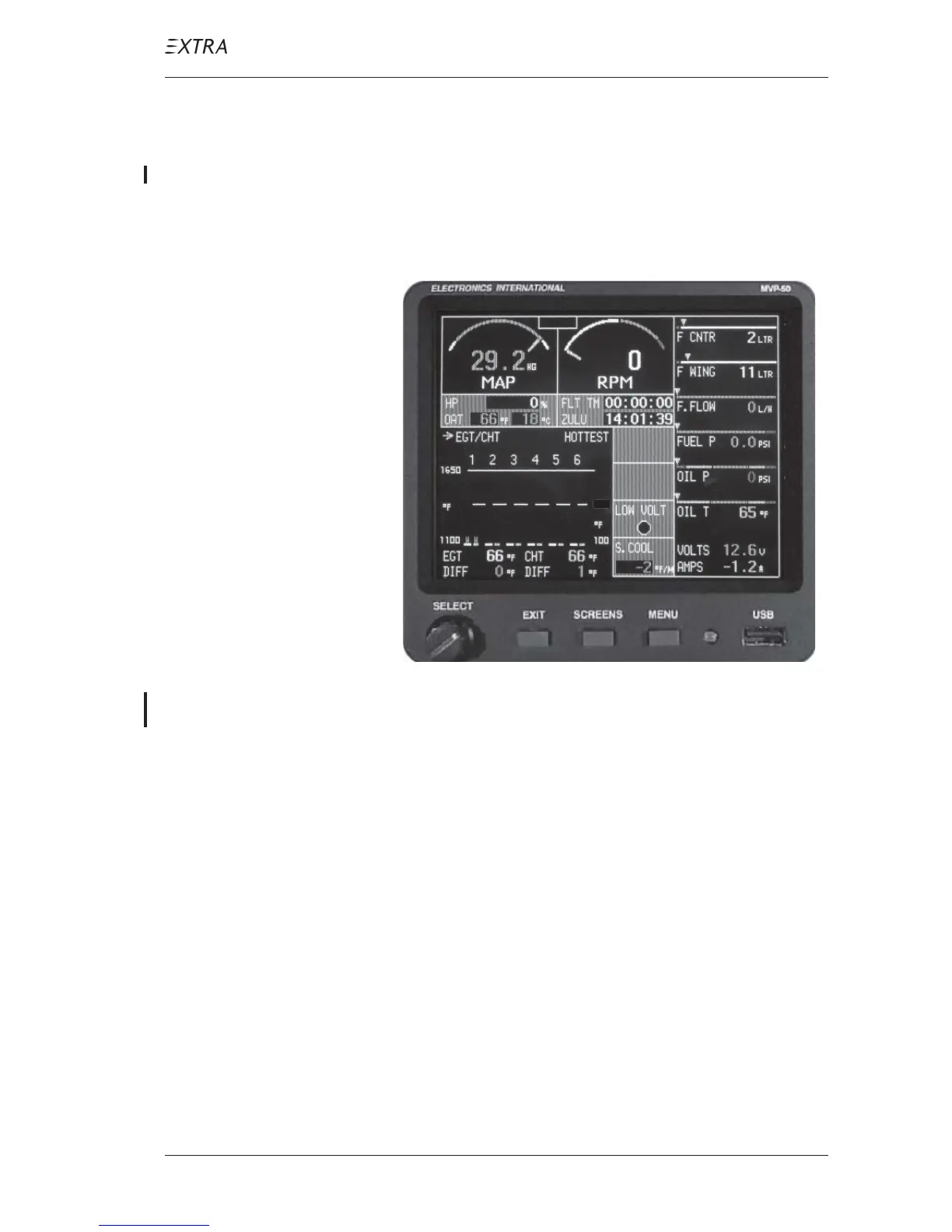

Figure 4 MVP-50P with Main Engine Screen
Buttons operate as follows:
Push-Select Moves the cursor, selects functions and
changes digits.
Exit Exits out of a field or screen and returns the
display to the Main Engine Screen.
Screens Switches the display between screens as
selected in the Screens Button Setup.
Menu Displays a menu (if available) for the
current screen.
Removal/Installation
Follow the procedure for typical instruments in Chapter 31.
