78-10-03 Gasket
Replacement
1 Remove exhaust system per chapter 78-10-00.
2 Replace gaskets
3 Reinstall exhaust system in reverse sequence of removal
78-10-04 Heat Shield
Replacement
Refer to figure 2
1 Remove cowling per chapter 71.
2 Remove heat shield worm drive hose clips.
3 Replace heat shield.
4 Reinstall in reverse sequence of removal.

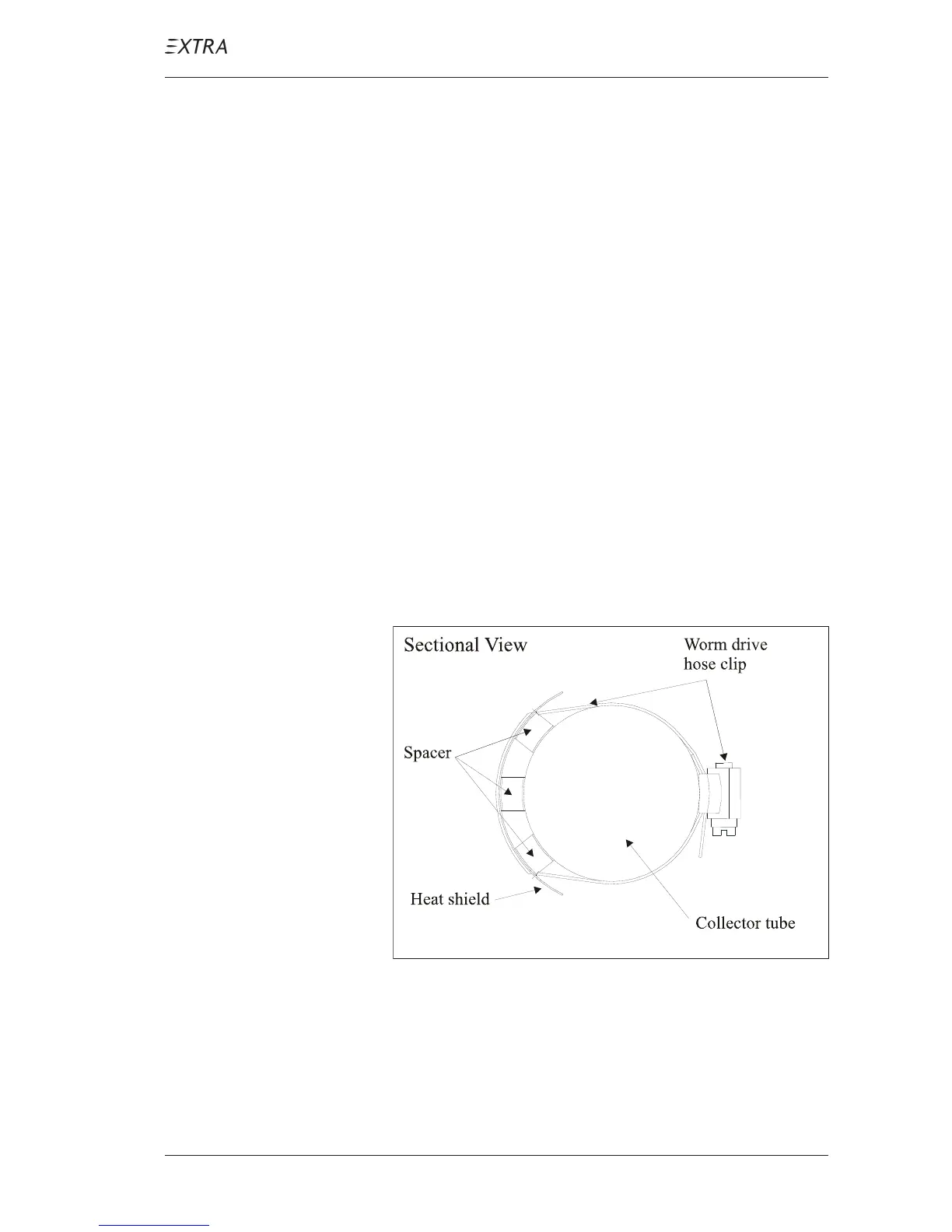

Figure 2 Heat Shield Replacement
