Operating manual.
CNC 8060
CNC 8065
7.
JOG MODE. PART CENTERING (MILL MODEL)
Data programming.
·148·
(REF: 1807)
7.2 Data programming.
Probe data.
·Tp· Number of the tool that identifies the probe.
Number of the tool used to define the probe in the tool table. Optional parameter, if not defined
or set to 0, use the probe that is in the spindle when executing the cycle.
·Dp· Number of the tool offset that identifies the probe.
Offset associated with the probe, used to execute the cycle.
Probing movement.
·X Y Z· Probe position to execute the cycle.
The part centering cycle is executed in the active plane.

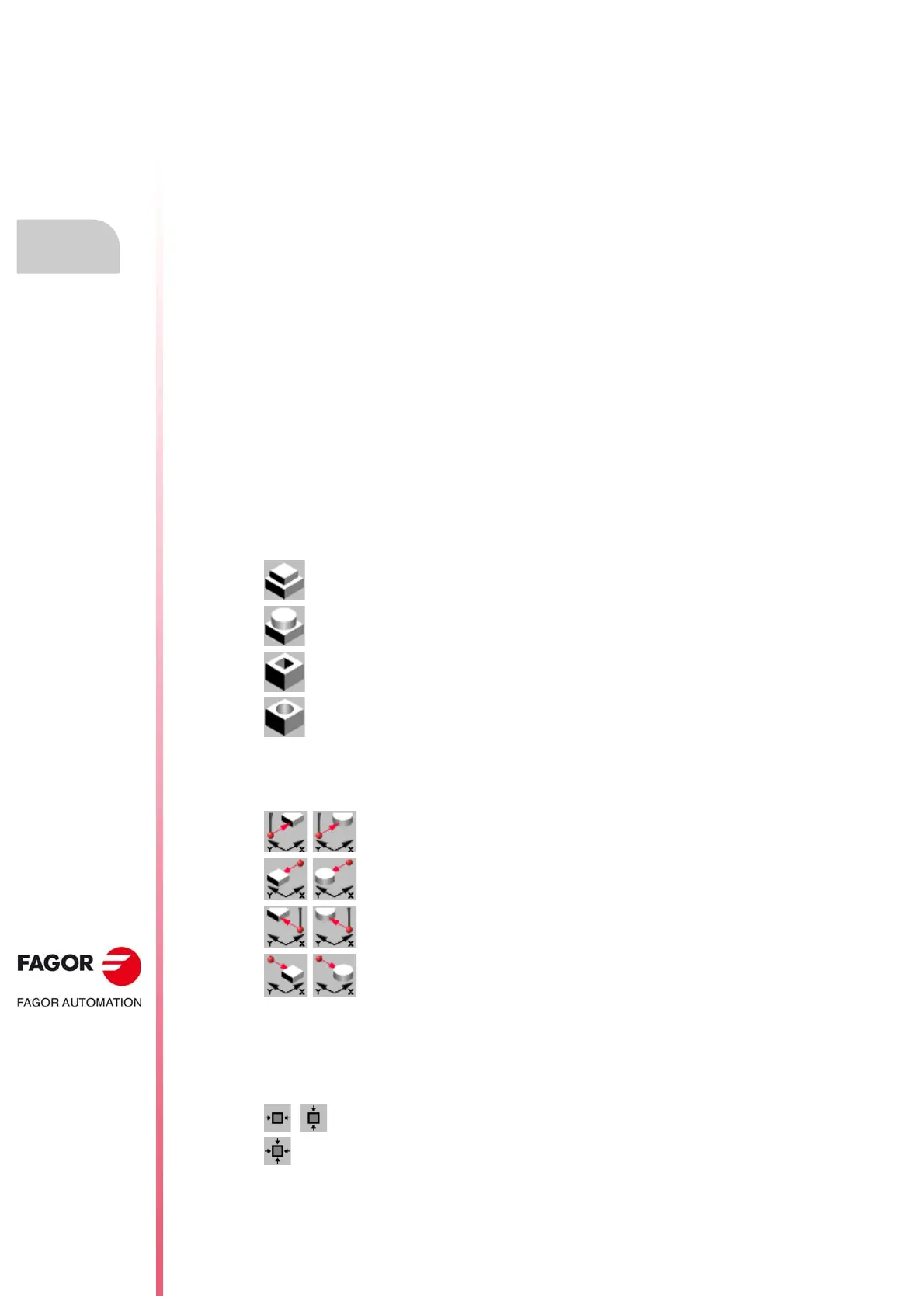

·icon· Geometry of the part to be centered.
This parameter indicates the type of part/pocket to be centered.
·icon· Axis and direction of the first probing movement.
This parameter sets the axis on which the fist probing movement will take place.
·icon· Center the part/pocket on one or two axes with one or two probings on the
first side.
This parameter indicates on how many axes the part is centered and the number of probing
movements to carry out on the first side.
Xm Probe position along the abscissa axis
Ym Probe position along the ordinate axis.
Zm Probe position along the axis perpendicular to the plane.
Rectangular part centering.
Circular part centering.
Rectangular pocket centering.
Circular pocket centering.
The probe moves in the positive direction of the X axis.
The probe moves in the negative direction of the X axis.
The probe moves in the positive direction of the Y axis.
The probe moves in the negative direction of the Y axis.
Rectangular part. Center the part on one axis.
Rectangular part. Center the part on both axes, with one probing on the first side.
