Operating manual.
CNC 8060
CNC 8065
8.
EDISIMU MODE (EDITING AND SIMULATION)
Statistics window
·192·
(REF: 1807)
8.9 Statistics window
This window offers an estimate the total program execution time at 100% of the programmed
feedrate and the machining time for each tool. For this execution time estimate, the CNC
analyzes the following.
• The machining and positioning time for each tool used in the program.
• The number of "M" functions that are executed.
• The number of tool changes performed.

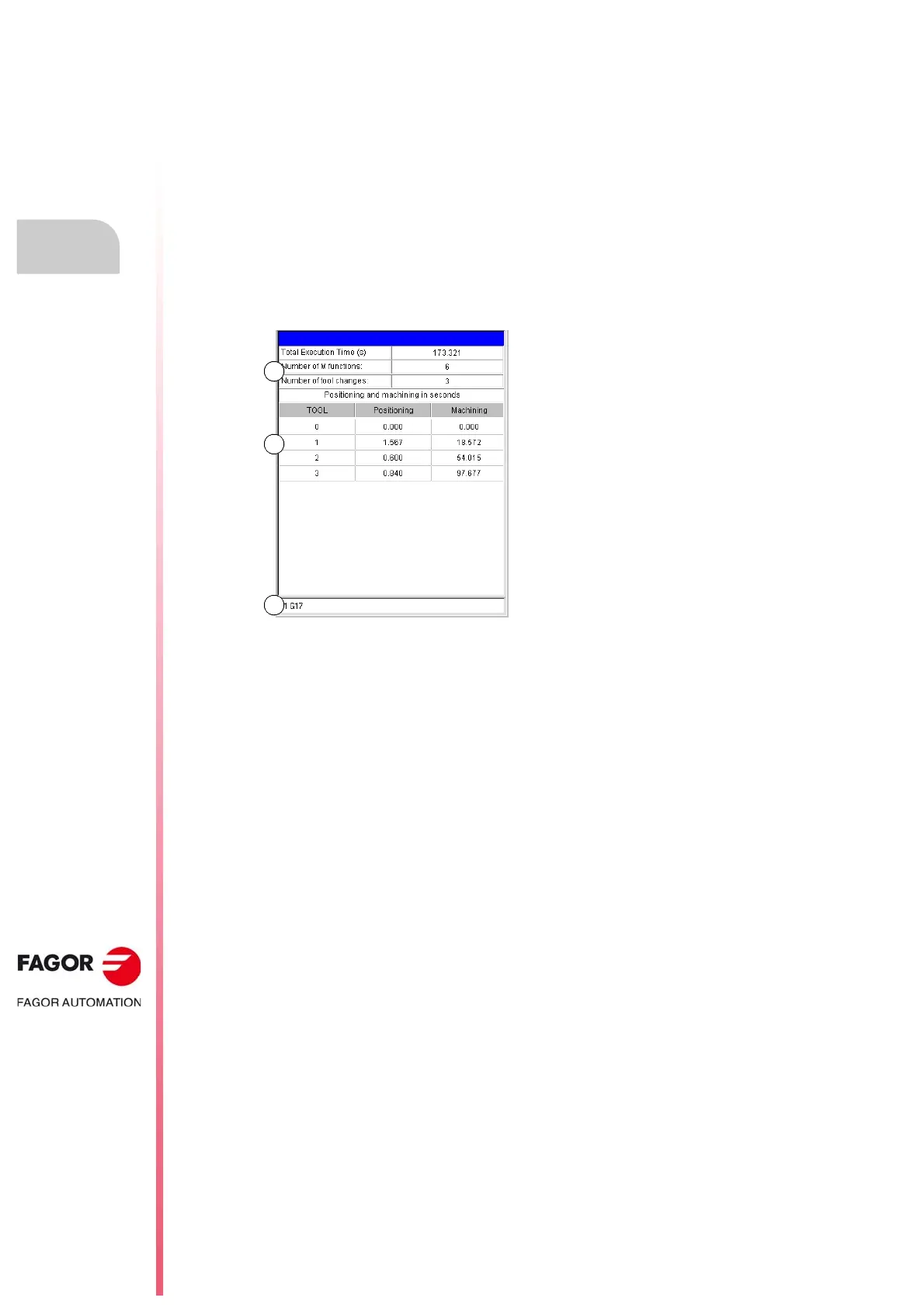

Description of the statistics window
This statistics window shows the following information:
A General information.
It shows a time estimate of program execution at 100% of the programmed feedrate, the
number of "M" functions executed and the number of tool changes made.
B Machining time for each tool.
It shows a list of the tools used in the program indicating the machining time for each
tool and the total positioning time.
C "G" functions active during simulation.
