Operating manual.
CNC 8060
CNC 8065
DDSSETUP
23.
–Information– service
·443·
(REF: 1807)

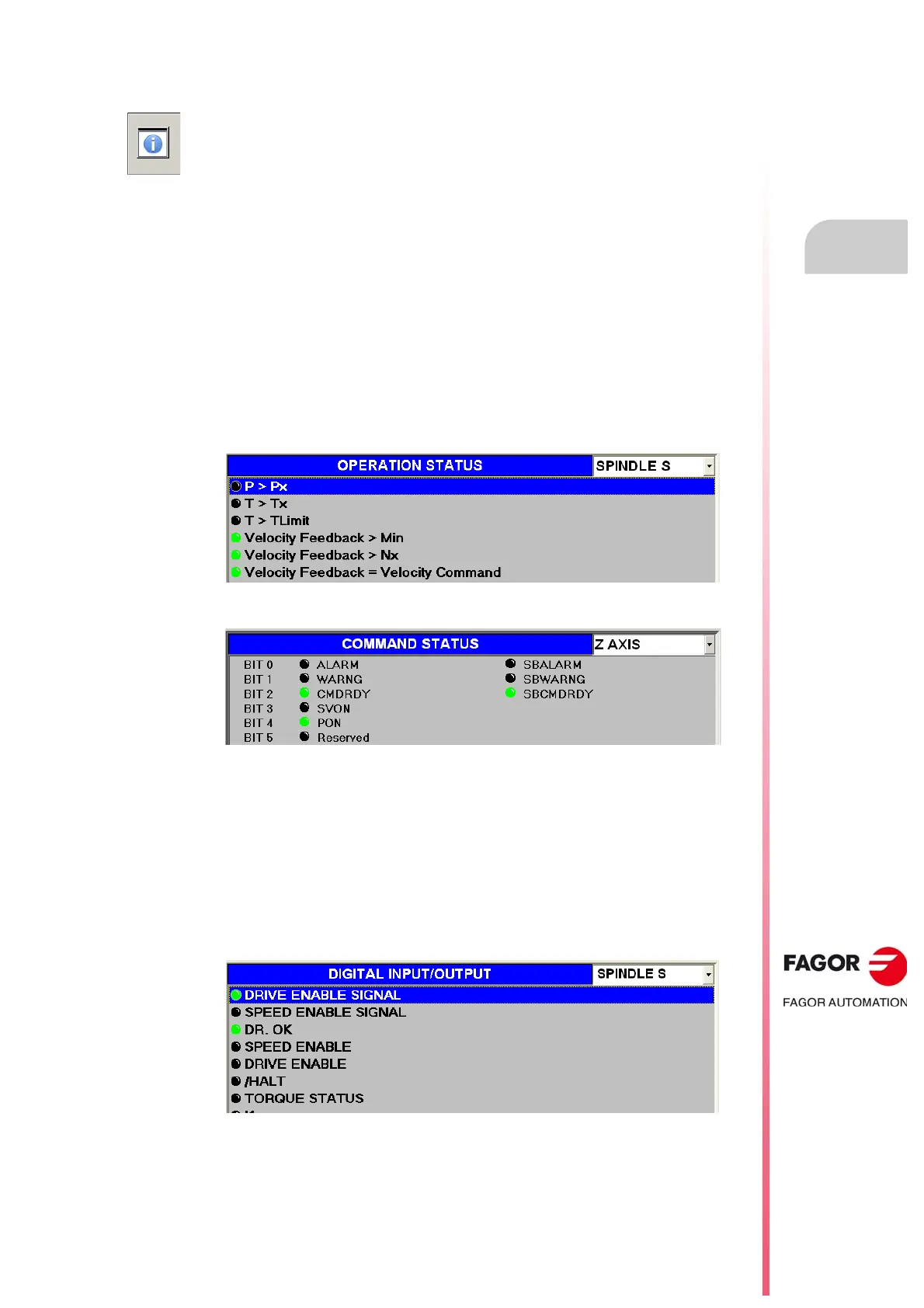

23.7 –Information– service
Select the option to monitor on the horizontal softkey menu. In either case, an LED shows
the status of each operation; green if the operation is active and black if it is inactive.
Monitor the drive status.
The "Operation status" softkey of the horizontal menu gives access to this option.
This screen monitors the status of the operation being carried out at the drive. The drive
whose operations are to be monitored is selected at the top of the window. There is a led
for each operation and it shows the status of the operation at the drive; green if the operation
is active and black if it is inactive.
Sercos drive status.
Status of a Mechatrolink device.
Monitor the status of the inputs and outputs.
The "Digital I/O" softkey of the horizontal menu gives access to this option.
This screen monitors the status of the digital inputs and outputs of the drive. The drive whose
digital I/O's are to be monitored is selected at the top of the window. There is a led for each
digital input and output of the drive showing the status of the operation at the drive; green
if the operation is active and black if it is inactive.
Status of the inputs and outputs of a Sercos drive.
This service monitors two types of information, the drive status and the status of its inputs
and outputs. For Mechatrolink, only the inputs and outputs of the servos can be monitored.
The top of the window shows the list of the available devices. The command line is located
at the bottom of the window. See
"23.9 Command line." on page 446.
