GRAPHICS HD (·M· MODEL).
13.1 Graphic environment.
High definition solid 3D graphics for the execution and simulation of part-programs and
canned cycles of the editor. During machining, the HD graphics display the tool removing
the material from the part in real time, allowing for the condition of the part to be seen at all
times. HD graphics can display up to 4 views of the part, where each can be rotated, zoomed
in or zoomed out. Measurements can also be made on the part and even sections on the
piece from any angle.
HD graphics and standard Fagor graphics.

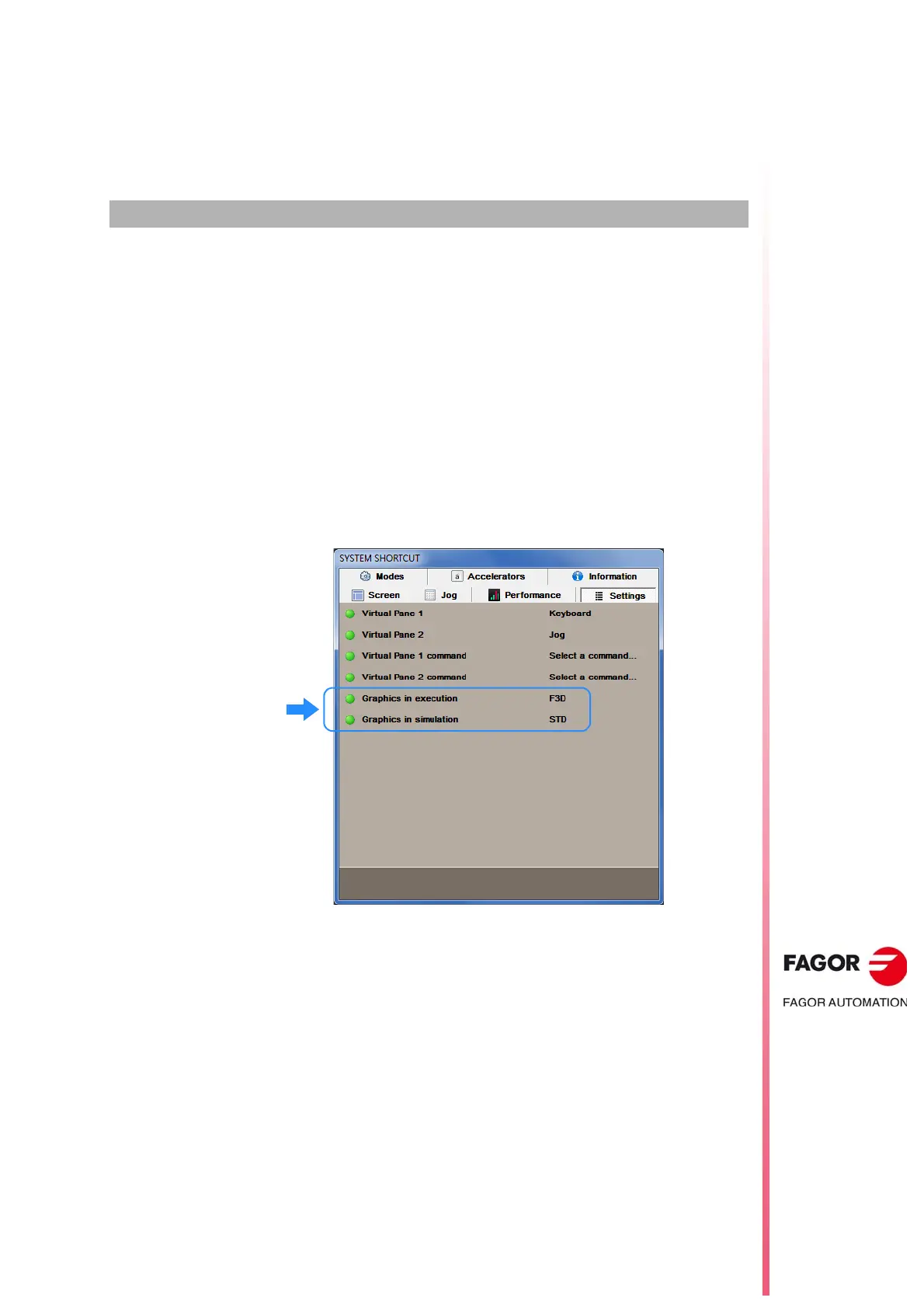

Using active HD graphics, the standard Fagor graphics can be accessed through the task
window [CTRL] + [A], "Settings" tab.
