Operating manual.
CNC 8060
CNC 8065
EDISIMU MODE (EDITING AND SIMULATION)
8.
Working in the editing window.
·181·
(REF: 1807)
8.4.14 Geometric-help editor.
The geometric-help editor may be accessed from the softkey menu to edit a new one, or
selecting one of the program helps of the program and pressing the [RECALL] key.
Geometric helps programmed directly in ISO code can also be recalled by pressing the
[RECALL] key to check the programmed parameters.
Once the help has been defined, press [ESC] to quit the editor. The softkey menu will show
the "insert geometric help" softkey to insert the help into the program. The block for the
defined geometric help is inserted after the block where the cursor is.

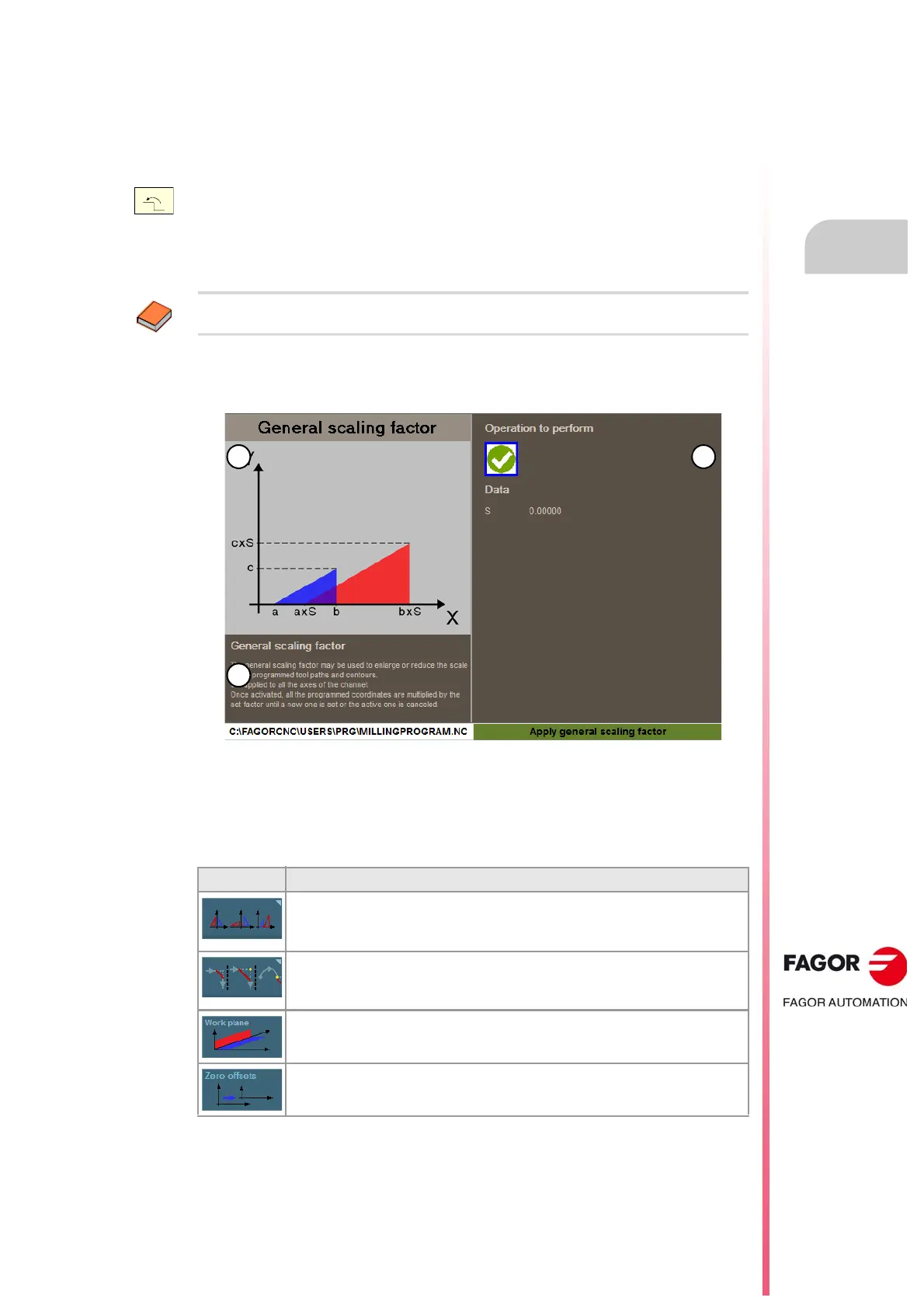

Description of the screen and softkey menu.
A Help graphics.
B Short explanation on how to program the geometric help.
C Parameters to define the machining operation.
Horizontal softkey menu.
The softkey menu of the geometric-help editor shows the various programmable helps. To
return to the main menu, press the [BACK] key.
For further information on how to program geometric help, refer to the programming manual.
Softkey. Meaning.
Scaling factor.
Mirror image.
Rotate the coordinate system.
Corner chamfering and rounding.
Tangential entry and exit.
Square, semi-rounded or rounded corner.
Plane change.
Zero offset and preset.
